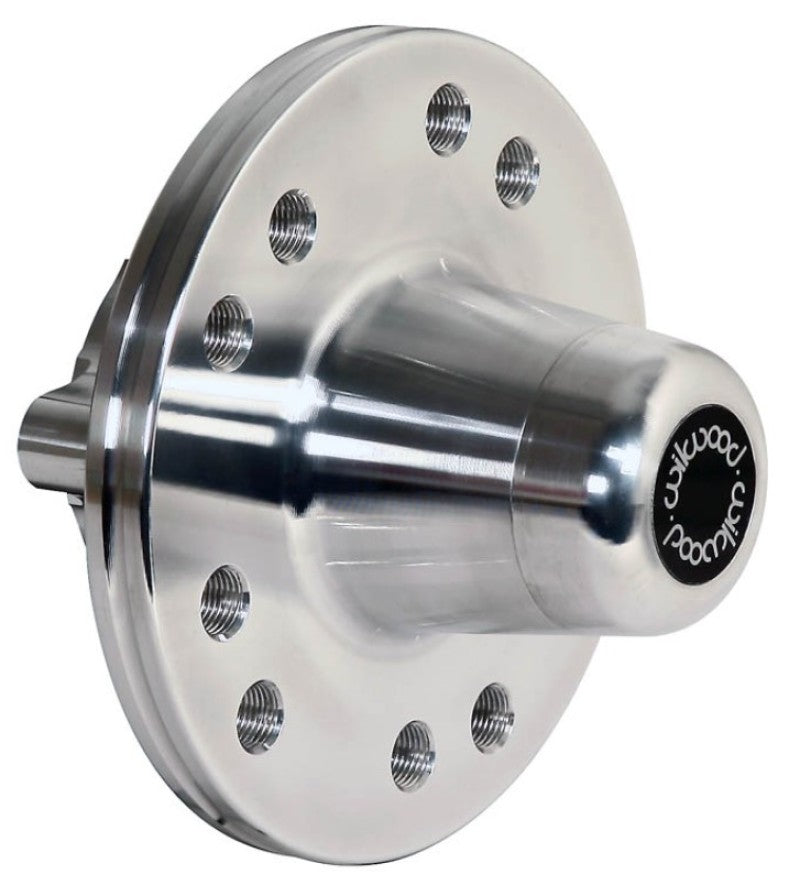

Wilwood Hub-Vented Rotor, Mopar, 5x4.00/4.50
Hub - Vented Rotor Offset
Forged Billet Aluminum Vented Rotor Offset Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with intermediate adapter plates, but can also be used with aluminum mounting hats for custom applications. CDP (Chrysler/Dodge/Plymouth) hubs have 5 x 4.00"/5 x 4.50" or 5 x 4.50"/5 x 4.75" wheel lug patterns depending on part number. Hubs include bearing races and screw-on aluminum caps.
Specifications
| Material & Finish | |
|---|---|
| Material: | Aluminum |
| Finish: | Bare |
| Weight (lbs): | 3.3 |
| Rotor Compatibility | |
| Rotor Mount Bolt Circle (in): | 5 x 3.88 |
| Rotor Offset Type: | Vented |
| Rotor Offset Dimension (in): | 0.81 |
| Mount Type & Dimensions | |
|---|---|
| Mount Type: | Adapter |
| Adapter Bolt Circle(s) 6-Bolt Type: | 6 x 6.25 |
| 8-Bolt Type: | 8 x 7.00 |
| Hub Bolt Circles | |
|---|---|
| Bolt Circle 1 (in): | 5 x 4.00 |
| Bolt Circle 2 (in): | 5 x 4.50 |
| Hub Stud Diameters | |
| Stud Dia 1 (in): | 1/2-20 |
| Stud Dia 2 (in): | 1/2-20 |
| Hub Dimensions (in) | |||
|---|---|---|---|
| Dim A: | 1.145 | Dim N: | 1.95 |
| Dim D: | 2.33 | Dim P: | 3.24 |
| Dim H: | 1.51 | Dim Q: | 0.38 |
| Dim M: | 2.97 | ||
