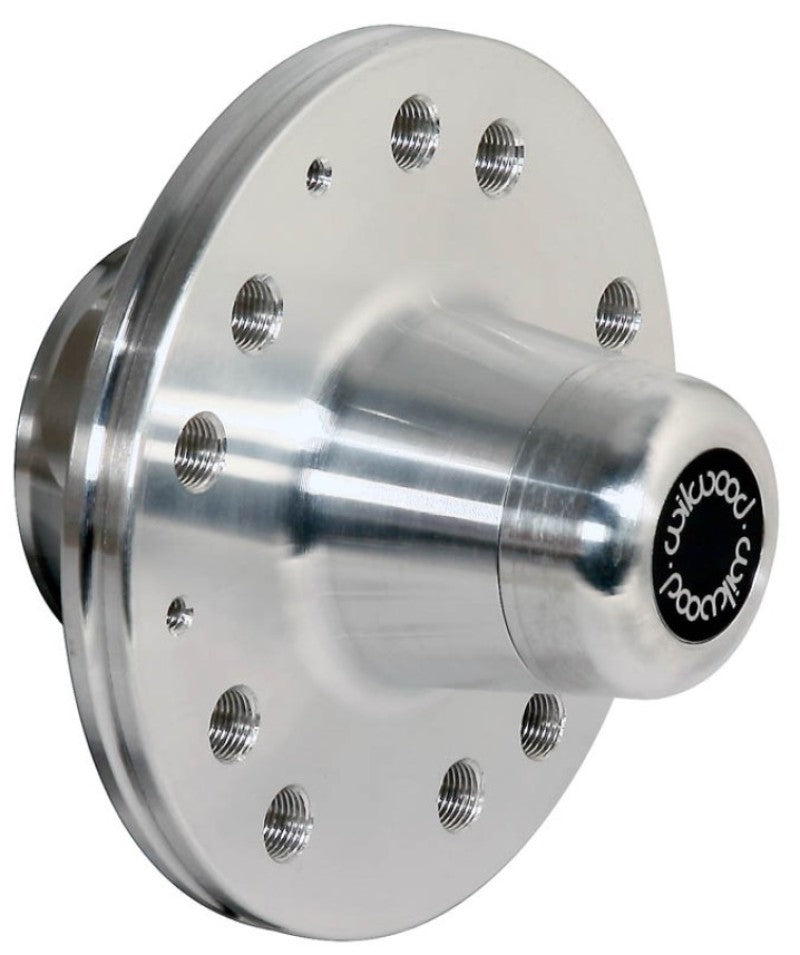

Wilwood Hub-Hat Mount,Vented Rotor,Mopar,5x4.50/4.75 *Discontinued

Hub - Hat Mount

Forged Billet Hat Mount Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with used with aluminum mounting hats, CDP (Chrysler/Dodge/Plymouth) Hat Mount hubs are double drilled with a 5 x 4.50"/5 x 4.75" wheel lug pattern. Hubs include bearing races and screw-on aluminum caps.

Specifications

Material: Aluminum

Finish: Bare

Weight (lbs): 3.3

Mount Type: Hat

Bolt Circle 1 (in): 5 x 4.50

Bolt Circle 2 (in): 5 x 4.75

Stud Dia 1 (in): 1/2-20

Stud Dia 2 (in): 1/2-20

Dim N: 1.89

Dim D: 2.33

Dim P: 3.18

Dim H: 2.05

Dim Q: 0.27

Dim M: 3.71
