Read the shipping policyKart Master Cylinder

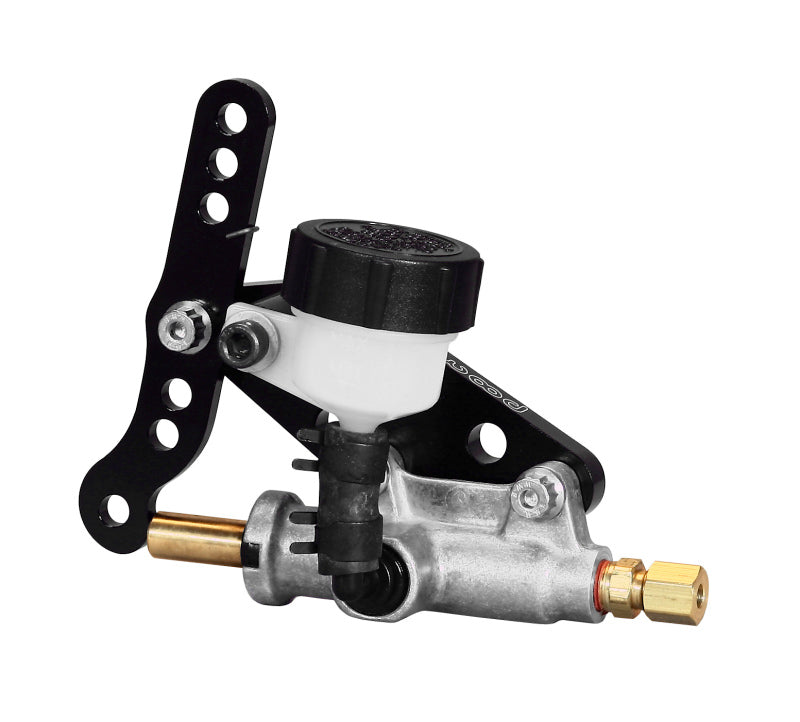

This super lightweight (only .55 pounds) 1/2" bore aluminum master cylinder designed specifically for Kart and Jr. Dragster racing applications incorporates an adjustable lever ratio with a remote mount clear fluid reservoir for easy monitoring. The assembly comes ready to install and includes billet bracket, lockwired drilled hardware and fluid line fitting. The unit is best utilized in conjunction with Wilwood's Kart / Jr. Dragster caliper.
Specifications
| Master Cylinder Dimensions | |
|---|---|
| Bore Size: | 1/2" |
| Area (in²): | 0.18 |
| Stroke: | 0.7 |
| Volume (cu in): | 0.12 |
| Overall Length(in): | 5.04" |
| Inlet Fit (in): | 1/4" Hose |
| Outlet Size 1 (in): | 1/8-27 NPT |
| Outlet Fit 1 (in): | 3/16 Compression |
| Master Cylinder Description | |
| Type: | Single Outlet |
| Outlets: | 1 |
| Material: | Aluminum / Plastic |
| Finish: | Blue Anodize |
| Reservoir | |
| Res Type: | Remote |
| Res Size (oz): | .4 |
| Res Size(cu in): | .7 |
