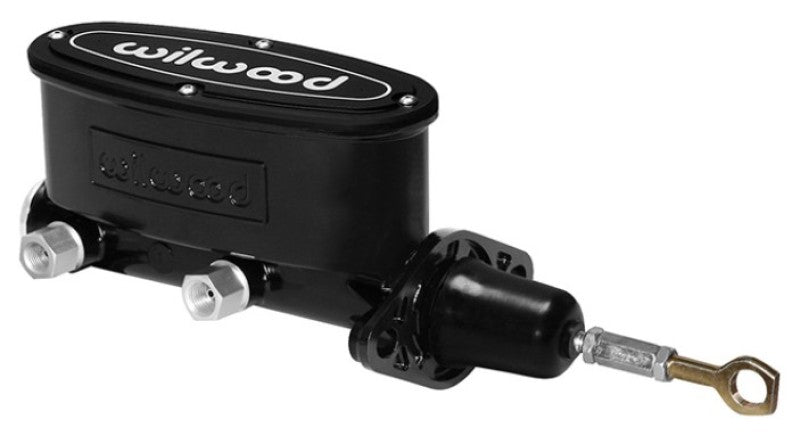

Wilwood High Volume Tandem M/C-15/16" Bore,Black-W/Pushrod-Early Mustang
Aluminum Tandem Master for Classic Mustang
Wilwood's Tandem Aluminum Master Cylinder for Mustangs comes with the correct pushrod; a 15/16" bore, and is available in 3 finishes; plain, ball burnished, and black e-coat. These master cylinders are designed primarily for manual applications and include the correct pushrod for the factory 64-72 brake pedal. They're designed for mount flanges from 3.22" to 3.40", which match the 64-72 factory manual master cylinder mount, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10" with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer a combination proportioning valve kit, which includes brackets and stainless lines specifically for use with this master cylinder, see PN 260-13190, or 220-13189 for retrofit kit.
Specifications
| Bore Size: | 15/16" |
| Area (in²): | 0.69 |
| Stroke: | 1.1 |
| Type: | Tandem Outlet |
| Outlets: | 2 |
| Material: | Aluminum |
| Finish: | Black E-coat |
| Res Type: | Integral |
| Res Size (oz): | 8.0 / 4.8 |
| Res Size(cu in): | 14.4 / 8.7 |
