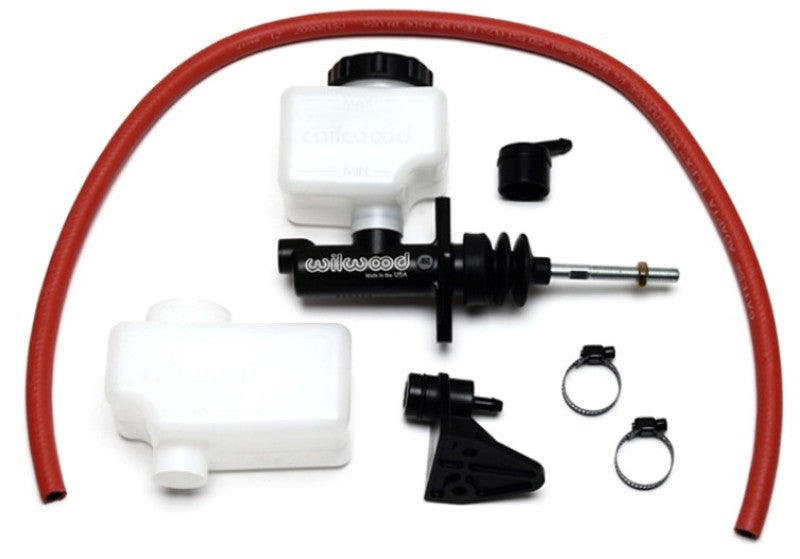

Wilwood Short Remote M/C Kit 1-1/8" Bore, 3/8"-24 Banjo Outlet
Wilwood Short Remote M/C Kit 1-1/8" Bore, 3/8"-24 Banjo Outlet
Low stock: 10 left
Emissions
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping
Compact Remote Flange Mt Master Cyl-Banjo Outlet
'This new version of Wilwood's Compact Combination Master Cylinders now features a 3/8-24 banjo outlet. Designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra-short 3.37"compact body provides 2.16" of additional clearance between the mounting flange and the fluid outlet. A full 1.12" of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 3/8-24 fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contains 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.
Specifications
| Bore Size: | 1-1/8" |
| Area (in²): | 0.97 |
| Stroke: | 1.12 |
| Volume (cu in): | 1.01 |
| Type: | Single Outlet |
| Outlets: | 1 |
| Material: | Aluminum/Plastic |
| Finish: | Black E-coat |
| Res Type: | Remote |
| Res Size (oz): | 10.0 or 7.0 |
| Res Size(cu in): | 18.0 or 12.6 |
