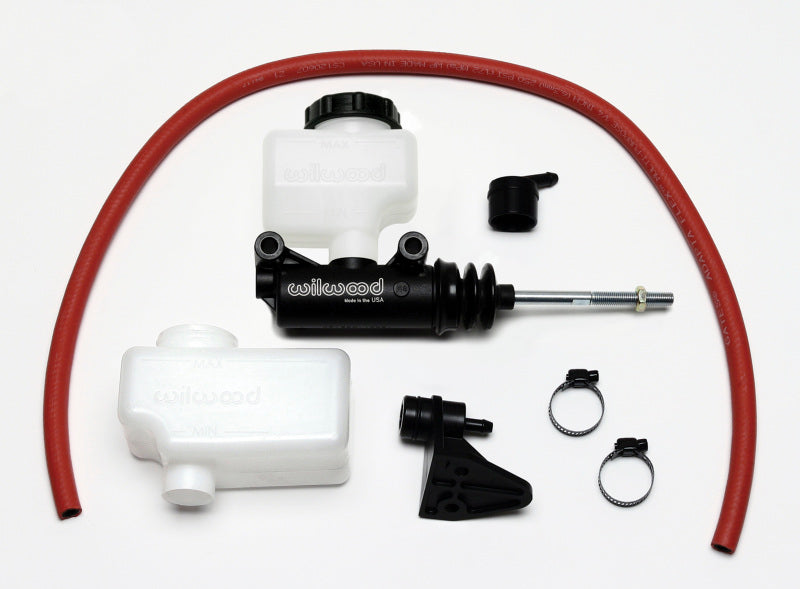

• Wilwood Compact Remote Side Mount Master Cylinder 260-12386 Photo - Primary
1 1
Wilwood Authorized Dealer

Wilwood Compact Remote Side Mount Master Cylinder

Wilwood Compact Remote Side Mount Master Cylinder

sku: 0BG9R | mpn: 260-12386
$137.54
$137.54
Sale Sold out

Out of stock

Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.

Need this part?

This item is currently unavailable. Ask us about availability or help finding a suitable replacement.

Ask about availability or fitment

Year, make, model and engine help us check fitment.

We'll reply to your inquiry by email. This is not an automatic restock alert.

Shipping & returns

This selection is unavailable. Ask us to confirm availability and timing.

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy
Return policy

Wilwood's Compact Combination (Side Mount) Master Cylinders have been designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra short 3.37"compact body provides 2.16" of additional clearance between the mounting boss and the fluid outlet. The new body design incorporates integral side mounting lugs with a 3.00" center to distance and no traditional mounting flange, which further enhances its ability to mount in tight spaces. A full 1.12" of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 1/8" NPT fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contain 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.

Master Cylinder Dimensions

  • Bore Size: 13/16"
  • Area (in): 0.52
  • Stroke : 1.12
  • Volume (cu in) : 0.58

Master Cylinder Description

  • Type : Single Outlet
  • Outlets : 1
  • Materials : Aluminum/Plastic
  • Finish : Black E-coat

RESERVOIR

  • Res Type : Remote
  • Res Size (oz) : 10.0 or 7.0
  • Res Size (cu in) : 18.0 or 12.6

SPECIFICATION

  • Materials : Aluminum/Plastic
  • Bore Size: 7/8"
  • Finish : Black E-coat

ADITIONAL DIMENTION

  • Overall Length(in): 8.84"
  • Flange to End Length (in): 3.37"
  • Inlet Size (in): .87" or 11/16-20
  • Inlet Fit (in): 1/4" Hose
  • HoseOutlet Size 1 (in): 3/8-27 NPT
