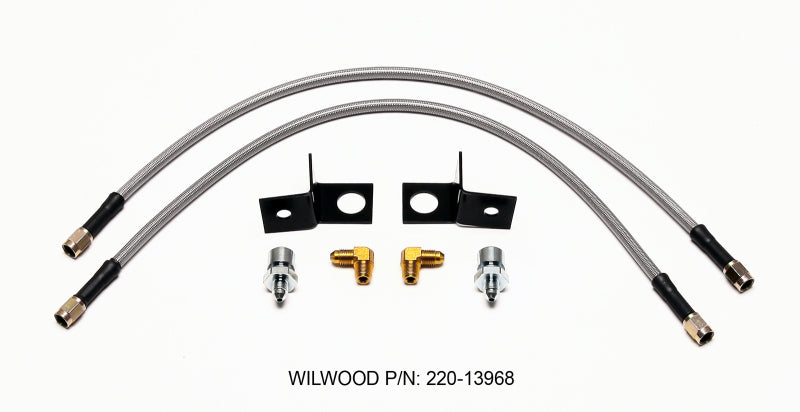

Wilwood Flexline Kit,Rear 07-Up Jeep JK

Wilwood’s stainless steel braided Flexline Kits are manufactured to high quality standards and are available in various -3 styles. These premium grade flexline kits have been designed for application specific kits. They are available as an optional item when ordering your disc brake kits and include all the required fittings. Wilwood highly recommends using these top quality flexlines as replacement for the OE rubber hoses.

Specifications

Size & Fittings
Length: 20.00
Size: -3
Chassis Fitting Size: -3 to 3/8-24 IF
Inlet Fitting: -3 Female
Inlet Fitting Angle: Straight
Outlet Fitting: -3 Female
Outlet Fitting Angle: Straight
Caliper Fit Angle: 90 Degree
Caliper Fit Thread: 1/8-27 NPT
Weight (lb): 0.95
Qty: Each 1
Qty: per Kit 2

Caliper Fitting
Fitting: 220-13125
Angle: 90 Degree
Thread: 1/8-27 NPT

Chassis Fitting
Fitting: 220-13124
Size: -3 to 3/8-24 IF
