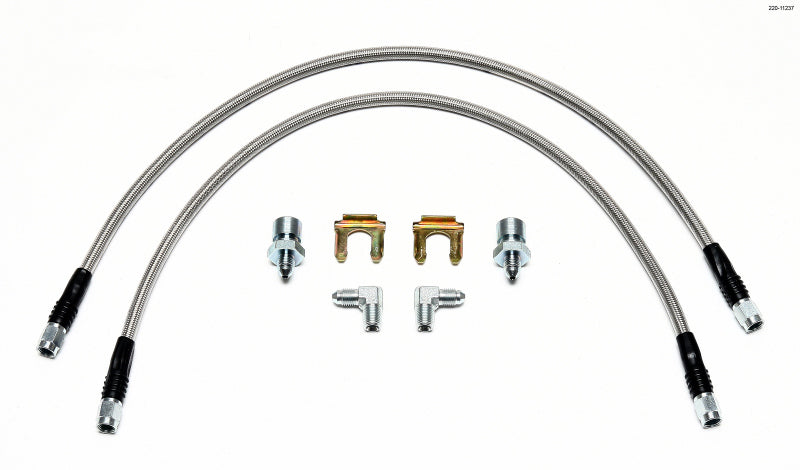

Wilwood Flexline Kit, 22 Inch 3/8-24 to 90 Degree
Flexline Kit
Wilwood's stainless steel braided Flexlines are manufactured to high quality standards and are available in various -3 and -4 styles. These premium grade flexlines are durable and provide "hard line" pedal feel.
| Size & Fittings | |
|---|---|
| Length | 22.00 |
| Size | -3 |
| Chassis Fitting Size | -3 to 3/8-24 IF |
| Inlet Fitting | -3 Female |
| Inlet Fitting Angle | Straight |
| Outlet Fitting | -3 Female |
| Outlet Fitting Angle | Straight |
| Caliper Fit Angle | 90 Degree |
| Caliper Fit Thread | 1/8-27 NPT |
| Additional Info | |
| Weight (lb) | 1 |
| Qty Each | 1 |
| Qty per Kit | 2 |
| Chassis Clip | 300-6416 |
| Line Bracket | |
| Applications |
|---|
| Universal 22" Kit |
| Kit Notes |
FLEXLINE KIT,22in. KIT,3/8-24 TO 90 DEG |
| Caliper Fitting | |
|---|---|
Wilwood Flexline Kit Caliper Fitting | |
| Fitting | 220-13125 |
| Angle | 90 Degree |
| Thread | 1/8-27 NPT |
| Chassis Fitting | |
|---|---|
Wilwood Flexline Kit Chassis Fitting | |
| Fitting | 220-13124 |
| Size | -3 to 3/8-24 IF |
Wilwood Flexline Kit, 22 Inch 3/8-24 to 90 Degree
Sale price$86.64 USD
