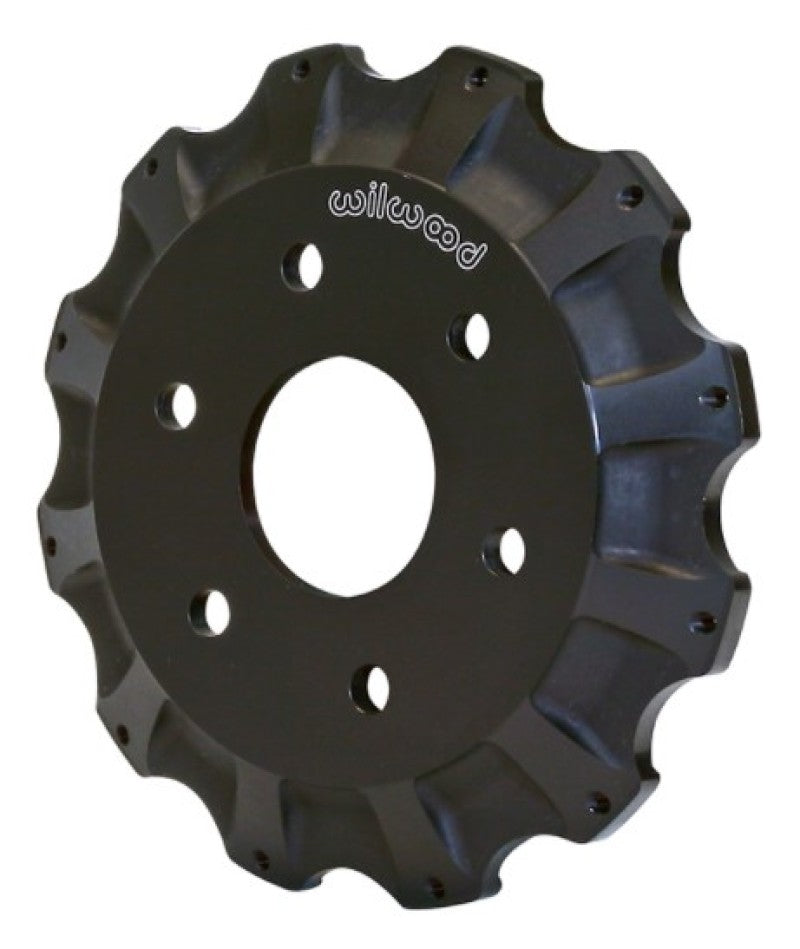

Wilwood Hat-W4A Front , 6 x 5.50 - 12 on 9.19" *Discontinued
Wilwood Hat-W4A Front , 6 x 5.50 - 12 on 9.19" *Discontinued
sku: 025C2 | mpn: 170-9891
Regular price
$470.99
Regular price
$470.99
Sale price
$470.99
Shipping calculated at checkout.
12 in stock
Emissions
This is not an emissions item.
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping
Truck Hat - Standard
Wilwood's Truck hats are precision machined from premium aluminum alloys for high strength and attention to minimized weight. Hats in this category feature threaded rotor mount holes for use with standard through-hole mount rotors. Truck Hats feature strengthening ribs on a flared bell configuration for big rotor brake kits on truck, SUV, and 4WD axles with either 6 or 8 lug configurations.
Truck Hats feature strengthening ribs on a flared bell configuration for big rotor brake kits on truck, SUV, and 4WD axles with either 6 or 8 lug configurations.
Specifications
| Hat Dimensions | |
|---|---|
| Mount Hole Type: | Threaded |
| Rotor Bolt Circle (in): | 12 x 9.19 |
| Hat Offset (in): | 0.81 |
| Center Reg. (in): | 3.09 |
| Rotor Mount Hole Size (in): | 1/4-28 |
| Clearance I.D. (in) : | 8.14 |
| Face Thickness (in) : | 0.45 |
| Hat Stud Diamenter - BC 1 (in): | 0.63 |
| Hat Type | |
| Material: | Aluminum |
| Mount Style: | Fixed Mount |
| Finish: | Black E-Coat |
| Weight (lbs): | 3.2 |
| Bolt Circle Dimensions | |
| Hat Bolt Circle 1: | 6 X 5.50 |
