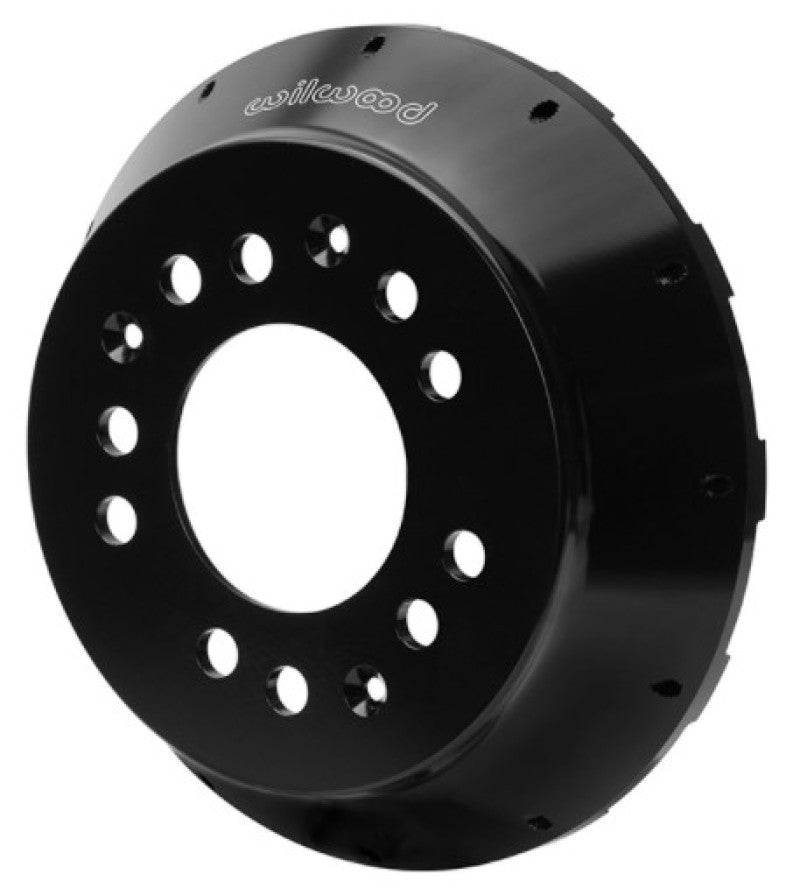

Wilwood Hat-BB Front,2.00" Offset 5 x 4.50/4.75 - 12 On 8.75"

Big Brake Hat - Flared Bell

GT Series Big Brake Flared Bell hats are precision machined from premium aluminum alloys for high strength and attention to minimized weight. Hats in this category feature threaded rotor mount holes for use with standard through-hole mount rotors. Threaded hole hats may also be used with T-Nuts or bobbins designed for use with specially machined slotted hole dynamic mount rotors. When used in conjunction with matched Wilwood rotor hardware kits, GT hats provide solid, reliable performance in the most demanding conditions.Flared Bell Hats are generally used with rotor mount bolt circles of 8.38" and larger. Offsets range from 1.88" to 3.00" for rotor diameters 12.19" and up.

Specification

• Hat Dimensions
  • Mount Hole Type: Threaded
  • Rotor Bolt Circle (in): 12 x 8.75
  • Hat Offset (in): 2
  • Center Reg. (in): 3.06
• Hat Type
  • Material: Aluminum
  • Mount Style: Fixed Mount
  • Finish: Black E-Coat
  • Weight (lbs): 2
• Bolt Circle Dimensions
  • Hat Bolt Circle 1: 5 x 4.50
  • Hat Bolt Circle 2: 5 x 4.75
• Application Info
  • Application Note: Mustang / Camaro Kits
  • Hat Bolt Kit Part #: 230-8008
