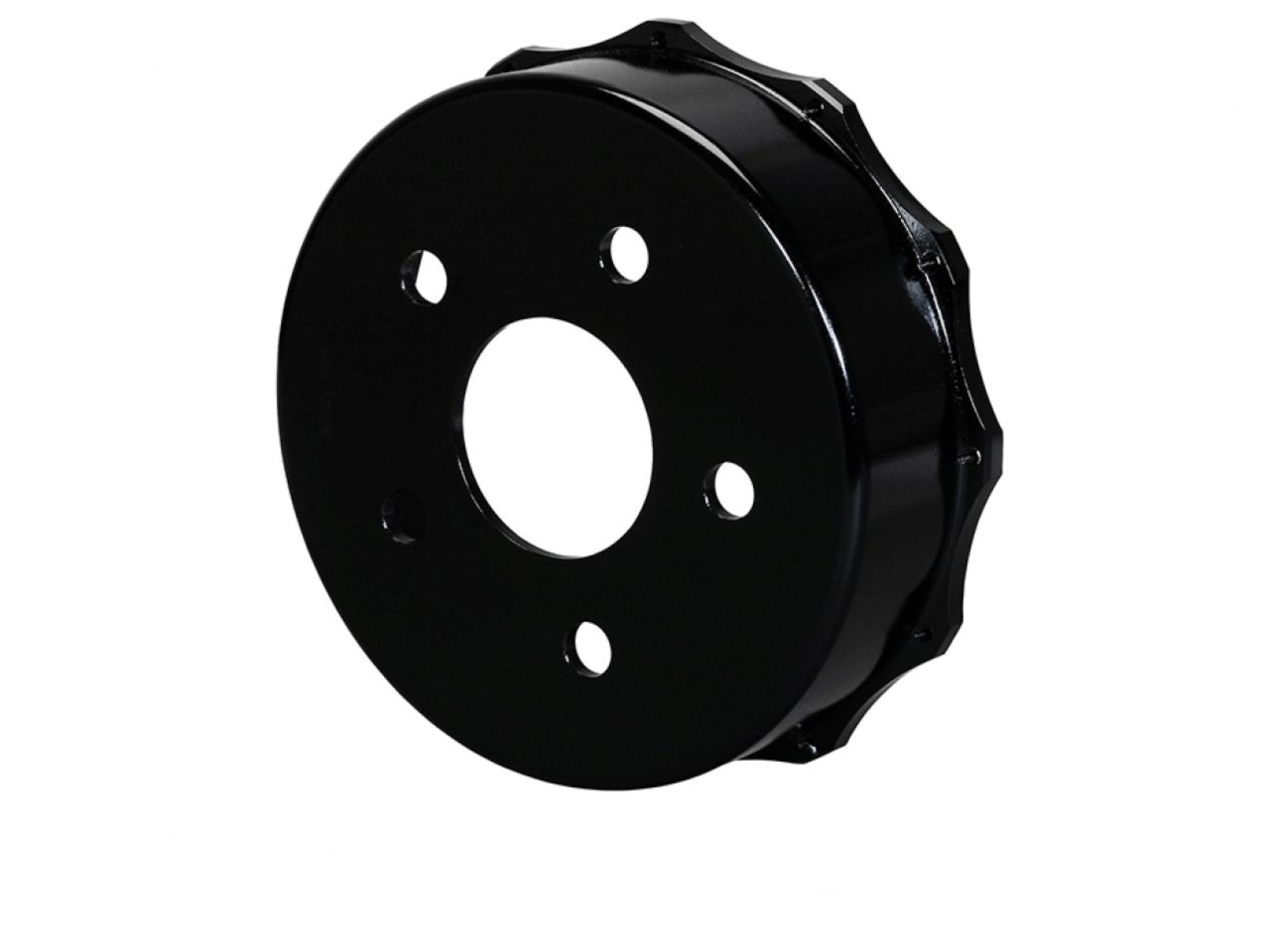

Wilwood Hat,P-Brake,5x5.00 BC,2.201 Offset *Discontinued
Wilwood Hat,P-Brake,5x5.00 BC,2.201 Offset *Discontinued
sku: 10DHJ | mpn: 170-13958
Regular price
$333.26
Regular price
$333.26
Sale price
$333.26
Shipping calculated at checkout.
Low stock: 1 left
Emissions
This is not an emissions item.
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping
Parking Brake Hat - Standard
These premium grade cast iron hats make it possible to use bolt-on rotors on vehicles equipped with OEM internal shoe parking brake assemblies. Each hat is a precision machined, threaded hole design for use in conjunction with through-hole mount rotors. After machining, the hats are electro-coated for corrosion resistance. Used for big rotor brake kits on truck, SUV, and 4WD axles with either 6 or 8 lug configurations.
Specifications
| Hat Dimensions | |
|---|---|
| Mount Hole Type: | Threaded |
| Rotor Bolt Circle (in): | 12 x 8.75 |
| Hat Offset (in): | 2.2 |
| Center Reg. (in): | 2.84 |
| Hat Type | |
| Material: | Iron |
| Mount Style: | Fixed Mount |
| Finish: | Black E-Coat |
| Weight (lbs): | 7.5 |
| Bolt Circle Dimensions | |
| Hat Bolt Circle 1: | 5 x 5.00 |
| Additional Hat Dimensions | |
|---|---|
| Rotor Mount Hole Size (in): | 1/4-28 |
| Shoe I.D. (in): | 8.12 |
| Clearance I.D. (in): | 7.62 |
| Face Thickness (in): | 0.29 |
| Hat Stud Diamenter - BC 1 (in): | 0.66 |
