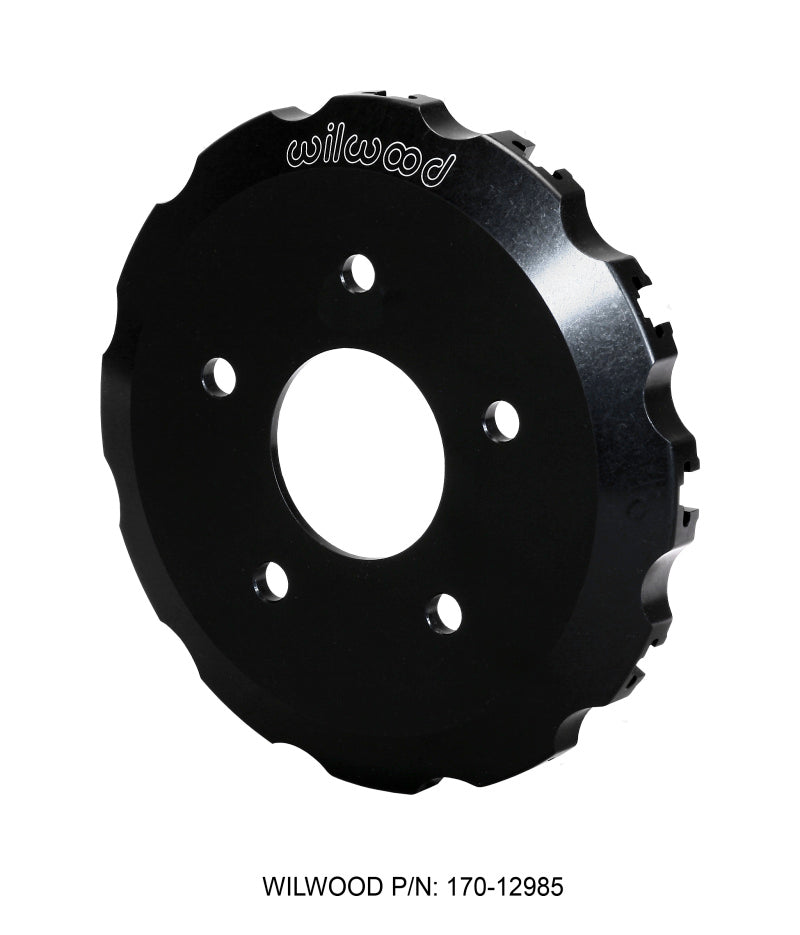

Wilwood Hat-Dynamic Rear,.710" Offset Vette Race 5 x 4.75 - 12 On 8.75"

Wilwood Hat-Dynamic Rear,.710" Offset Vette Race 5 x 4.75 - 12 On 8.75"

sku: 0C26M | mpn: 170-12985
$327.17
$327.17
Sale Sold out

Out of stock

Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.

Need this part?

This item is currently unavailable. Ask us about availability or help finding a suitable replacement.

Ask about availability or fitment

Year, make, model and engine help us check fitment.

We'll reply to your inquiry by email. This is not an automatic restock alert.

Shipping & returns

This selection is unavailable. Ask us to confirm availability and timing.

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy
Return policy

Big Brake Dynamic Hat - Short Offset

GT Series Dynamic Mount Rotor Drag Hats are engineered to withstand the rigors and demands of extreme motorsports competition. Each hat is precision machined from premium grade aluminum offering high strength with low unsprung and rotating weight. Wilwood T-nuts float within the hat and provide true dynamic mounting of a standard through-hole mount rotors in 8 x 7.00" rotor mount patterns. . The wide load bearing load surface of the T-nut and the straight through-hole mount rotors provide the most durable and accurate method of isolating potential pad engagement harmonics and the in-service thermal variations that occur between the hat and the rotor.

GT Series Dynamic Mount Hats are available in a variety of configurations for use with racing hubs, flanged axles, and several OE applications. Straight bell hats are used for the 6.75" and 7.00" rotor mount patterns. Hats for the larger diameter rotor mo


Specification

  • Hat Dimensions
    • Mount Hole Type: T-Nut Slot
    • Rotor Bolt Circle (in): 12 x 8.75
    • Hat Offset (in): 0.71
    • Center Reg. (in): 2.78
  • Hat Type
    • Material: Aluminum
    • Mount Style: Dynamic Mount
    • Finish: Type III Anodize
    • Weight (lbs): 2.44
  • Bolt Circle Dimensions
    • Hat Bolt Circle 1: 5 x 4.75
  • Application Info
    • Application Note: Corvette Rear
    • Hat Bolt Kit Part # 230-6656
  • Application Note
    • Application Note: Dynamic mount hats are not entended for street use.
