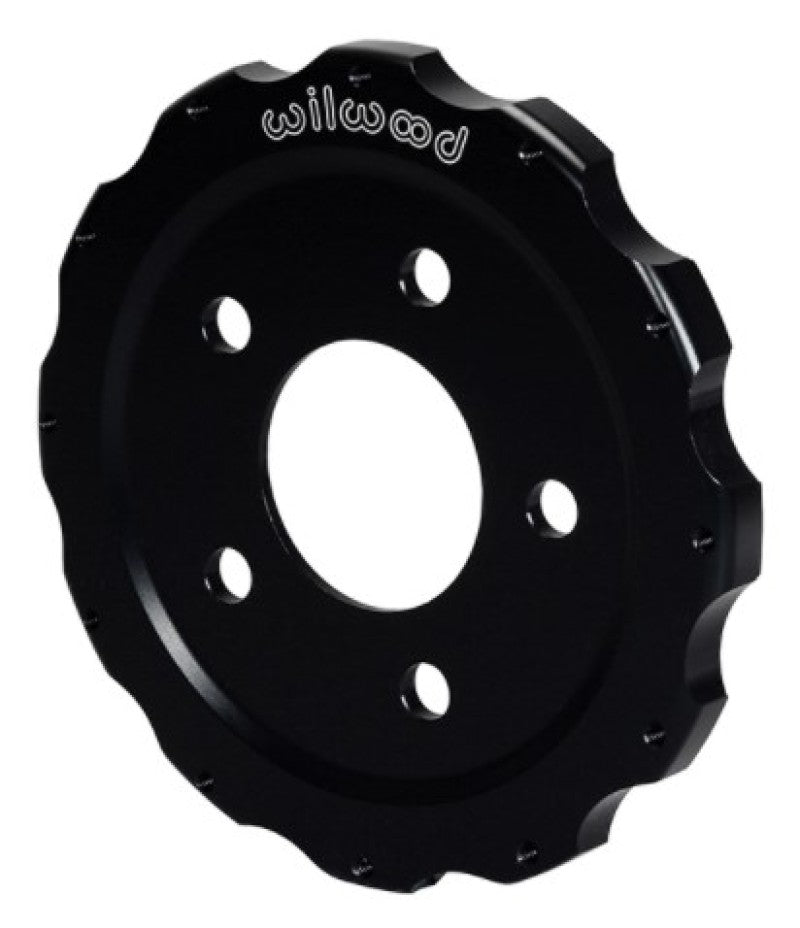

Wilwood Hat-BB Rear (-).090" Offset, 5 x 4.50 - 12 on 8.25"

SKU: 0BG77 | MPN:  170-12471
Usually Ships in 10-14 Days
Sale price$293.91 USD



Big Brake Hat - Short Offset 170-12471

Big Brake Hat - Short Offset - Product Description

GT Series Big Brake Short Offset hats are precision machined from premium aluminum alloys for high strength and attention to minimized weight. Hats in this category feature threaded rotor mount holes for use with standard through-hole mount rotors. Threaded hole hats may also be used with T-Nuts or bobbins designed for use with specially machined slotted hole dynamic mount rotors. When used in conjunction with matched Wilwood rotor hardware kits, GT hats provide solid, reliable performance in the most demanding conditions. Short Offset Hats are for narrow space applications with offsets often less than 1.00". They are available for most rotor bolt patterns in a variety of four and five lug wheel patterns.


Shallow Offset Hats are for narrow space applications with offsets often less than 1.00". They are available for most rotor bolt patterns in a variety of four and five lug wheel patterns.

Hat Dimensions
Mount Hole Type Threaded
Rotor Bolt Circle (in) 12 x 8.75
Hat Offset (in) -0.09
Center Reg. (in) 3.06
Hat Type
Material Aluminum
Mount Style Fixed Mount
Finish Black E-Coat
Weight (lbs) 1.64
Bolt Circle Dimensions
Hat Bolt Circle 1 5 x 4.50
Hat Bolt Circle 2
Hat Bolt Circle 3
Application Info
Application Note
Hat Bolt Kit Part # 230-8008
Additional Hat Dimensions
Rotor Mount Hole Size (in) 1/4-20
Shoe I.D. (in)
Clearance I.D. (in) 8.25
Face Thickness (in) 0.31
Hat Stud Diamenter - BC 1 (in) 0.58
Hat Stud Diamenter - BC 2 (in) 0
Hat Stud Diamenter - BC 3 (in) 0

Additional Notes
3.06 " diameter register with counterbore for register ring.
