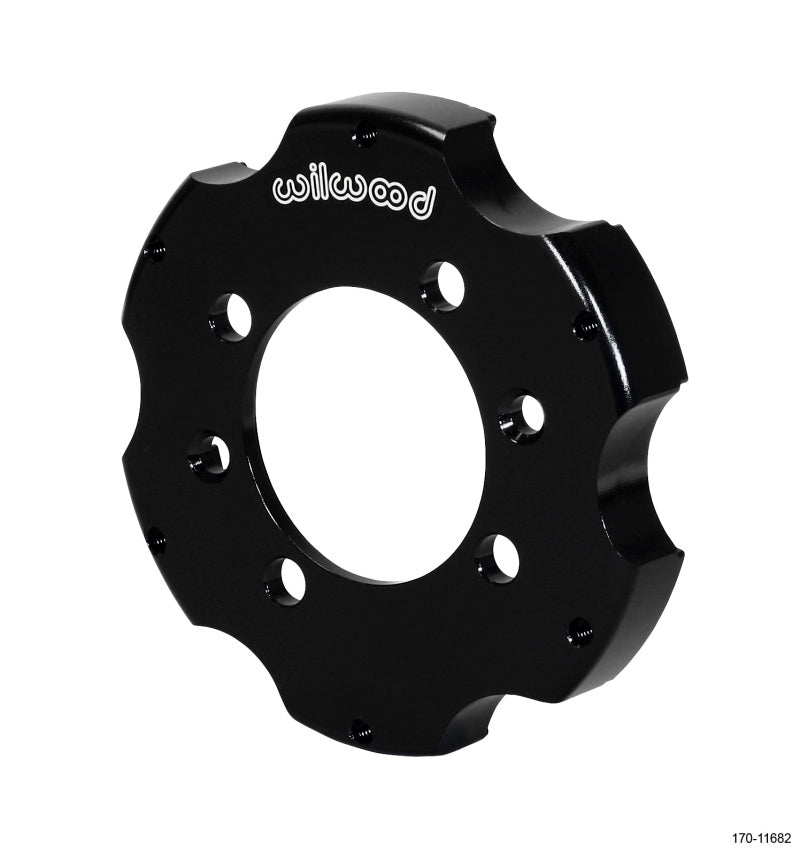

Wilwood Hat-BB Front,..750" Offset 4 x 3.93 - 6 on 6.25" *Discontinued

Big Brake Hat - Short Offset

GT Series Big Brake Short Offset hats are precision machined from premium aluminum alloys for high strength and attention to minimized weight. Hats in this category feature threaded rotor mount holes for use with standard through-hole mount rotors. Threaded hole hats may also be used with T-Nuts or bobbins designed for use with specially machined slotted hole dynamic mount rotors. When used in conjunction with matched Wilwood rotor hardware kits, GT hats provide solid, reliable performance in the most demanding conditions. Short Offset Hats are for narrow space applications with offsets often less than 1.00". They are available for most rotor bolt patterns in a variety of four and five lug wheel patterns.

Shallow Offset Hats are for narrow space applications with offsets often less than 1.00". They are available for most rotor bolt patterns in a variety of four and five lug wheel patterns.

Hat Dimensions:

Mount Hole Type: Threaded

Rotor Bolt Circle (in): 6 x 6.25

Hat Offset (in): 0.75

Center Reg. (in): 3.06

Hat Type

Material: Aluminum

Mount Style: Fixed Mount

Finish: Black E-Coat

Weight (lbs): 1.28

Bolt Circle Dimensions

Hat Bolt Circle 1: 4 x 3.93

Application Info

Application Note: Mazda Miata

Additional Hat Dimensions

Rotor Mount Hole Size (in): 5/16-18

Clearance I.D. (in): 5.2

Face Thickness (in): 0.32

Hat Stud Diamenter - BC 1 (in): 0.5
