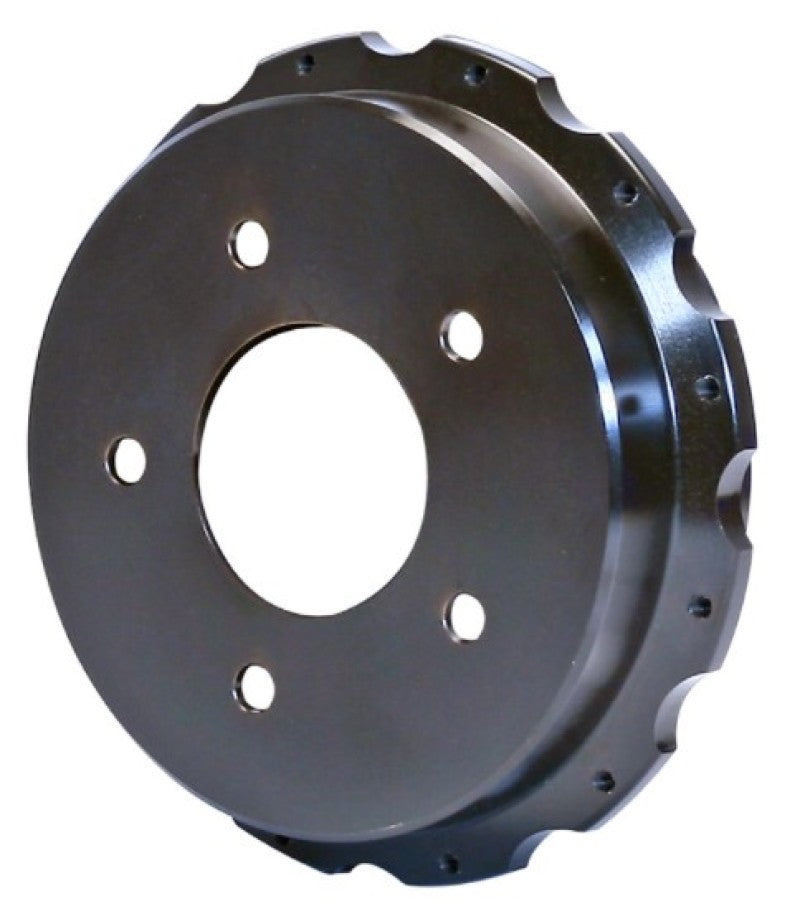

Wilwood Hat-Park Brake, .732" Offset, 5 x 4.72 - 12 on 8.75"
These premium grade cast iron hats make it possible to use bolt-on rotors on vehicles equipped with internal shoe parking brake assemblies. Each hat is a precision machined, threaded hole design for use in conjunction with through-hole mount rotors. After machining, the hats are electro-coated for corrosion resistance.
| Hat Dimensions | |
|---|---|
| Mount Hole Type | Threaded |
| Rotor Bolt Circle (in) | 12 x 8.75 |
| Hat Offset (in) | 0.73 |
| Center Reg. (in) | 3.06 |
| Hat Type | |
| Material | Iron |
| Mount Style | Fixed Mount |
| Finish | Black E-Coat |
| Weight (lbs) | 5.7 |
| Bolt Circle Dimensions | |
| Hat Bolt Circle 1 | 5 X 4.75 |
| Hat Bolt Circle 2 | 5 X 4.72 |
| Hat Bolt Circle 3 | 5 X 4.50 |
| UPC Number | |
| UPC | 889545041552 |
| Application Info | |
| Application Note | 2010 Camaro Rear |
| Hat Bolt Kit Part # | 230-8217 |
| Application Note | |
| Application Note | |
| Additional Hat Dimensions | |
|---|---|
| Rotor Mount Hole Size (in) | 1/4-28 |
| Shoe I.D. (in) | 7.91 |
| Clearance I.D. (in) | 6.26 |
| Face Thickness (in) | 0.25 |
| Hat Stud Diamenter - BC 1 (in) | 0.52 |
| Hat Stud Diamenter - BC 2 (in) | 0.64 |
| Hat Stud Diamenter - BC 3 (in) | 0.52 |
Additional Notes
3.06 " diameter register with counterbore for register ring.
Wilwood Hat-Park Brake, .732" Offset, 5 x 4.72 - 12 on 8.75"
Sale price$207.74 USD
Regular price$224.36 USD
