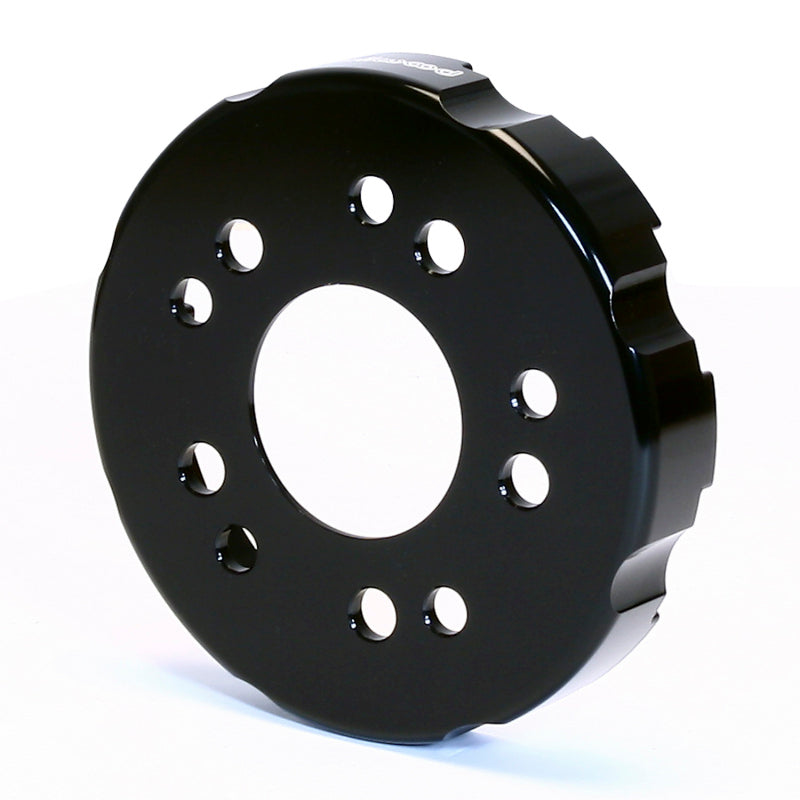

Wilwood Hat-Drag Front, .1.63" Offset, 5 x 4.50/4.75 - 8 on 7.00" *Discontinued
Wilwood Hat-Drag Front, .1.63" Offset, 5 x 4.50/4.75 - 8 on 7.00" *Discontinued
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
25 in stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Shipping & returns
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyDrag Hat - Shallow Offset
GT Series Shallow Offset Drag hats are precision machined from premium aluminum alloys for high strength and attention to minimized weight. Hats in this category feature threaded rotor mount holes for use with standard through-hole mount rotors. Threaded hole hats may also be used with T-Nuts or bobbins designed for use with specially machined slotted hole dynamic mount rotors. When used in conjunction with matched Wilwood rotor hardware kits, GT hats provide solid, reliable performance in the most demanding conditions. Shallow Offset Drag Hats are for narrow space applications with offsets often less than 1.00". They are available for most rotor bolt patterns in a variety of four and five lug wheel patterns.
Through-hole mount hats for use with threaded hole rotors. When used with matching Wilwood rotor hardware, these hats provide solid mounting for a wide range of custom and competition disc brake applications.
Specifications
| Hat Dimensions | |
|---|---|
| Mount Hole Type: | Threaded |
| Rotor Bolt Circle (in): | 8 x 7.00 |
| Hat Offset (in): | 1.16 |
| Center Reg. (in): | 3.06 |
| Hat Type | |
| Material: | Aluminum |
| Mount Style: | Fixed Mount |
| Finish: | Black E-Coat |
| Weight (lbs): | 1.7 |
| Bolt Circle Dimensions | |
| Hat Bolt Circle 1: | 5 x 4.50 |
| Hat Bolt Circle 2: | 5 x 4.75 |
| Additional Hat Dimensions | |
|---|---|
| Rotor Mount Hole Size (in): | 5/16-18 |
| Clearance I.D. (in): | 5.9 |
| Face Thickness (in): | 0.25 |
| Hat Stud Diamenter - BC 1 (in): | 0.58 |
| Hat Stud Diamenter - BC 2 (in): | 0.52 |
