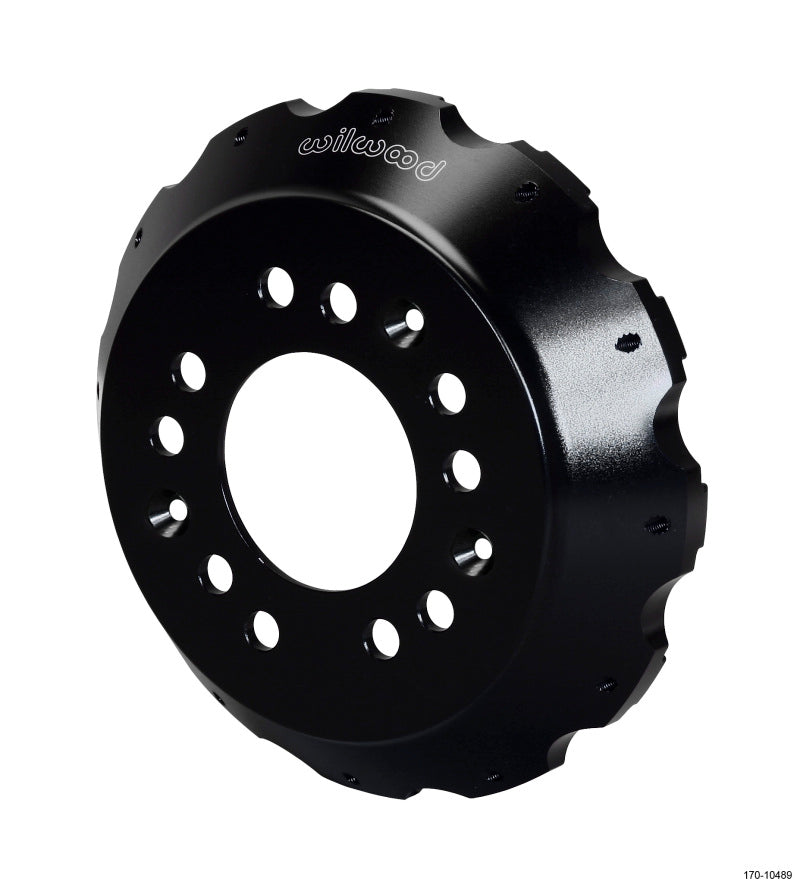

Wilwood Hat-BB Front,1.62" Offset 5 x 4.50/4.75 - 12 on 8.75" *Discontinued
Wilwood Hat-BB Front,1.62" Offset 5 x 4.50/4.75 - 12 on 8.75" *Discontinued
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
73 in stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Shipping & returns
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyGT Series Big Brake Flared Bell hats are precision machined from premium aluminum alloys for high strength and attention to minimized weight. Hats in this category feature threaded rotor mount holes for use with standard through-hole mount rotors. Threaded hole hats may also be used with T-Nuts or bobbins designed for use with specially machined slotted hole dynamic mount rotors. When used in conjunction with matched Wilwood rotor hardware kits, GT hats provide solid, reliable performance in the most demanding conditions.Flared Bell Hats are generally used with rotor mount bolt circles of 8.38" and larger. Offsets range from 1.88" to 3.00" for rotor diameters 12.19" and up.
Specifications
Hat Dimensions
Mount Hole Type: Threaded
Rotor Bolt Circle (in): 12 x 8.75
Hat Offset (in): 1.62
Center Reg. (in): 3.06
Hat Type
Material: Aluminum
Mount Style: Fixed Mount
Finish: Black E-Coat
Weight (lbs): 2.2
Bolt Circle Dimensions
Hat Bolt Circle 1: 5 x 4.50
Hat Bolt Circle 2: 5 x 4.75
Additional Hat Dimensions
Rotor Mount Hole Size (in): 1/4-20
Clearance I.D. (in): 6.4
Face Thickness (in): 0.25
Hat Stud Diameter - BC 1 (in): 0.52
Hat Stud Diameter - BC 2 (in): 0.52
