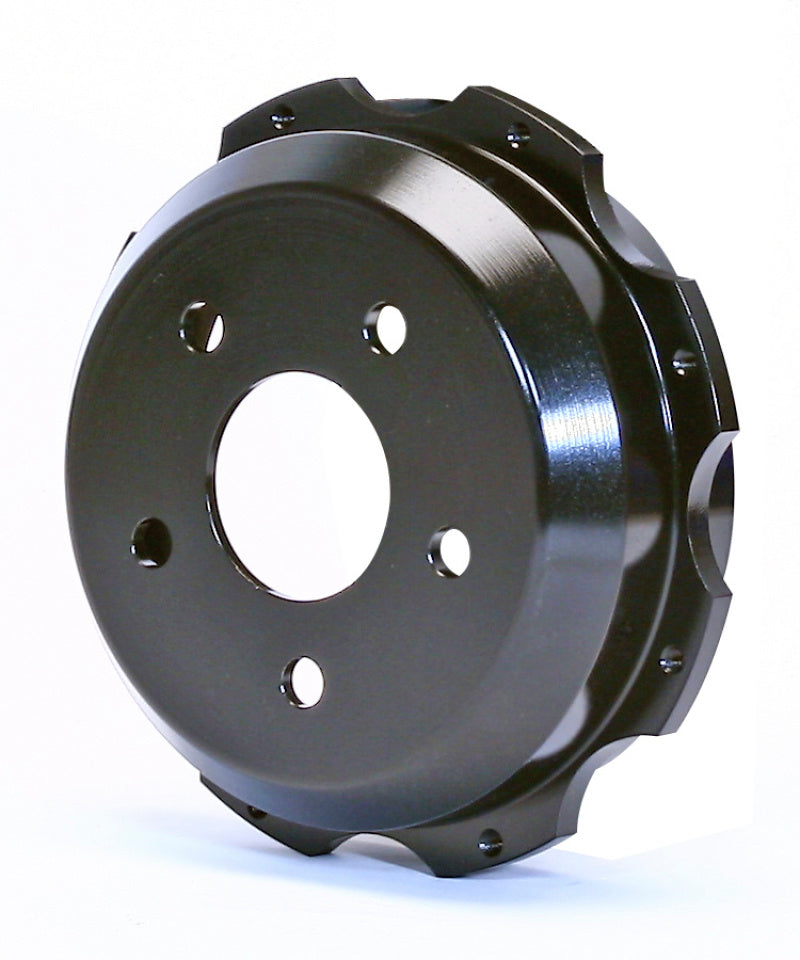

Wilwood Hat-Subaru Rear, 5 x 3.94 - 8 on 7.78" *Discontinued
Wilwood Hat-Subaru Rear, 5 x 3.94 - 8 on 7.78" *Discontinued
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
47 in stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Shipping & returns
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyParking Brake Hat - Standard
These premium grade cast iron hats make it possible to use bolt-on rotors on vehicles equipped with internal shoe parking brake assemblies. Each hat is a precision machined, threaded hole design for use in conjunction with through-hole mount rotors. After machining, the hats are electro-coated for corrosion resistance.
Specifications
| Hat Dimensions | |
|---|---|
| Mount Hole Type: | Threaded |
| Rotor Bolt Circle (in): | 8 x 7.78 |
| Hat Offset (in): | 1.64 |
| Center Reg. (in): | 2.29 |
| Hat Type | |
| Material: | Iron |
| Mount Style: | Fixed Mount |
| Finish: | Black E-Coat |
| Weight (lbs): | 5.7 |
| Bolt Circle Dimensions | |
| Hat Bolt Circle 1: | 5 x 3.93 |
| Additional Hat Dimensions | |
|---|---|
| Rotor Mount Hole Size (in): | 1/4-28 |
| Shoe I.D. (in): | 6.69 |
| Clearance I.D. (in): | 5.76 |
| Face Thickness (in): | 0.26 |
| Hat Stud Diamenter - BC 1 (in): | 0.51 |
