Wilwood Rotor-2.32" Offset-SRP Drilled LH-12.19 x .810 - 5 Lug
Wilwood Rotor-2.32" Offset-SRP Drilled LH-12.19 x .810 - 5 Lug
Out of stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policySRP Drilled Performance Rotor & Hat
For custom, show and high performance sport driving, SRP rotors offer the high tech look and improved performance of a directional cross-drill and face slot pattern. In addition to the aesthetic appeal, the venting and cleaning action of the hole and slot pattern helps to reduce pad glaze and minimize irregular pad build-up on the rotor faces. The results are a smoother engagement feel at the pedal and consistent response from the pads. Each rotor is precision machined to less than .001 tolerance for overall flatness, parallelism, and radial run-out on long grain carbon iron castings. The rotors are finished with a black electro coat to provide corrosion resistance.

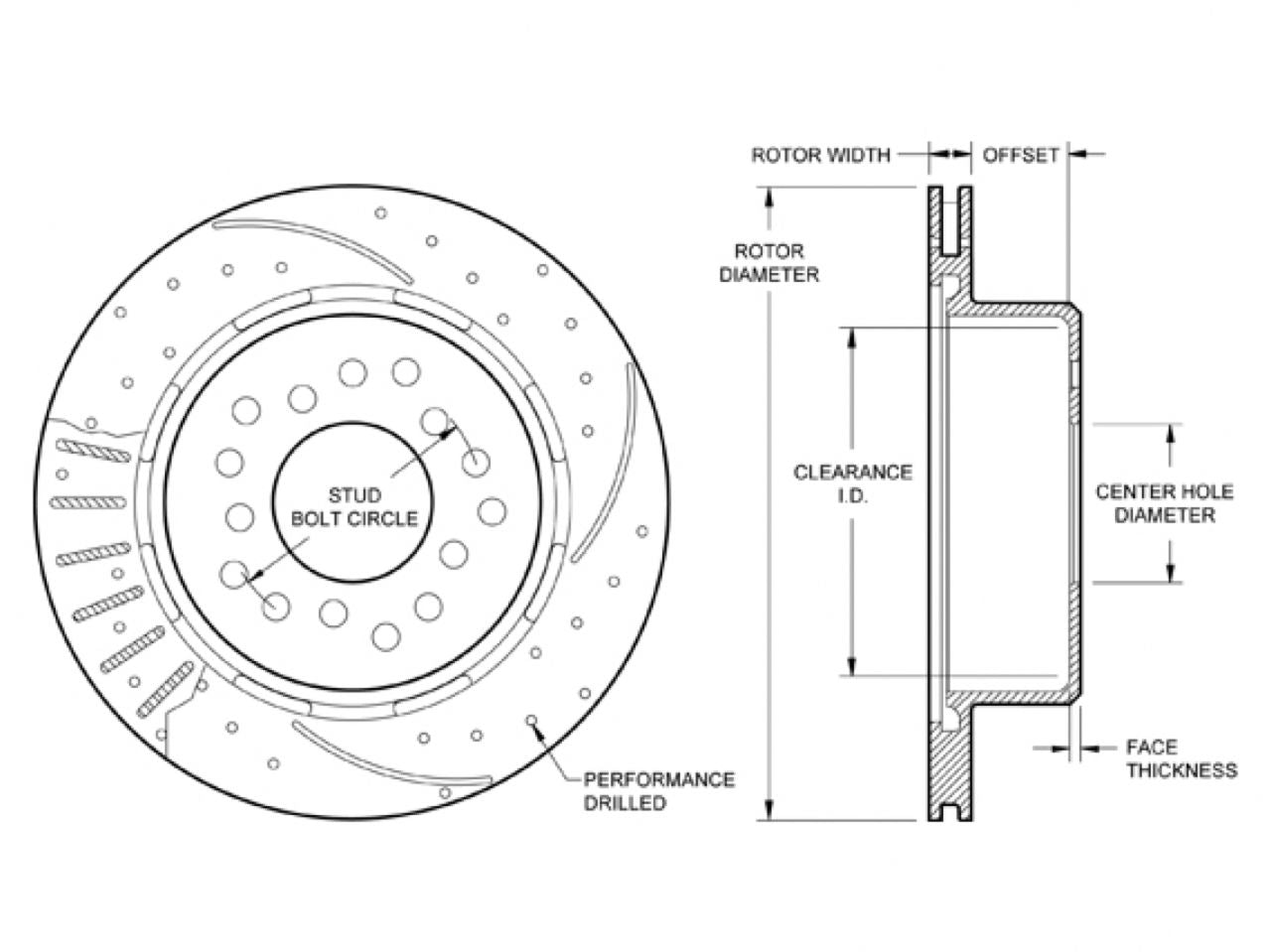

Specifications
Width (in): 0.81
Diameter (in): 12.19
Mount Side: L/H
Material: Iron
Vane Count: 32 V
Weight(Lbs): 14.4
Type: SRP
Style: SRP Drilled & Slotted
Surface Finish: Zinc Plate
Bedded: No
Balanced: No
Lug ID / Registration (in): 3.06
Far Side Inside Diameter (in): 8.38
Offset Dimension (in): 2.32
Shoe Inside Dimension (in): 7.24
Clearance Inside Diameter (in): 7.16
Wheel Bolt Circle (in): 5 x 4.50/4.75/5.00
Stud Diameter (in): 0.52
Face Thickness (in): 0.18
