Wilwood Rotor-HD48 SPC-37-LH, 12.19 x 1.25 - 8 on 7.62"
Wilwood Rotor-HD48 SPC-37-LH, 12.19 x 1.25 - 8 on 7.62"
sku: 01E7C | mpn: 160-3873
Regular price
$264.60
Regular price
Sale price
$264.60
Shipping calculated at checkout.
24 in stock
Emissions
This is not an emissions item.
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping

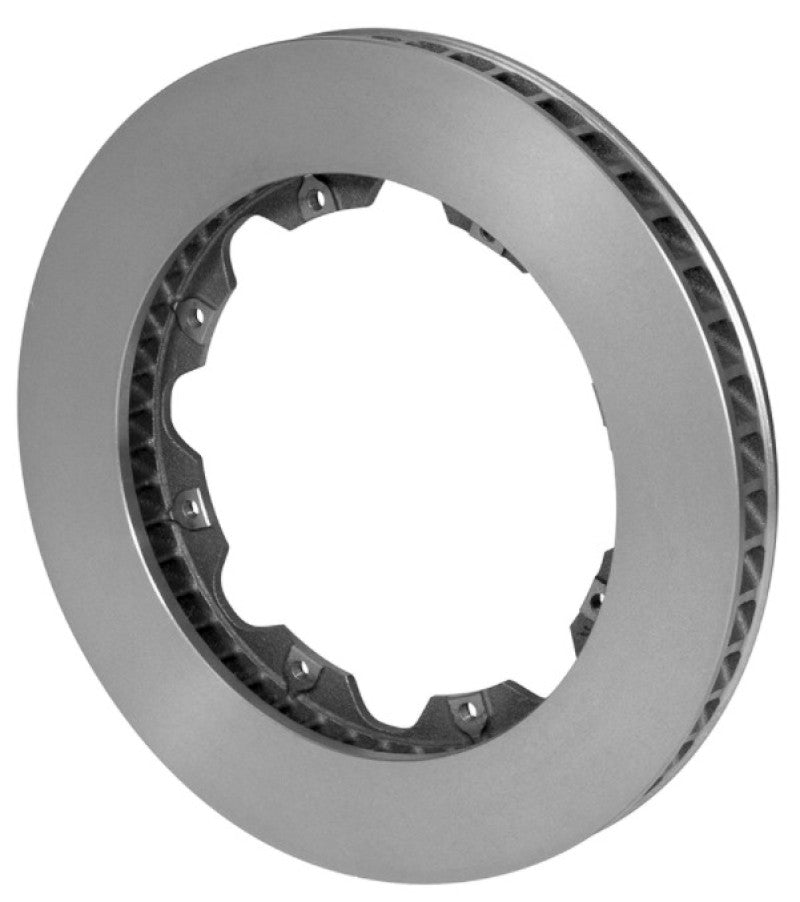

HD 48 Curved Vane Rotor
Wilwood's HD 48 Curved Vane Spec-37 rotors are are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Our HD Series preparation includes full detail machining and smooth pad contact faces without slots.
Specifications
| Rotor Dimensions | |
|---|---|
| Width (in): | 1.25 |
| Diameter (in): | 12.19 |
| Mount Side: | L/H |
| Rotor Bolt Circle (in): | 8 x 7.62 |
| Rotor Mount Hole Size (in): | 5/16-24 |
| Lug ID / Registration (in): | 7.13 |
| Far Side Inside Diameter (in): | 8.41 |
| Rotor Design | |
| Material: | Spec-37 Iron |
| Vane Count: | 48 CV |
| Weight(Lbs): | 12.7 |
| Rotor Style & Finish | |
| Type: | HD |
| Style: | Plain Face |
| Surface Finish: | Plain |
| Rotor Upgrades | |
| Bedded: | No |
| Balanced: | No |
