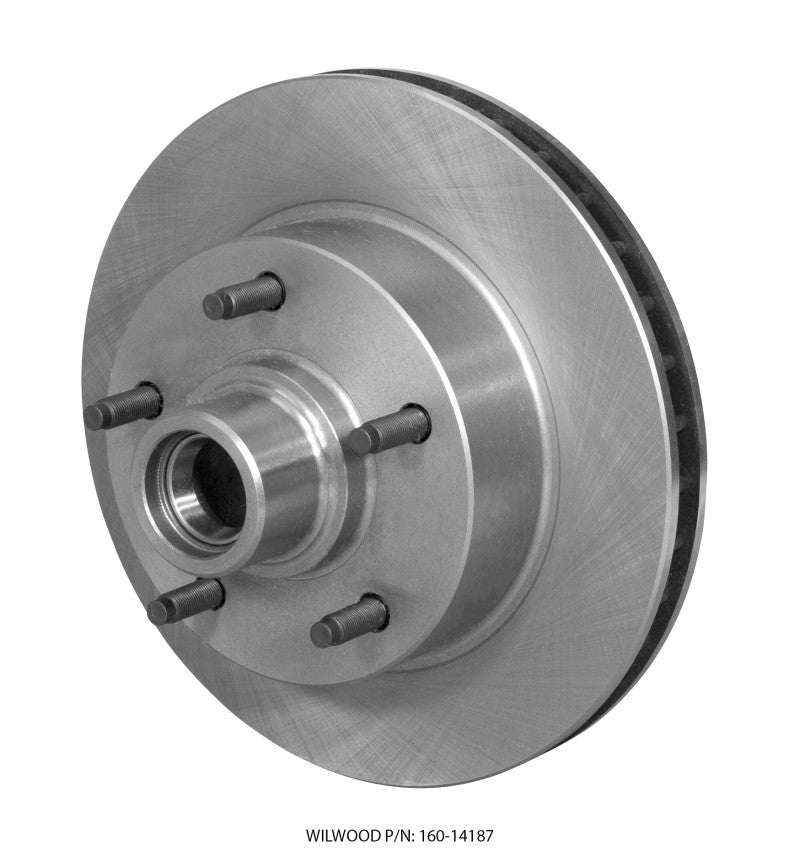

Wilwood Rotor-Vented w/ Hub & Studs,11.72. x 1.19 - 5 on 5.50",Ford F100

HP Hub & Rotor

Wilwood’s OEM style hub and rotor assemblies. These rotors were designed utilizing the latest developments in iron formulation technology using our proprietary blend ferrous alloy to bring you the strongest, lightweight, most dependable rotor available in the market place. The rotors are new castings, not reworked parts and our tolerances are held to the high standards you have come to expect from Wilwood Engineering. Designed as a cost effective alternative to our standard three piece hub and rotor assemblies, it also lends further utility to kit designs.

Specifications

Width (in): 1.19

Diameter (in): 11.72

Material: Iron

Vane Count: Vented

Weight(Lbs): 28.15

Type: ULHP

Style: Plain Face

Surface Finish: Plain

Bedded: No

Balanced: No

Far Side Inside Diameter (in): 6.65

Wheel Bolt Circle (in): 5 X 5.50

Stud Diameter (in): 0.5
