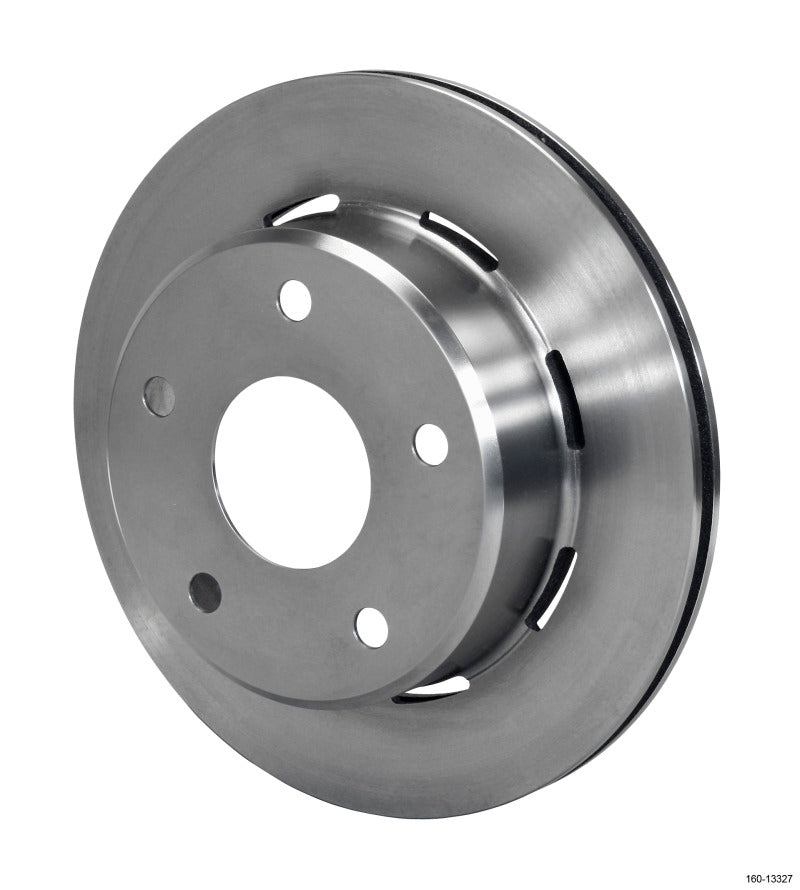

Wilwood Rotor-1.91" Offset 12.19 x .810 - 5 x 5.50

Ultralite HP 32 Vane Rotor & Hat

HP rotors are close tolerance machined with smooth turned pad faces. The additional mass of the HP series extends service life on heavier competition vehicles and other severe duty applications. They are also the base model for every day use.

Specifications

Rotor Dimensions

Width (in): 0.81

Diameter (in): 12.19

Rotor Design

Material: Iron

Vane Count: 32 V

Weight(Lbs): 14.4

Rotor Style & Finish

Type: ULHP

Style: Plain Face

Surface Finish: Plain

Rotor Upgrades

Bedded: No

Balanced: No

Lug ID / Registration (in): 3.06

Far Side Inside Diameter (in): 8.38

Offset Dimension (in): 1.91

Shoe Inside Dimension (in): 7.24

Clearance Inside Diameter (in): 7.16

Wheel Bolt Circle (in): 5 x 5.50

Stud Diameter (in): 0.64

Face Thickness (in): 0.18
