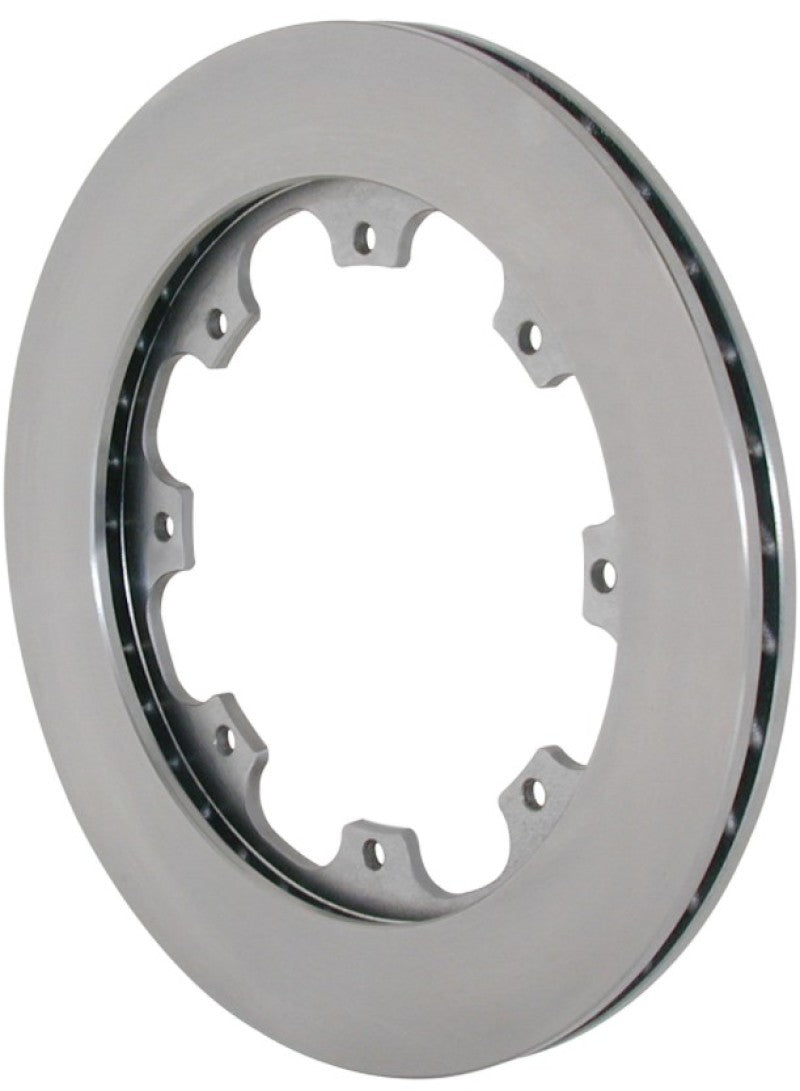

Wilwood HD 36 Curved Vane Rotor

HD 36 Curved Vane Rotor

Wilwood's HD 36 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Our HD Series preparation includes full detail machining and smooth pad contact faces without slots.

Specifications

Width (in): 0.81

Diameter (in): 12.19

Mount Side: R/H

Material: Spec-37 Iron

Vane Count: 36 CV

Weight(Lbs): 9.5

Type: HD

Style: Plain Face

Surface Finish: Plain

Bedded: No

Balanced: No

Rotor Bolt Circle (in): 8 x 7.00

Rotor Mount Hole Size (in): 0.326

Lug ID / Registration (in): 6.38

Far Side Inside Diameter (in): 8.56
