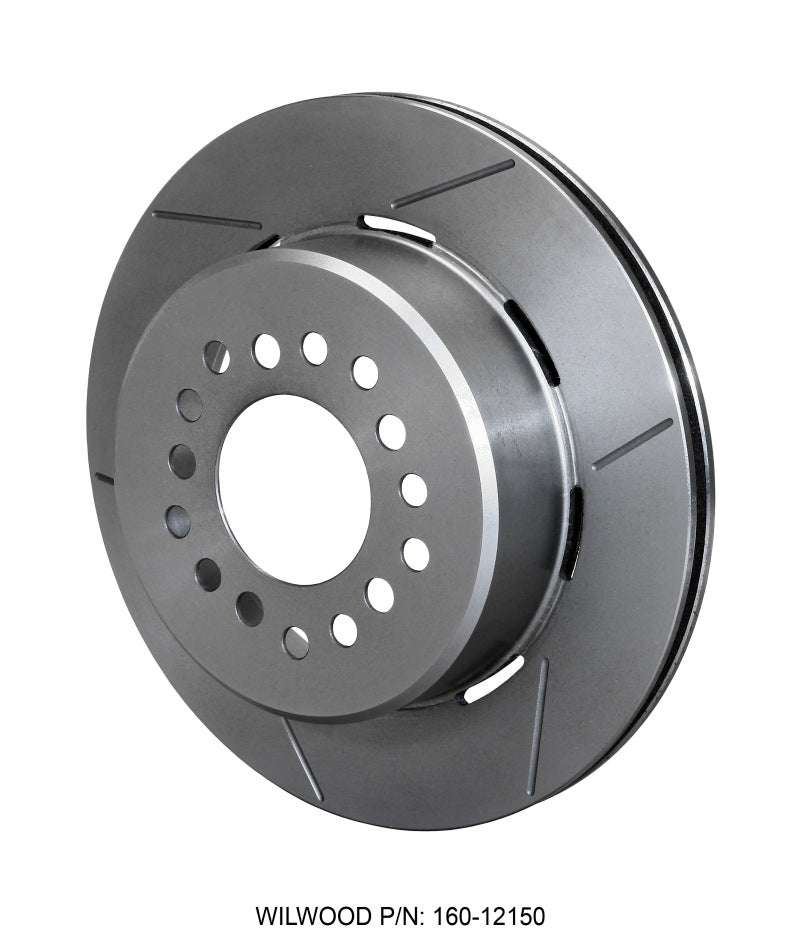

• Wilwood Rotor-1.91" Offset - GTS Grooved, 12.19 x .810 - 5 Lug 160-12150 Photo - Primary
1 1
Wilwood Authorized Dealer

Wilwood Rotor-1.91" Offset - GTS Grooved, 12.19 x .810 - 5 Lug

Wilwood Rotor-1.91" Offset - GTS Grooved, 12.19 x .810 - 5 Lug

sku: 0BG50 | mpn: 160-12150
$331.25
$331.25 $331.25
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

HPS rotors are close tolerance machined with turned grooved pad faces. The additional mass of the HP series extends service life on heavier competition vehicles and other severe duty applications. They are also the base model for every day use.

Each rotor is precision machined to less than .001" tolerance for overall flatness, parallelism, and radial run-out on long grain carbon iron castings. Long grain carbon iron is used for its superior thermal conductivity and stability properties that resist distortion and fatigue.

  • Rotor Dimensions
    Width (in): 0.81
    Diameter (in): 12.19
  • Rotor Design
    Material: Iron
    Vane Count: 32 V
    Weight(Lbs): 14.4
  • Rotor Style & Finish
    Type: ULHPS
    Style: GT Slotted
    Surface Finish: Plain
  • Rotor Upgrades
    Bedded: No
    Balanced: No
  • Lug ID / Registration (in): 3.06
  • Far Side Inside Diameter (in): 8.38
  • Offset Dimension (in): 1.91
  • Shoe Inside Dimension (in): 7.24
  • Clearance Inside Diameter (in): 7.16
  • Wheel Bolt Circle (in: 5 x 4.50/4.75/5.00
  • Stud Diameter (in): .56/.52/.52
  • Face Thickness (in): 0.18
