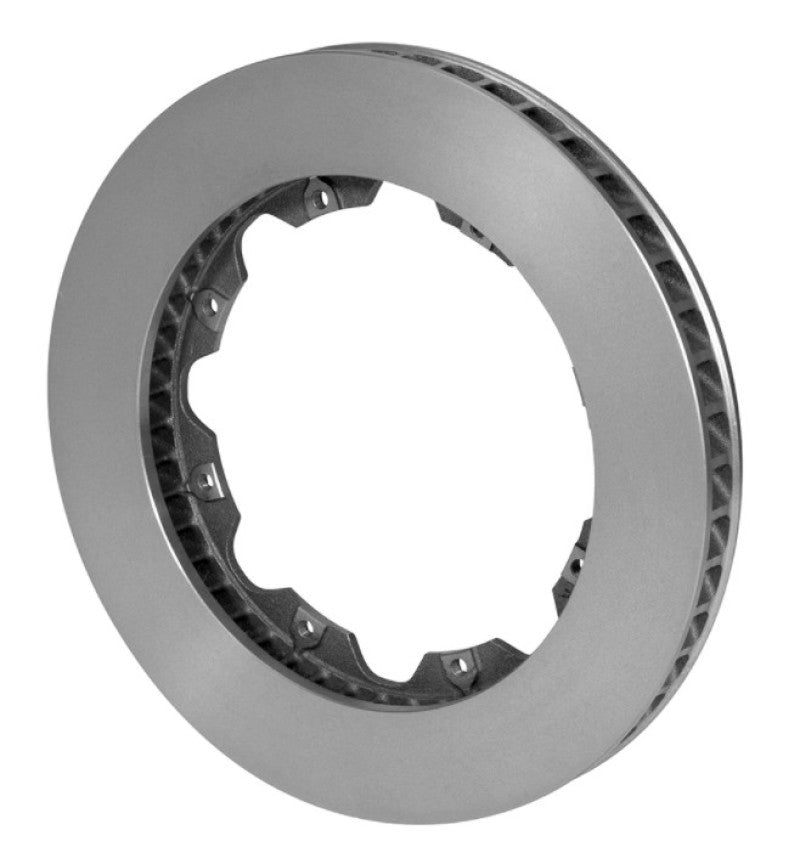

Wilwood Rotor-HD48 SPC-37-LH, 12.19 x 1.25 - 8 on 7.00"
HD 48 Curved Vane Rotor
Wilwood's HD 48 Curved Vane Spec-37 rotors are are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Our HD Series preparation includes full detail machining and smooth pad contact faces without slots.
Specifications
| Rotor Dimensions | |
|---|---|
| Width (in): | 1.25 |
| Diameter (in): | 12.19 |
| Mount Side: | L/H |
| Rotor Design | |
| Material: | Spec-37 Iron |
| Vane Count: | 48 CV |
| Weight(Lbs): | 12.7 |
| Rotor Style & Finish | |
| Type: | HD |
| Style: | Plain Face |
| Surface Finish: | Plain |
| Rotor Upgrades | |
| Bedded: | No |
| Balanced: | No |
| Rotor Bolt Circle (in): | 8 x 7.00 |
| Rotor Mount Hole Size (in): | 0.316 |
| Lug ID / Registration (in): | 6.38 |
| Far Side Inside Diameter (in): | 8.41 |
Wilwood Rotor-HD48 SPC-37-LH, 12.19 x 1.25 - 8 on 7.00"
Sale price$180.40 USD
Regular price$194.84 USD
