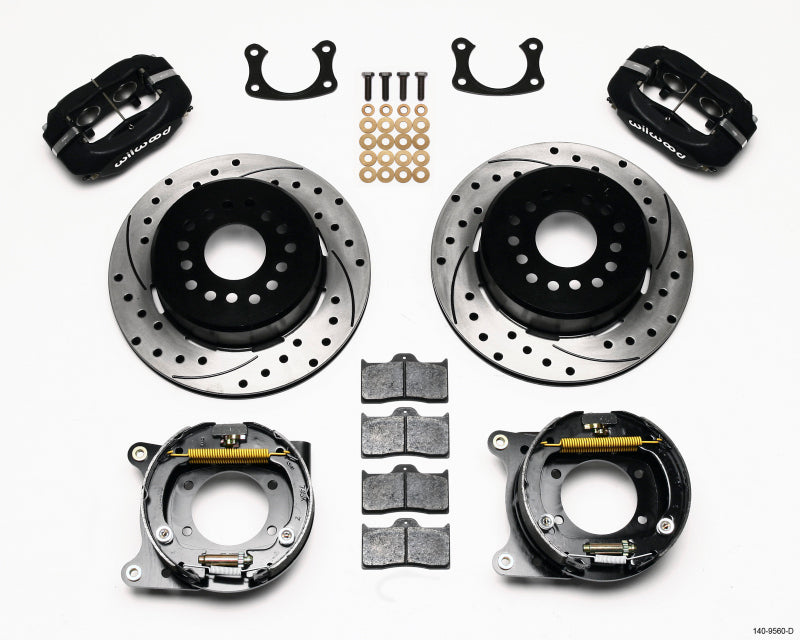

Wilwood FDL P/S Park Brake Kit,Drilled,New Big Ford,2.50" offset,Staggrd

Forged Dynalite Rear Parking Brake Kit

This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Specifications

Rear End Axle: Big Ford New Style

Axle Offset: 2.5

Mount Type: Lug

Caliper Type: 4 - Black Powder Coat

Rotor Diameter: 12.19

Min Wheel Diameter Req'd*: 15

Calipers

Left Hand - Part No: 120-13839-BK

Right Hand - Part No: 120-13839-BK

Type: Forged Dynalite Internal

Finish Color: Black Powder Coat

Piston Count: 4

Piston Area (In²): 3.00

Piston Type: Stainless

Mount Type: Lug

Brake Pad Plate: 7112

Brake Pad Area (In²): 6.36

Brake Pad Volume (In³): 2.1

Pad Compound: BP-10

Rotors

Left Hand - Part No: 160-9813-BK

Right Hand - Part No: 160-9812-BK

Type: SRP Drilled Rotor & Hat

Style: SRP Drilled & Slotted

Surface Finish: Black Electro Coat

Material: Iron

Outside Diameter (in): 12.19

Width (in): 0.81

Vane Count: 32 V

Design Type: SRP-BLK

Bedded: No

Dynamically Balanced: No
