Rear Brake Kit - Rear Kit

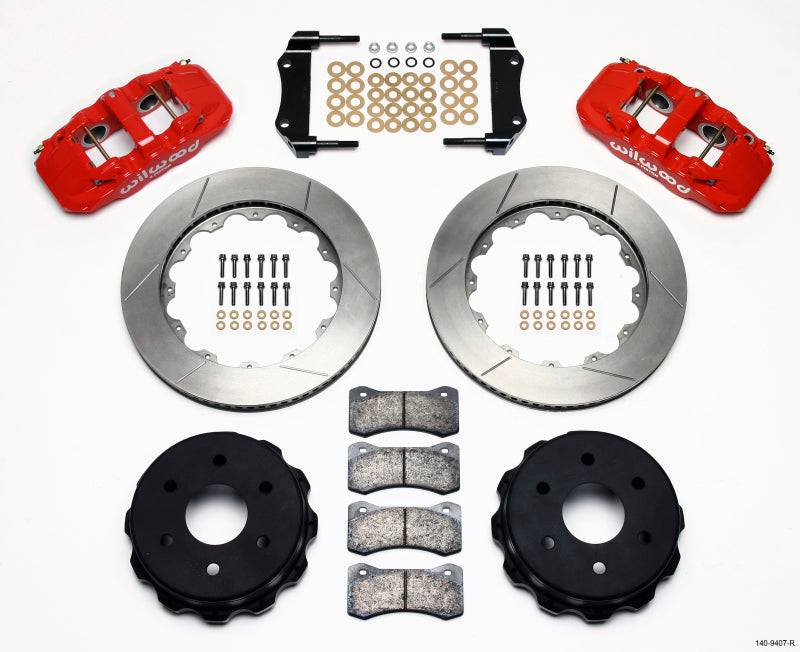

AERO4 Big Brake rear axle kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades on late model trucks and SUV's. High capacity braking from the AERO4 calipers, BP-10 compound pads, and oversized rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles, tow rigs, and all others with increased brake requirements from high GVW.
Specifications
| Rear End Axle: |
OEM |
| Axle Offset: |
0 |
| Mount Type: |
Radial |
| Caliper Type: |
4 - Red Powder Coat |
| Rotor Diameter: |
14.25 |
| Min Wheel Diameter Req'd*: |
18 |
| Calipers |
|---|
| Left Hand - Part No: |
120-13282-RD |
| Right Hand - Part No: |
120-13281-RD |
| Type: |
AERO4 |
| Finish Color: |
Red Powder Coat |
| Piston Count: |
4 |
| Piston Area (In²): |
3.56 |
| Piston Type: |
Stainless |
| Mount Type: |
Radial |
| Brake Pad Plate: |
6617 |
| Brake Pad Area (In²): |
11.1 |
| Brake Pad Volume (In³): |
5.2 |
| Pad Compound: |
BP-20 |
| Rotors |
|---|
| Left Hand - Part No: |
160-9788-GTB |
| Right Hand - Part No: |
160-9787-GTB |
| Type: |
GT 72 Curved Vane |
| Style: |
GT Slotted |
| Surface Finish: |
Black Electro Coat |
| Material: |
Spec-37 Iron |
| Outside Diameter (in): |
14.25 |
| Width (in): |
1.25 |
| Vane Count: |
72 CV |
| Design Type: |
GT-BLK |
| Bedded: |
No |
| Dynamically Balanced: |
Yes |
| Rotor Hats |
|---|
| Hat - Part No: |
170-15182 |
| Type: |
Parking Brake Hat - Truck |
| Material: |
Iron |
| Finish Color: |
Black E-Coat |
| Hat Offset Dimension (in): |
2.26 |
| Bolt Circle 1: |
6 x 5.50 |
| Stud Diameter - BC 1: |
0.63 |
| Stud Diameter - BC 2: |
0 |
| Stud Diameter - BC 3: |
0 |
Vehicle Fitments:
| Year |
Make |
Model |
Submodel |
| 2002 - 2016 |
Cadillac |
Escalade |
Base |
| 2009 - 2012 |
Cadillac |
Escalade |
Hybrid |
| 2010 - 2012 |
Cadillac |
Escalade |
Hybrid Platinum |
| 2011 - 2016 |
Cadillac |
Escalade |
Luxury, Premium |
| 2008 - 2016 |
Cadillac |
Escalade |
Platinum |
| 2012 |
Cadillac |
Escalade |
Special Edition |
| 2007 - 2016 |
Cadillac |
Escalade ESV |
Base |
| 2011 - 2016 |
Cadillac |
Escalade ESV |
Luxury, Premium |
| 2008 - 2016 |
Cadillac |
Escalade ESV |
Platinum |
| 2012 |
Cadillac |
Escalade ESV |
Special Edition |
| 2007 - 2009 |
Cadillac |
Escalade EXT |
Base |
| 2007 - 2013 |
Chevrolet |
Avalanche |
Base |
| 2013 |
Chevrolet |
Avalanche |
Black Diamond LT, Black Diamond LTZ, Black Diamond LS |
| 2007 - 2012 |
Chevrolet |
Avalanche |
LTZ, LS, LT |
| 2014 - 2016 |
Chevrolet |
Silverado 1500 |
High Country |
| 2004 - 2013 |
Chevrolet |
Silverado 1500 |
Hybrid |
| 1999 - 2016 |
Chevrolet |
Silverado 1500 |
LS, LT, Base |
| 2007 - 2016 |
Chevrolet |
Silverado 1500 |
LTZ |
| 2003 - 2006 |
Chevrolet |
Silverado 1500 |
SS |
| 2015 - 2016 |
Chevrolet |
Silverado 1500 |
SSV |
| 2002 - 2016 |
Chevrolet |
Silverado 1500 |
WT, Custom |
| 2010 - 2013 |
Chevrolet |
Silverado 1500 |
XFE |
| 2004 |
Chevrolet |
Silverado 1500 |
Z71 |
| 2016 |
Chevrolet |
Suburban |
HD |
| 2015 - 2016 |
Chevrolet |
Suburban |
LS, LTZ, LT |
| 2007 - 2012 |
Chevrolet |
Suburban 1500 |
Base |
| 2007 - 2014 |
Chevrolet |
Suburban 1500 |
LS, LTZ, LT |
| 2007 |
Chevrolet |
Suburban 1500 |
Z71 |
| 2001 - 2012 |
Chevrolet |
Tahoe |
Base |
| 2008 - 2013 |
Chevrolet |
Tahoe |
Hybrid |
| 2001 - 2016 |
Chevrolet |
Tahoe |
LT, LS |
| 2007 - 2016 |
Chevrolet |
Tahoe |
LTZ |
| 2012 - 2016 |
Chevrolet |
Tahoe |
SSV, PPV |
| 2008 - 2016 |
Chevrolet |
Tahoe |
Z71 |
| 2002 - 2016 |
GMC |
Sierra 1500 |
Base, Denali |
| 2001 |
GMC |
Sierra 1500 |
C3 |
| 2002 |
GMC |
Sierra 1500 |
HT |
| 2005 - 2013 |
GMC |
Sierra 1500 |
Hybrid |
| 1999 - 2013 |
GMC |
Sierra 1500 |
SL |
| 1999 - 2016 |
GMC |
Sierra 1500 |
SLT, SLE |
| 2002 - 2013 |
GMC |
Sierra 1500 |
WT |
| 2010 - 2013 |
GMC |
Sierra 1500 |
XFE |
| 2007 - 2012 |
GMC |
Yukon |
Base |
| 2010 - 2013 |
GMC |
Yukon |
Denali Hybrid |
| 2001 - 2016 |
GMC |
Yukon |
Denali, SLT, SLE |
| 2008 - 2013 |
GMC |
Yukon |
Hybrid |
| 2015 - 2016 |
GMC |
Yukon XL |
SLT, SLE, Denali |
| 2007 - 2014 |
GMC |
Yukon XL 1500 |
SLE, Denali, SLT |
