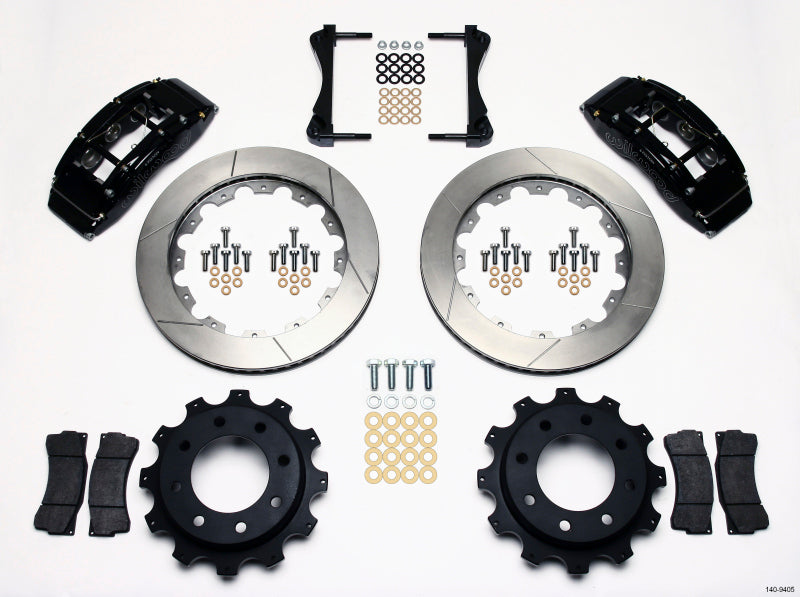

Wilwood TC6R Rear Kit,16.00",1999-2010 GM H2/2500 4.63 Cntr

TC6R Big Brake Truck Rear Brake Kit

TC6R rear axle disc brake kits with 16 rotors are the ultimate big brake solution for highly customized and modified trucks or SUVs upgraded to larger than stock wheels. TC6R kits can fit many 20and larger wheels (Verify your wheel interior clearance to the wheel clearance diagram in the installation instructions before purchase). TC6R kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades. TC6R calipers, BP-10 compound pads, and oversized rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements of each vehicle. These combined enhancements provide the necessary control over big wheels and tires to provide safe stopping on heavy weight vehicles.

Specifications

Rear End Axle: OEM

Axle Offset: 0

Mount Type: Radial

Caliper Type: 6 - Black Powder Coat

Rotor Diameter: 16

Min Wheel Diameter Req'd*: 20

Calipers

Left Hand - Part No: 120-14318-FS

Right Hand - Part No: 120-14317-FS

Type: TC6

Finish Color: Black Powder Coat

Piston Count: 6

Piston Area (In²): 5.40

Piston Type: Stainless

Mount Type: Radial

Brake Pad Plate: 6318

Brake Pad Area (In²): 13

Brake Pad Volume (In³): 6

Pad Compound: BP-10

Rotors

Left Hand - Part No: 160-8954-GTB

Right Hand - Part No: 160-8953-GTB

Type: GT 60 Curved Vane

Style: GT Slotted

Surface Finish: Black Electro Coat

Material: Spec-37 Iron

Outside Diameter (in): 16

Width (in): 1.38

Vane Count: 60 CV

Design Type: GT-BLK

Bedded: No

Dynamically Balanced: Yes

Rotor Hats

Hat - Part No: 170-14028

Type: Parking Brake Hat - Truck

Material: Iron

Finish Color: Black E-Coat

Hat Offset Dimension (in): 1.78

Bolt Circle 1: 8 x 6.50

Stud Diameter - BC 1: 0.64

Stud Diameter - BC 2: 0

Stud Diameter - BC 3: 0

Vehicle Fitments:
