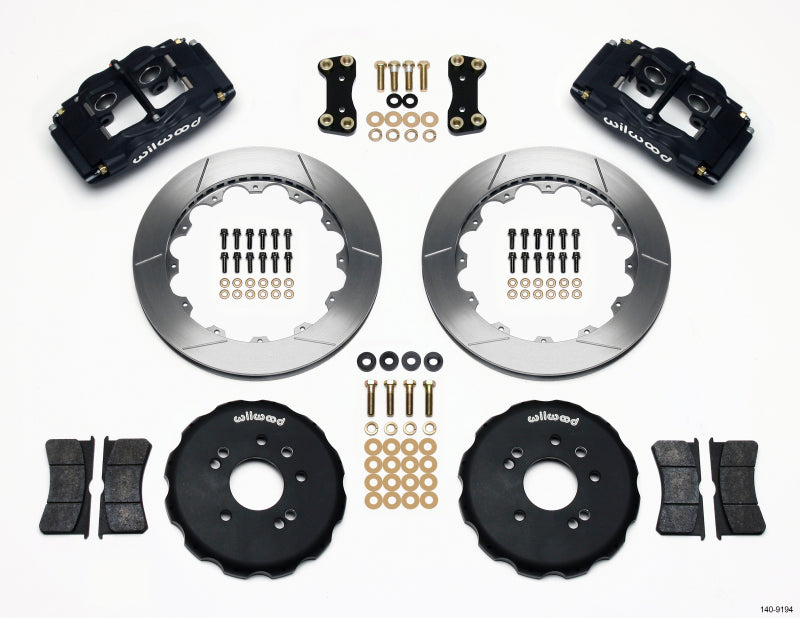

Wilwood FSLI4 Front Hat Kit, 13.00", Nissan 240SX 06KJV
Front Brake Kit
Forged Superlite 4 Big Brake Front Brake Kit (Hat)
The big pad capacity of the forged Superlite four piston caliper is combined with oversized rotors for this unique group of specialized application kits. The roots of the forged Superlite are deep in competition. It is a track proven performer. But the FSL is far from one dimensional. Lug mounting and a full range of piston sizes give the FSL widespread adaptability for applications with unique mounting and piston volume requirements. Options for caliper finish and rotor design provide the opportunity to configure these kits for high-tech style with full capability for extreme duty use on the street or at the track.
Specifications
| Spindle Type: | Factory Disc Spindle |
| Mount Type: | Lug |
| Caliper Type: | 4 - Type III Ano |
| Rotor Diameter: | 12.88 |
| Min Wheel Diameter Req'd*: | 17 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-11128 |
| Right Hand - Part No: | 120-11128 |
| Type: | Forged Superlite Internal |
| Finish Color: | Type III Ano |
| Piston Count: | 4 |
| Piston Area (In²): | 3.00 |
| Piston Type: | Stainless |
| Mount Type: | Lug |
| Brake Pad Plate: | 7416 |
| Brake Pad Area (In²): | 8.2 |
| Brake Pad Volume (In³): | 4.9 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-12962 |
| Right Hand - Part No: | 160-12961 |
| Type: | GT 48 Curved Vane |
| Style: | GT Slotted |
| Surface Finish: | Plain |
| Material: | Spec-37 Iron |
| Outside Diameter (in): | 12.88 |
| Width (in): | 1.1 |
| Vane Count: | 48 CV |
| Design Type: | GT |
| Bedded: | No |
| Dynamically Balanced: | Yes |
| Rotor Hats | |
|---|---|
| Hat - Part No: | 170-9294 |
| Type: | Big Brake Hat - Short Offset |
| Material: | Aluminum |
| Finish Color: | Black E-Coat |
| Hat Offset Dimension (in): | 0.75 |
| Bolt Circle 1: | 4 x 4.50 |
| Bolt Circle 2: | 5 x 4.50 |
| Bolt Circle 3: | |
| Stud Diameter - BC 1: | 0.52 |
| Stud Diameter - BC 2: | 0.52 |
| Stud Diameter - BC 3: | 0 |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1989 - 1998 | Nissan | 240SX | Base, SE |
| 1991 - 1998 | Nissan | 240SX | LE |
| 1989 - 1990 | Nissan | 240SX | XE |
| 1994 - 1998 | Nissan | Silvia | J's, Q's, K's |
Wilwood FSLI4 Front Hat Kit, 13.00", Nissan 240SX 06KJV
Sale price$1,893.13 USD
