Wilwood Dynapro Radial Big Brake Front Brake Kit (Hat) Red
Wilwood

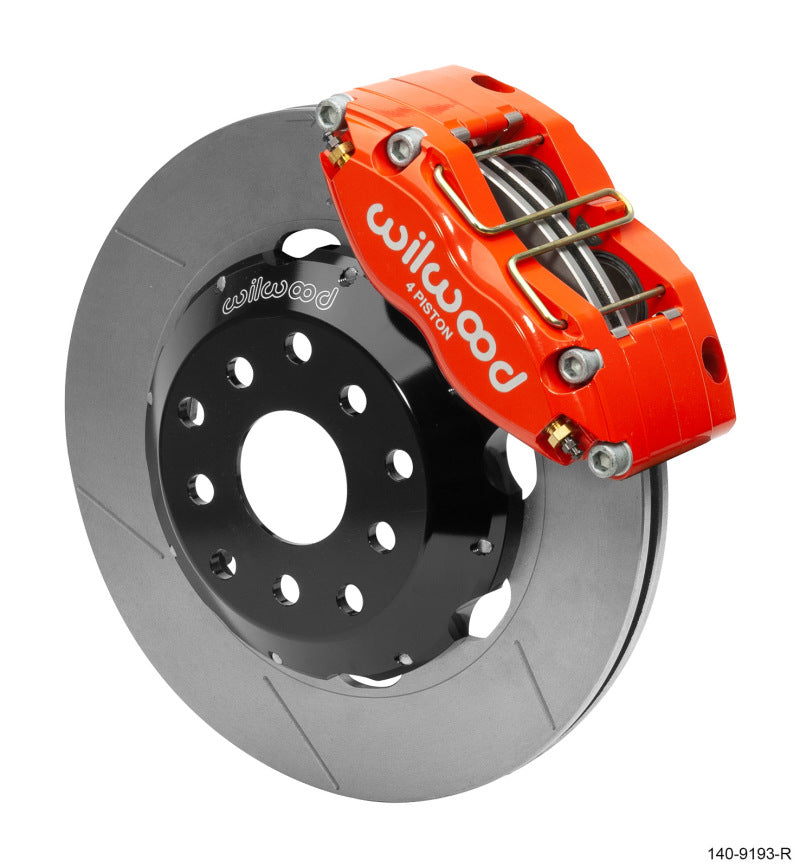

Wilwood Dynapro Radial Big Brake Front Brake Kit (Hat) Red

SKU: 0BFKE | MPN:  140-9193-R
In stock
Sale price$1,297.86 USD Regular price$1,450.81 USD
Save $152.95

Radial mounting provides secure and accurate installation of the forged billet DynaPro four piston caliper with large diameter rotors for this group of front and all wheel drive sport compacts. These kits are the perfect compliment to wheel, tire, and suspension upgrades on daily drivers, competition vehicles, and custom styled show machines. Each kit is engineered specific for each vehicle to maintain full compatibility with the OE master cylinder output and factory ABS functions. Optional caliper finishes and rotor designs provide choices that enable the builder to personalize the style and optimize brake performance.

Kit Components & Specifications
  • Calipers:
  • Type: Dynapro Radial Mount
  • Finish Color: Red Powder Coat
  • Piston Count: 4
  • Piston Area (In²): 4.12
  • Piston Type: Aluminum
  • Mount Type: Radial
  • Brake Pad Plate: 7816
  • Brake Pad Area (In²): 6.36
  • Brake Pad Volume (In³): 3
  • Pad Compound: BP-10
  • Rotors:
  • Type: GT 36 Curved Vane
  • Style: GT Slotted
  • Surface Finish: Plain
  • Material: Spec-37 Iron
  • Outside Diameter (in): 12
  • Width (in): 0.81
  • Vane Count: 36 CV
  • Design Type: GT
  • Bedded: No
  • Dynamically Balanced: Yes
  • Rotor Hats:
  • Type: Big Brake Hat - Short Offset
  • Material: Aluminum
  • Finish Color: Black E-Coat
  • Hat Offset Dimension (in): 1.1
  • Bolt Circle 1: 5 x 3.93
  • Bolt Circle 2:
  • Bolt Circle 3:
  • Stud Diameter - BC 1: 0.52
  • Stud Diameter - BC 2: 0
  • Stud Diameter - BC 3: 0


Vehicle Fitments:

Year Make Model Submodel
2006 Saab 9-2X 2.5i
2005 - 2006 Saab 9-2X Aero
2005 Saab 9-2X Linear
2008 Subaru Forester Anniversary Edition, 2.5 XT, Sports 2.5 X, 2.5 XS Premium, Sports 2.5 XT, 2.5 X, 2.5 XS
2001 - 2002 Subaru Forester Base, L, S
2003 - 2008 Subaru Forester X
2003 - 2007 Subaru Forester XS
2007 Subaru Forester XSL
2004 - 2008 Subaru Forester XT
2006 - 2008 Subaru Forester XT Limited, X L.L. Bean Edition
2005 Subaru Forester XT Premium, XS L.L. Bean Edition
1999 - 2001 Subaru Impreza L
1999 - 2004 Subaru Impreza Outback
2005 - 2007 Subaru Impreza Outback Sport
1999 - 2005 Subaru Impreza RS
2002 - 2004 Subaru Impreza TS
2002 - 2007 Subaru Impreza WRX
2004 - 2007 Subaru Impreza WRX STI
2007 Subaru Impreza WRX STI Limited
2006 - 2007 Subaru Impreza WRX TR, WRX Limited, 2.5i
2000 Subaru Legacy Brighton
2000 - 2002 Subaru Legacy GT Limited, L, GT
2002 Subaru Outback H6
2001 - 2002 Subaru Outback L.L. Bean, VDC
2000 - 2002 Subaru Outback Limited, Base
