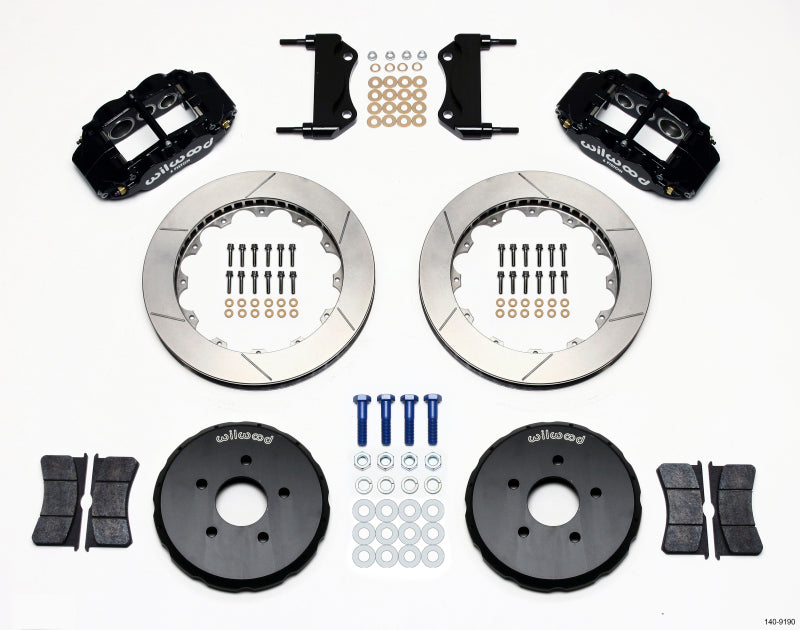

Wilwood FNSL6R Front Hat Kit, 13.06", Nissan 350Z/Infiniti G35
Front Brake Kit
Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat)
The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 13"-14" big rotor kits for these popular late model vehicles. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.
Specifications
| Spindle Type: | Factory Disc Spindle |
| Mount Type: | Radial |
| Caliper Type: | 6 - Black Powder Coat |
| Rotor Diameter: | 13.06 |
| Min Wheel Diameter Req'd*: | 17 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-11779-BK |
| Right Hand - Part No: | 120-11778-BK |
| Type: | Forged Narrow Superlite 6R |
| Finish Color: | Black Powder Coat |
| Piston Count: | 6 |
| Piston Area (In²): | 4.04 |
| Piston Type: | Stainless |
| Mount Type: | Radial |
| Brake Pad Plate: | 7416 |
| Brake Pad Area (In²): | 8.2 |
| Brake Pad Volume (In³): | 3.8 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-8166 |
| Right Hand - Part No: | 160-8165 |
| Type: | GT 48 Curved Vane |
| Style: | GT Slotted |
| Surface Finish: | Plain |
| Material: | Spec-37 Iron |
| Outside Diameter (in): | 13.06 |
| Width (in): | 1.25 |
| Vane Count: | 48 CV |
| Design Type: | GT |
| Bedded: | No |
| Dynamically Balanced: | Yes |
| Rotor Hats | |
|---|---|
| Hat - Part No: | 170-9289 |
| Type: | Big Brake Hat - Short Offset |
| Material: | Aluminum |
| Finish Color: | Black E-Coat |
| Hat Offset Dimension (in): | 0.54 |
| Bolt Circle 1: | 5 x 4.50 |
| Stud Diameter - BC 1: | 0.52 |
| Stud Diameter - BC 2: | 0 |
| Stud Diameter - BC 3: | 0 |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2003 - 2007 | INFINITI | G35 | Base |
| 2007 | INFINITI | G35 | Journey, Sport |
| 2004 - 2007 | INFINITI | G35 | X |
| 2005 | Nissan | 350Z | 35th Anniversary Edition |
| 2003 - 2008 | Nissan | 350Z | Base |
| 2003 - 2009 | Nissan | 350Z | Enthusiast, Touring |
| 2005 - 2009 | Nissan | 350Z | Grand Touring |
| 2007 - 2008 | Nissan | 350Z | Nismo |
| 2003 - 2005 | Nissan | 350Z | Performance |
| 2003 - 2006 | Nissan | 350Z | Track |
