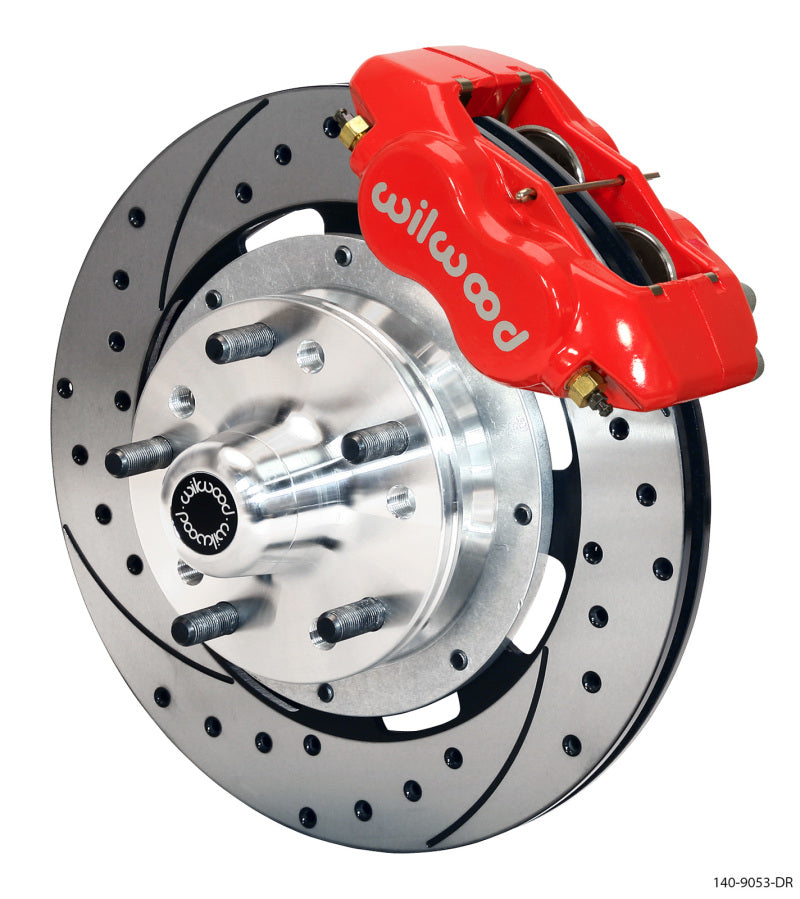

Wilwood FDL Front Kit, 12.19", Drilled, Red, 79-81 Camaro *Discontinued
Wilwood FDL Front Kit, 12.19", Drilled, Red, 79-81 Camaro *Discontinued
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
15 in stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Shipping & returns
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyFront Brake Kit
Forged Dynalite Big Brake Front Brake Kit (Hub)
FDL Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Forged billet Dynalite calipers, 12.19" diameter rotors, and high performance Wilwood brake pads generate big brake stopping power to compliment wheel, tire, and suspension upgrades on all types of custom show and performance street / strip machines. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines.
Specifications
| OE Hub Offset: | -.10 |
| Spindle Type: | Factory Disc Spindle |
| Mount Type: | Lug |
| Caliper Type: | 4 - Red Powder Coat |
| Rotor Diameter: | 12.19 |
| Min Wheel Diameter Req'd*: | 15 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-13844-RD |
| Right Hand - Part No: | 120-13844-RD |
| Type: | Forged Dynalite Internal |
| Finish Color: | Red Powder Coat |
| Piston Count: | 4 |
| Piston Area (In²): | 4.80 |
| Piston Type: | Stainless |
| Mount Type: | Lug |
| Brake Pad Plate: | 7112 |
| Brake Pad Area (In²): | 6.36 |
| Brake Pad Volume (In³): | 2.1 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-7104-BK |
| Right Hand - Part No: | 160-7103-BK |
| Type: | SRP Drilled Rotor |
| Style: | SRP Drilled & Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Iron |
| Outside Diameter (in): | 12.19 |
| Width (in): | 0.81 |
| Vane Count: | 32 V |
| Design Type: | SRP-BLK |
| Bedded: | No |
| Dynamically Balanced: | No |
| Hubs | |
|---|---|
| Hub - Part No: | 270-10439 |
| Type: | Hub - Vented Rotor Offset |
| Material: | Aluminum |
| Finish Color: | Bare |
| Mount Style: | Adapter |
| Bolt Circle 1: | 5 x 4.50 |
| Bolt Circle 2: | 5 x 4.75 |
| Stud Diameter - BC 1: | 1/2-20 |
| Stud Diameter - BC 2: | 1/2-20 |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1984 - 1985 | Buick | Electra | Limited, Estate Wagon, Park Avenue |
| 1985 | Buick | Electra | T-Type |
| 1979 - 1983 | Buick | Estate Wagon | Base |
| 1985 | Buick | LeSabre | Collector's Edition, Estate Wagon |
| 1982 - 1985 | Buick | LeSabre | Custom |
| 1979 - 1985 | Buick | LeSabre | Limited |
| 1982 | Buick | LeSabre | Limited Edition F/E |
| 1979 - 1981 | Buick | LeSabre | Sport, Base |
| 1979 | Buick | Skylark | S, Base, Custom |
| 1979 - 1981 | Chevrolet | Camaro | Berlinetta, Z28 |
| 1979 - 1980 | Chevrolet | Camaro | Rally Sport, Base |
| 1981 | Chevrolet | Camaro | Sport |
| 1980 - 1990 | Chevrolet | Caprice | Base |
| 1979 - 1990 | Chevrolet | Caprice | Classic |
| 1986 - 1990 | Chevrolet | Caprice | Classic Brougham |
| 1981 - 1982 | Chevrolet | Caprice | Classic Estate |
| 1979 - 1981 | Chevrolet | Caprice | Classic Landau |
| 1987 - 1990 | Chevrolet | Caprice | Classic LS Brougham |
| 1979 - 1980 | Chevrolet | Caprice | Classic Sport |
| 1979 | Chevrolet | Caprice | Landau |
| 1979 - 1985 | Chevrolet | Impala | Base |
| 1981 - 1982 | Chevrolet | Impala | Estate |
| 1979 | Chevrolet | Impala | Landau |
| 1979 - 1980 | Chevrolet | Impala | Sport |
| 1979 | Chevrolet | Nova | Base, Custom, Rally |
| 1979 - 1985 | Oldsmobile | Custom Cruiser | Base |
| 1979 | Oldsmobile | Omega | Brougham LS, Brougham, Base |
| 1979 - 1981 | Pontiac | Bonneville | Brougham, Safari, Base |
| 1979 - 1981 | Pontiac | Catalina | Safari, Base |
| 1979 - 1981 | Pontiac | Firebird | Esprit, Base, Trans Am, Formula |
| 1983 - 1986 | Pontiac | Parisienne | Brougham, Base |
| 1979 | Pontiac | Phoenix | SJ, LJ, Base |
