Front Brake Kit

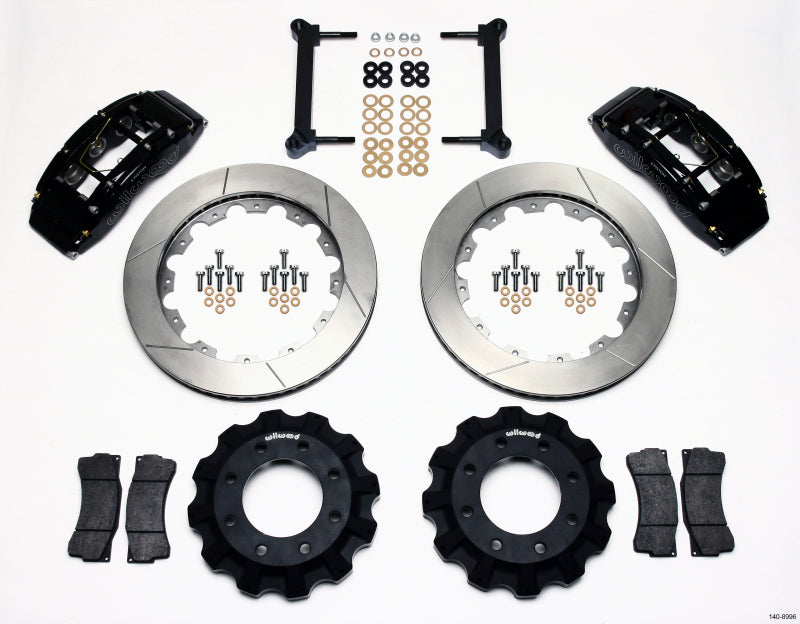

TC6R Big Brake Truck Front Brake Kit
TC6R calipers are purpose built to provide unsurpassed braking capacity on trucks and SUV's upgraded to larger than stock wheels. TC6R kits can fit many 20"and larger wheels (Verify your wheel interior clearance to the wheel clearance diagram in the installation instructions before purchase). Combining the high clamping efficiency of the TC6R caliper with 16" diameter directional vane rotors and high friction BP-10 compound brake pads, TC6R kits provide the braking power necessary to control the higher rotating weight of ultra-sized wheels and tires, especially with high GVW vehicles and vehicles used for towing. TC6R kits are engineer application to be fully compatible with the OE master cylinder output and retain full function of the ABS system.
Specifications
| Spindle Type: |
Factory Disc Spindle |
| Mount Type: |
Radial |
| Caliper Type: |
6 - Black Powder Coat |
| Rotor Diameter: |
16 |
| Min Wheel Diameter Req'd*: |
20 |
| Calipers |
|---|
| Left Hand - Part No: |
120-14320-RS |
| Right Hand - Part No: |
120-14319-RS |
| Type: |
TC6 |
| Finish Color: |
Black Powder Coat |
| Piston Count: |
6 |
| Piston Area (In²): |
6.90 |
| Piston Type: |
Stainless |
| Mount Type: |
Radial |
| Brake Pad Plate: |
6318 |
| Brake Pad Area (In²): |
13 |
| Brake Pad Volume (In³): |
6 |
| Pad Compound: |
BP-10 |
| Rotors |
|---|
| Left Hand - Part No: |
160-8954-GTB |
| Right Hand - Part No: |
160-8953-GTB |
| Type: |
GT 60 Curved Vane |
| Style: |
GT Slotted |
| Surface Finish: |
Black Electro Coat |
| Material: |
Spec-37 Iron |
| Outside Diameter (in): |
16 |
| Width (in): |
1.38 |
| Vane Count: |
60 CV |
| Design Type: |
GT-BLK |
| Bedded: |
No |
| Dynamically Balanced: |
Yes |
| Rotor Hats |
|---|
| Hat - Part No: |
170-8878 |
| Type: |
Truck Hat - Standard |
| Material: |
Aluminum |
| Finish Color: |
Black E-Coat |
| Hat Offset Dimension (in): |
1.55 |
| Bolt Circle 1: |
8 x 6.50 |
| Stud Diameter - BC 1: |
0.63 |
| Stud Diameter - BC 2: |
0 |
| Stud Diameter - BC 3: |
0 |
Vehicle Fitments:
| Year |
Make |
Model |
Submodel |
| 2002 - 2004 |
Chevrolet |
Avalanche 2500 |
Base |
| 2005 - 2006 |
Chevrolet |
Avalanche 2500 |
LS, LT |
| 2005 |
Chevrolet |
Silverado 1500 HD |
Base |
| 2001 - 2005 |
Chevrolet |
Silverado 1500 HD |
LS |
| 2001 - 2006 |
Chevrolet |
Silverado 1500 HD |
LT |
| 2003 - 2004 |
Chevrolet |
Silverado 2500 |
400 SS |
| 2001 - 2002 |
Chevrolet |
Silverado 2500 |
Cheyenne, Custom |
| 1999 - 2004 |
Chevrolet |
Silverado 2500 |
LS, Base, LT |
| 2004 |
Chevrolet |
Silverado 2500 |
WT |
| 2001 - 2005 |
Chevrolet |
Silverado 2500 HD |
Base |
| 2001 - 2006 |
Chevrolet |
Silverado 2500 HD |
LS |
| 2001 - 2010 |
Chevrolet |
Silverado 2500 HD |
LT |
| 2007 - 2010 |
Chevrolet |
Silverado 2500 HD |
LTZ |
| 2003 - 2010 |
Chevrolet |
Silverado 2500 HD |
WT |
| 2006 |
Chevrolet |
Silverado 3500 |
HD |
| 2001 - 2006 |
Chevrolet |
Silverado 3500 |
LS, Base, LT |
| 2004 - 2006 |
Chevrolet |
Silverado 3500 |
WT |
| 2007 - 2010 |
Chevrolet |
Silverado 3500 HD |
LT, WT, LTZ |
| 2000 - 2009 |
Chevrolet |
Suburban 2500 |
Base |
| 2000 - 2013 |
Chevrolet |
Suburban 2500 |
LT, LS |
| 2007 |
Chevrolet |
Suburban 2500 |
LTZ |
| 2001 - 2006 |
GMC |
Sierra 1500 HD |
SLE, SLT |
| 2002 - 2004 |
GMC |
Sierra 2500 |
Base |
| 1999 - 2002 |
GMC |
Sierra 2500 |
SL |
| 1999 - 2004 |
GMC |
Sierra 2500 |
SLE, SLT |
| 2003 - 2004 |
GMC |
Sierra 2500 |
WT |
| 2002 - 2005 |
GMC |
Sierra 2500 HD |
Base |
| 2001 - 2006 |
GMC |
Sierra 2500 HD |
SL |
| 2001 - 2010 |
GMC |
Sierra 2500 HD |
SLT, SLE |
| 2003 - 2010 |
GMC |
Sierra 2500 HD |
WT |
| 2002 - 2005 |
GMC |
Sierra 3500 |
Base |
| 2001 - 2006 |
GMC |
Sierra 3500 |
SLE, SLT, SL |
| 2004 - 2006 |
GMC |
Sierra 3500 |
WT |
| 2007 - 2010 |
GMC |
Sierra 3500 HD |
WT, SLT, SLE |
| 2000 - 2013 |
GMC |
Yukon XL 2500 |
SLE, SLT |
| 2003 - 2009 |
Hummer |
H2 |
Base |
| 2005 - 2009 |
Hummer |
H2 |
Luxury, Adventure |
| 2007 |
Hummer |
H2 |
Special Edition |
