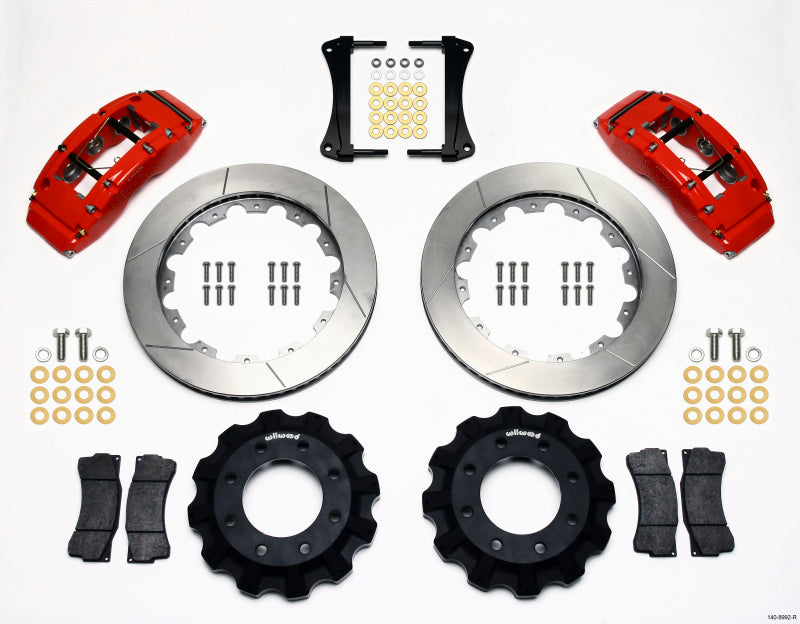

Wilwood TC6R Front Kit,16.00",Red,1999-2014 GM Truck/SUV 1500

TC6R Big Brake Truck Front Brake Kit

TC6R calipers are purpose built to provide unsurpassed braking capacity on trucks and SUVs upgraded to larger than stock wheels. TC6R kits can fit many 20and larger wheels (Verify your wheel interior clearance to the wheel clearance diagram in the installation instructions before purchase). Combining the high clamping efficiency of the TC6R caliper with 16 diameter directional vane rotors and high friction BP-10 compound brake pads, TC6R kits provide the braking power necessary to control the higher rotating weight of ultra-sized wheels and tires, especially with high GVW vehicles and vehicles used for towing. TC6R kits are engineer application to be fully compatible with the OE master cylinder output and retain full function of the ABS system.

Specifications

Spindle Type: Factory Disc Spindle

Mount Type: Radial

Caliper Type: 6 - Red Powder Coat

Rotor Diameter: 16

Min Wheel Diameter Req'd*: 20

Calipers

Left Hand - Part No: 120-14318-RSR

Right Hand - Part No: 120-14317-RSR

Type: TC6

Finish Color: Red Powder Coat

Piston Count: 6

Piston Area (In²): 5.40

Piston Type: Stainless

Mount Type: Radial

Brake Pad Plate: 6318

Brake Pad Area (In²): 13

Brake Pad Volume (In³): 6

Pad Compound: BP-10

Rotors

Left Hand - Part No: 160-8954-GTB

Right Hand - Part No: 160-8953-GTB

Type: GT 60 Curved Vane

Style: GT Slotted

Surface Finish: Black Electro Coat

Material: Spec-37 Iron

Outside Diameter (in): 16

Width (in): 1.38

Vane Count: 60 CV

Design Type: GT-BLK

Bedded: No

Dynamically Balanced: Yes

Rotor Hats

Hat - Part No: 170-8960

Type: Truck Hat - Standard

Material: Aluminum

Finish Color: Black E-Coat

Hat Offset Dimension (in): 0.81

Bolt Circle 1: 6 X 5.50

Stud Diameter - BC 1: 0.63

Stud Diameter - BC 2: 0

Stud Diameter - BC 3: 0

Vehicle Fitments:
