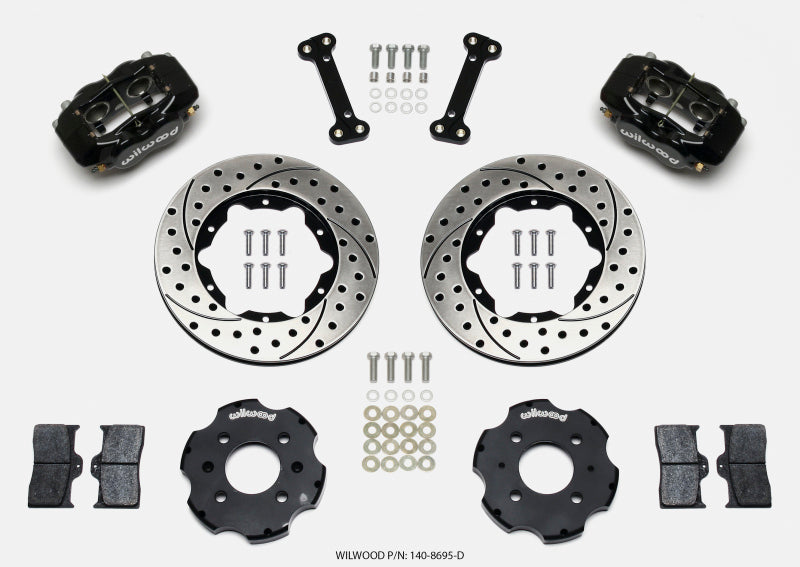

Wilwood FDL Front Hat Kit, 11.00", Drilled, Integra/Civic w/Fac.240mm Rtr
Front Brake Kit
Forged Dynalite Big Brake Front Brake Kit (Hat)
Forged Billet Dynalite calipers, oversized rotors, and high performance Wilwood brake pads deliver big brake stopping power with high-tech style for front wheel drive sport compacts. These kits are the perfect complement to wheel, tire, and suspension upgrades. Options for caliper finish and rotor design make it simple to match the brake response and style preferences on all types of daily drivers, race vehicles, and ultra-styled show machines. Each kit is engineered specific for each vehicle. They are fully compatible with OE master cylinder output while retaining the full factory ABS functions.
Specifications
| Spindle Type: | Factory Disc Spindle |
| Mount Type: | Lug |
| Caliper Type: | 4 - Black Powder Coat |
| Rotor Diameter: | 11 |
| Min Wheel Diameter Req'd*: | 15 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-13839-BK |
| Right Hand - Part No: | 120-13839-BK |
| Type: | Forged Dynalite Internal |
| Finish Color: | Black Powder Coat |
| Piston Count: | 4 |
| Piston Area (In²): | 3.00 |
| Piston Type: | Stainless |
| Mount Type: | Lug |
| Brake Pad Plate: | 7112 |
| Brake Pad Area (In²): | 6.36 |
| Brake Pad Volume (In³): | 2.1 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-7100-BK |
| Right Hand - Part No: | 160-7099-BK |
| Type: | SRP Drilled Rotor |
| Style: | SRP Drilled & Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Iron |
| Outside Diameter (in): | 11 |
| Width (in): | 0.81 |
| Vane Count: | 30 V |
| Design Type: | SRP-BLK |
| Bedded: | No |
| Dynamically Balanced: | No |
| Rotor Hats | |
|---|---|
| Hat - Part No: | 170-8643 |
| Type: | Drag Hat - Shallow Offset |
| Material: | Aluminum |
| Finish Color: | Black E-Coat |
| Hat Offset Dimension (in): | 0.66 |
| Bolt Circle 1: | 4 x 3.93 |
| Stud Diameter - BC 1: | 0.5 |
| Stud Diameter - BC 2: | 0 |
| Stud Diameter - BC 3: | 0 |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1989 - 2000 | Honda | Civic | CX, Si |
| 1990 - 2000 | Honda | Civic | EX |
| 1997 - 2000 | Honda | Civic | EX-R |
| 1999 - 2000 | Honda | Civic | EX-R SIR |
| 1998 - 2000 | Honda | Civic | GX |
| 1996 - 2000 | Honda | Civic | HX |
| 1988 - 2000 | Honda | Civic | LX, DX |
| 1988 - 1991 | Honda | Civic | RT 4WD, Base |
| 1988 | Honda | Civic | SE |
| 1999 | Honda | Civic | Value Package |
| 1992 - 1995 | Honda | Civic | VX |
| 1988 - 1989 | Honda | Civic | Wagovan |
| 1993 - 1997 | Honda | Civic del Sol | S, Si |
| 1994 - 1997 | Honda | Civic del Sol | VTEC |
| 1989 - 1991 | Honda | CRX | Base |
| 1988 | Honda | CRX | DX |
| 1988 - 1991 | Honda | CRX | Si, HF |
Wilwood FDL Front Hat Kit, 11.00", Drilled, Integra/Civic w/Fac.240mm Rtr
Sale price$950.86 USD
Regular price$1,062.17 USD
