Wilwood FDL Front Kit, 12.19",Drill-Zinc,67-69 Camaro,64-72 Nova,Chevelle

Front Brake Kit

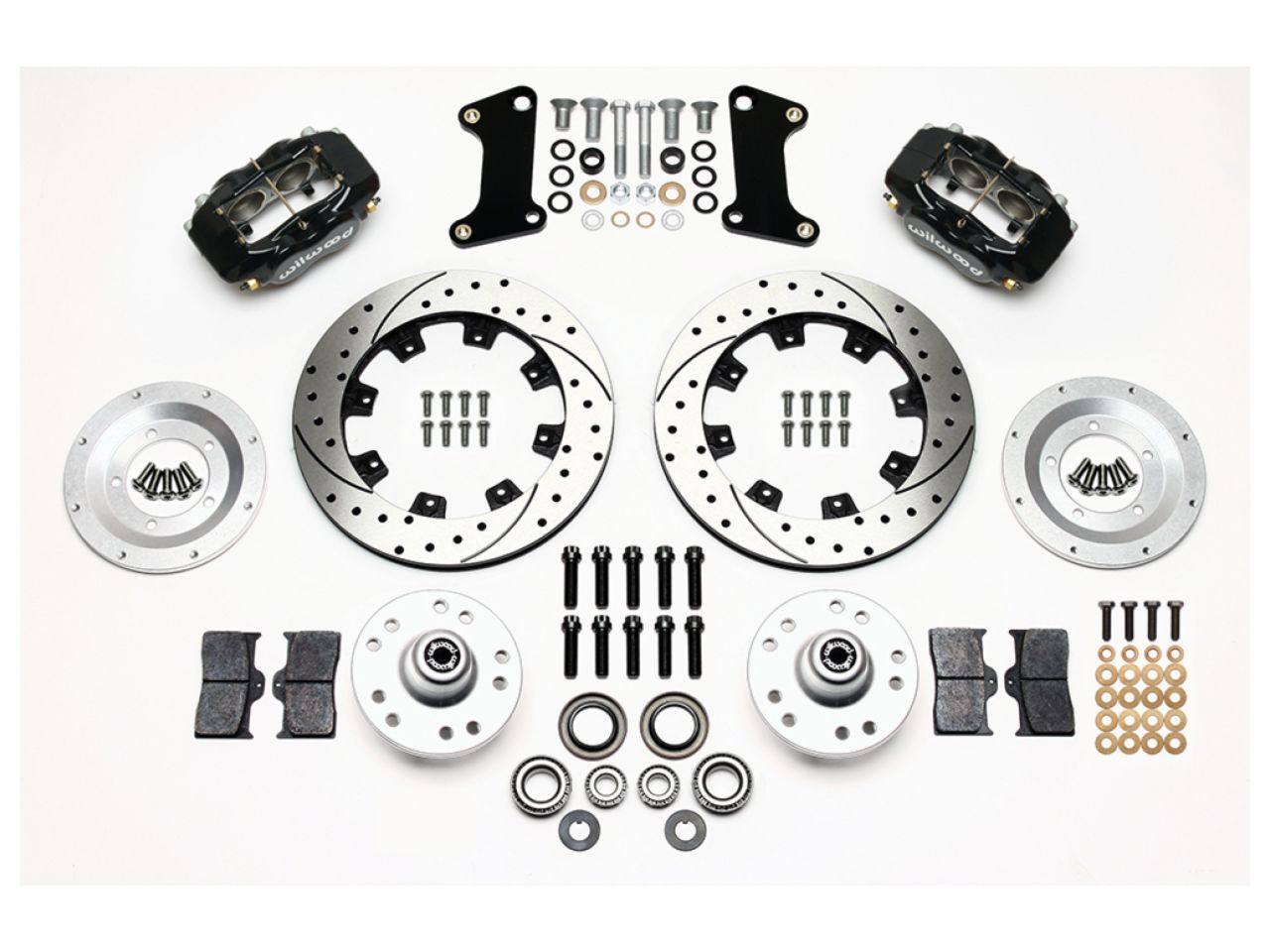

Forged Dynalite Big Brake Front Brake Kit (Hub)
FDL Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Forged billet Dynalite calipers, 12.19" diameter rotors, and high performance Wilwood brake.
Specifications
OE Hub Offset: | +.19 |
Spindle Type: | Factory Drum Spindle Drop Spindle Factory Disc Spindle |
Mount Type: | Lug |
Caliper Type: | 4 - Black Powder Coat |
Rotor Diameter: | 12.19 |
Min Wheel Diameter Req'd*: | 15 |
Calipers | |
---|---|
Left Hand - Part No: | 120-13844-BK |
Right Hand - Part No: | 120-13844-BK |
Type: | Forged Dynalite Internal |
Finish Color: | Black Powder Coat |
Piston Count: | 4 |
Piston Area (In²): | 4.80 |
Piston Type: | Stainless |
Mount Type: | Lug |
Brake Pad Plate: | 7112 |
Brake Pad Area (In²): | 6.36 |
Brake Pad Volume (In³): | 2.1 |
Pad Compound: | BP-10 |
Rotors | |
---|---|
Left Hand - Part No: | 160-7104 |
Right Hand - Part No: | 160-7103 |
Type: | SRP-Z Drilled Rotor |
Style: | SRP Drilled & Slotted |
Surface Finish: | Zinc Plate |
Material: | Iron |
Outside Diameter (in): | 12.19 |
Width (in): | 0.81 |
Vane Count: | 32 V |
Design Type: | SRP |
Bedded: | No |
Dynamically Balanced: | No |
Hubs | |
---|---|
Hub - Part No: | 270-7274 |
Type: | Hub - Vented Rotor Offset |
Material: | Aluminum |
Finish Color: | Bare |
Mount Style: | Adapter |
Bolt Circle 1: | 5 x 4.50 |
Bolt Circle 2: | 5 x 4.75 |
Stud Diameter - BC 1: | 1/2-20 |
Stud Diameter - BC 2: | 1/2-20 |
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
1973 - 1974 | Buick | Apollo | Base |
1965 - 1967 | Buick | Gran Sport | Base |
1971 | Buick | Riviera | Base, Gran Sport |
1970 - 1972 | Buick | Skylark | 350 |
1964 - 1972 | Buick | Skylark | Base |
1968 - 1972 | Buick | Skylark | Custom |
1967 - 1969 | Chevrolet | Camaro | RS, Base, Z28, SS |
1967 - 1968 | Chevrolet | Chevelle | 300 |
1967 - 1969 | Chevrolet | Chevelle | 300 Deluxe |
1967 | Chevrolet | Chevelle | Deluxe |
1969 - 1972 | Chevrolet | Chevelle | Greenbrier, Concours Estate |
1968 - 1972 | Chevrolet | Chevelle | Nomad, Malibu |
1967 - 1972 | Chevrolet | Chevelle | SS, Base, Concours |
1964 - 1967 | Chevrolet | Chevy II | Base, Nova SS |
1964 - 1968 | Chevrolet | Chevy II | Nova |
1967 - 1972 | Chevrolet | El Camino | Base |
1968 - 1972 | Chevrolet | El Camino | SS, Custom |
1970 - 1972 | Chevrolet | Monte Carlo | Base |
1969 - 1974 | Chevrolet | Nova | Base |
1973 - 1974 | Chevrolet | Nova | Custom |
1971 - 1972 | GMC | Sprint | Base |
1972 | GMC | Sprint | Custom |
1967 - 1971 | Oldsmobile | 442 | Base |
1967 - 1972 | Oldsmobile | Cutlass | Base |
1972 | Oldsmobile | Cutlass | Cruiser |
1968 - 1972 | Oldsmobile | Cutlass | S |
1967 | Oldsmobile | Cutlass | Turnpike Cruiser, Holiday |
1971 - 1972 | Oldsmobile | Cutlass Supreme | Base |
1973 - 1974 | Oldsmobile | Omega | Base |
1967 - 1972 | Oldsmobile | Vista Cruiser | Base |
1967 | Oldsmobile | Vista Cruiser | Custom |
1967 | Pontiac | Firebird | 326 |
1968 - 1969 | Pontiac | Firebird | 350 |
1969 | Pontiac | Firebird | 350 HO, Trans Am |
1967 - 1969 | Pontiac | Firebird | Base, 400, Sprint |
1967 - 1968 | Pontiac | Firebird | HO |
1969 | Pontiac | Grand Prix | Base |
1967 - 1971 | Pontiac | GTO | Base |
1970 - 1971 | Pontiac | GTO | The Judge |
1964 - 1972 | Pontiac | LeMans | Base |
1972 | Pontiac | LeMans | Luxury |
1969 - 1970 | Pontiac | LeMans | Safari |
1970 - 1972 | Pontiac | LeMans | Sport |
1971 | Pontiac | LeMans | T37 |
1967 | Pontiac | Tempest | Base, Safari, Custom |
1971 - 1974 | Pontiac | Ventura | Base |
1973 - 1974 | Pontiac | Ventura | Custom |
1974 | Pontiac | Ventura | GTO |

Wilwood FDL Front Kit, 12.19",Drill-Zinc,67-69 Camaro,64-72 Nova,Chevelle
Sale price$1,297.43 USD
Regular price$1,450.32 USD
