Wilwood FDL Front Kit, 12.19", Red, 67-69 Camaro, 64-72 Nova, Chevelle
Front Brake Kit

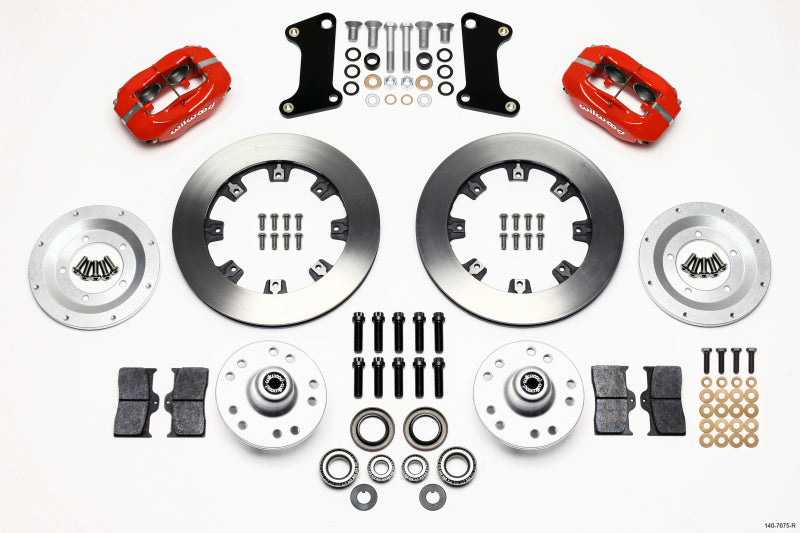

Forged Dynalite Big Brake Front Brake Kit (Hub)
FDL Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Forged billet Dynalite calipers, 12.19" diameter rotors, and high performance Wilwood brake pads generate big brake stopping power to compliment wheel, tire, and suspension upgrades on all types of custom show and performance street / strip machines. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines.
Specifications
| OE Hub Offset: | +.19 |
| Spindle Type: | Factory Drum SpindleDrop Spindle Factory Disc Spindle |
| Mount Type: | Lug |
| Caliper Type: | 6 - Red Powder Coat |
| Rotor Diameter: | 12.19 |
| Min Wheel Diameter Req'd*: | 15 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-13844-RD |
| Right Hand - Part No: | 120-13844-RD |
| Type: | Forged Dynalite Internal |
| Finish Color: | Red Powder Coat |
| Piston Count: | 4 |
| Piston Area (In²): | 4.80 |
| Piston Type: | Stainless |
| Mount Type: | Lug |
| Brake Pad Plate: | 7112 |
| Brake Pad Area (In²): | 6.36 |
| Brake Pad Volume (In³): | 2.1 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-5843 |
| Right Hand - Part No: | 160-5843 |
| Type: | Ultralite HP 32 |
| Style: | Plain Face |
| Surface Finish: | Plain |
| Material: | Iron |
| Outside Diameter (in): | 12.19 |
| Width (in): | 0.81 |
| Vane Count: | 32 V |
| Design Type: | ULHP |
| Bedded: | No |
| Dynamically Balanced: | No |
| Hubs | |
|---|---|
| Hub - Part No: | 270-7274 |
| Type: | Hub - Vented Rotor Offset |
| Material: | Aluminum |
| Finish Color: | Bare |
| Mount Style: | Adapter |
| Bolt Circle 1: | 5 x 4.50 |
| Bolt Circle 2: | 5 x 4.75 |
| Stud Diameter - BC 1: | 1/2-20 |
| Stud Diameter - BC 2: | 1/2-20 |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1973 - 1974 | Buick | Apollo | Base |
| 1965 - 1967 | Buick | Gran Sport | Base |
| 1971 | Buick | Riviera | Gran Sport, Base |
| 1970 - 1972 | Buick | Skylark | 350 |
| 1964 - 1972 | Buick | Skylark | Base |
| 1968 - 1972 | Buick | Skylark | Custom |
| 1967 - 1969 | Chevrolet | Camaro | Z28, SS, RS, Base |
| 1967 - 1968 | Chevrolet | Chevelle | 300 |
| 1967 - 1969 | Chevrolet | Chevelle | 300 Deluxe |
| 1967 | Chevrolet | Chevelle | Deluxe |
| 1969 - 1972 | Chevrolet | Chevelle | Greenbrier, Concours Estate |
| 1968 - 1972 | Chevrolet | Chevelle | Malibu, Nomad |
| 1967 - 1972 | Chevrolet | Chevelle | SS, Base, Concours |
| 1964 - 1968 | Chevrolet | Chevy II | Nova |
| 1964 - 1967 | Chevrolet | Chevy II | Nova SS, Base |
| 1967 - 1972 | Chevrolet | El Camino | Base |
| 1968 - 1972 | Chevrolet | El Camino | Custom, SS |
| 1970 - 1972 | Chevrolet | Monte Carlo | Base |
| 1969 - 1974 | Chevrolet | Nova | Base |
| 1973 - 1974 | Chevrolet | Nova | Custom |
| 1971 - 1972 | GMC | Sprint | Base |
| 1972 | GMC | Sprint | Custom |
| 1967 - 1971 | Oldsmobile | 442 | Base |
| 1967 - 1972 | Oldsmobile | Cutlass | Base |
| 1972 | Oldsmobile | Cutlass | Cruiser |
| 1967 | Oldsmobile | Cutlass | Holiday, Turnpike Cruiser |
| 1968 - 1972 | Oldsmobile | Cutlass | S |
| 1971 - 1972 | Oldsmobile | Cutlass Supreme | Base |
| 1973 - 1974 | Oldsmobile | Omega | Base |
| 1967 - 1972 | Oldsmobile | Vista Cruiser | Base |
| 1967 | Oldsmobile | Vista Cruiser | Custom |
| 1967 | Pontiac | Firebird | 326 |
| 1968 - 1969 | Pontiac | Firebird | 350 |
| 1969 | Pontiac | Firebird | 350 HO, Trans Am |
| 1967 - 1969 | Pontiac | Firebird | 400, Base, Sprint |
| 1967 - 1968 | Pontiac | Firebird | HO |
| 1969 | Pontiac | Grand Prix | Base |
| 1967 - 1971 | Pontiac | GTO | Base |
| 1970 - 1971 | Pontiac | GTO | The Judge |
| 1964 - 1972 | Pontiac | LeMans | Base |
| 1972 | Pontiac | LeMans | Luxury |
| 1969 - 1970 | Pontiac | LeMans | Safari |
| 1970 - 1972 | Pontiac | LeMans | Sport |
| 1971 | Pontiac | LeMans | T37 |
| 1967 | Pontiac | Tempest | Custom, Safari, Base |
| 1971 - 1974 | Pontiac | Ventura | Base |
| 1973 - 1974 | Pontiac | Ventura | Custom |
| 1974 | Pontiac | Ventura | GTO |
Wilwood FDL Front Kit, 12.19", Red, 67-69 Camaro, 64-72 Nova, Chevelle
Sale price$1,003.05 USD
Regular price$1,120.62 USD
