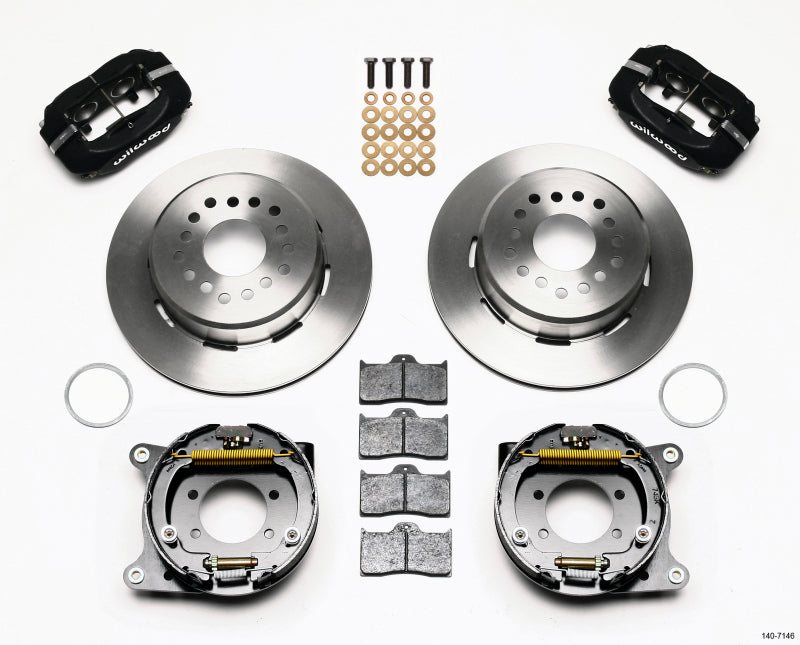

Wilwood FDL P/S Park Brake Kit, Ford 8.8 w/2.5" Offset-5 Lug
Rear Brake Kit - Rear Kit
Forged Dynalite Rear Parking Brake Kit
This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
Specifications
| Rear End Axle: | 8.8 Ford |
| Axle Offset: | 2.5 |
| Mount Type: | Lug |
| Caliper Type: | 4 - Black Powder Coat |
| Rotor Diameter: | 12.19 |
| Min Wheel Diameter Req'd*: | 15 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-13839-BK |
| Right Hand - Part No: | 120-13839-BK |
| Type: | Forged Dynalite Internal |
| Finish Color: | Black Powder Coat |
| Piston Count: | 4 |
| Piston Area (In²): | 3.00 |
| Piston Type: | Stainless |
| Mount Type: | Lug |
| Brake Pad Plate: | 7112 |
| Brake Pad Area (In²): | 6.36 |
| Brake Pad Volume (In³): | 2.1 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-7508 |
| Right Hand - Part No: | 160-7508 |
| Type: | Ultralite HP 32 & Hat |
| Style: | Plain Face |
| Surface Finish: | Plain |
| Material: | Iron |
| Outside Diameter (in): | 12.19 |
| Width (in): | 0.81 |
| Vane Count: | 32 V |
| Design Type: | ULHP |
| Bedded: | No |
| Dynamically Balanced: | No |
Wilwood FDL P/S Park Brake Kit, Ford 8.8 w/2.5" Offset-5 Lug
Sale price$1,025.64 USD
Regular price$1,078.69 USD
