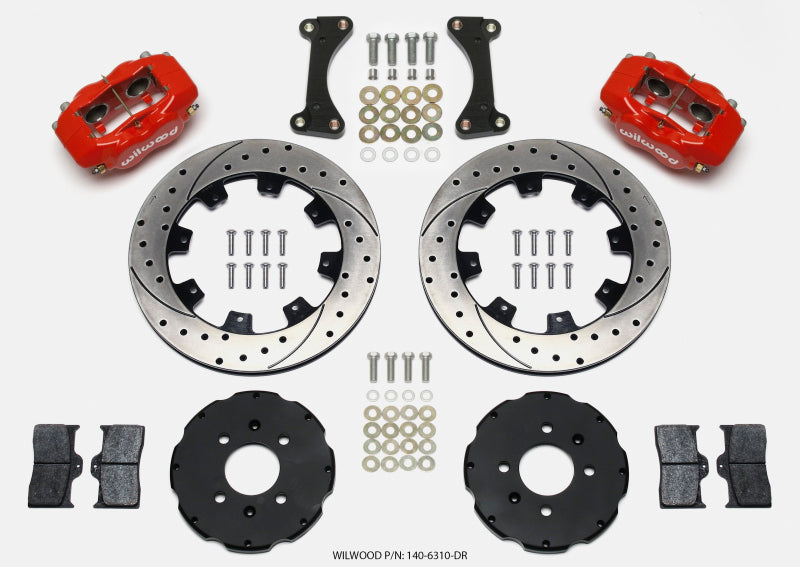

Wilwood Forged Dynalite Big Brake Front Brake Kit (Hat)

Forged Dynalite Big Brake Front Brake Kit (Hat)

Forged Billet Dynalite calipers, oversized rotors, and high performance Wilwood brake pads deliver big brake stopping power with high-tech style for front wheel drive sport compacts. These kits are the perfect complement to wheel, tire, and suspension upgrades. Options for caliper finish and rotor design make it simple to match the brake response and style preferences on all types of daily drivers, race vehicles, and ultra-styled show machines. Each kit is engineered specific for each vehicle. They are fully compatible with OE master cylinder output while retaining the full factory ABS functions.

Specifications

Spindle Type: Factory Disc Spindle

Mount Type: Lug

Caliper Type: 4 - Red Powder Coat

Rotor Diameter: 12.19

Min Wheel Diameter Req'd*: 15

Calipers

Left Hand - Part No: 120-13839-RD

Right Hand - Part No: 120-13839-RD

Type: Forged Dynalite Internal

Finish Color: Red Powder Coat

Piston Count: 4

Piston 1 Bore (in): 1.38

Piston 2 Bore (in): 1.38

Piston Area (In²): 3.00

Piston Type: Stainless

Mount Type: Lug

Brake Pad Plate: 7112

Brake Pad Area (In²): 6.36

Brake Pad Volume (In³): 2.1

Pad Compound: BP-10

Rotors

Left Hand - Part No: 160-7104-BK

Right Hand - Part No: 160-7103-BK

Type: SRP Drilled Rotor

Style: SRP Drilled & Slotted

Surface Finish: Black Electro Coat

Material: Iron

Outside Diameter (in): 12.19

Width (in): 0.81

Vane Count: 32 V

Design Type: SRP-BLK

Bedded: No

Dynamically Balanced: No

Rotor Hats

Hat - Part No: 170-6288

Type: Big Brake Hat - Short Offset

Material: Aluminum

Finish Color: Black E-Coat

Hat Offset Dimension (in): 0.45

Bolt Circle 1: 4 x 3.93

Stud Diameter - BC 1: 0.5

Stud Diameter - BC 2: 0

Stud Diameter - BC 3: 0

Vehicle Fitments:
