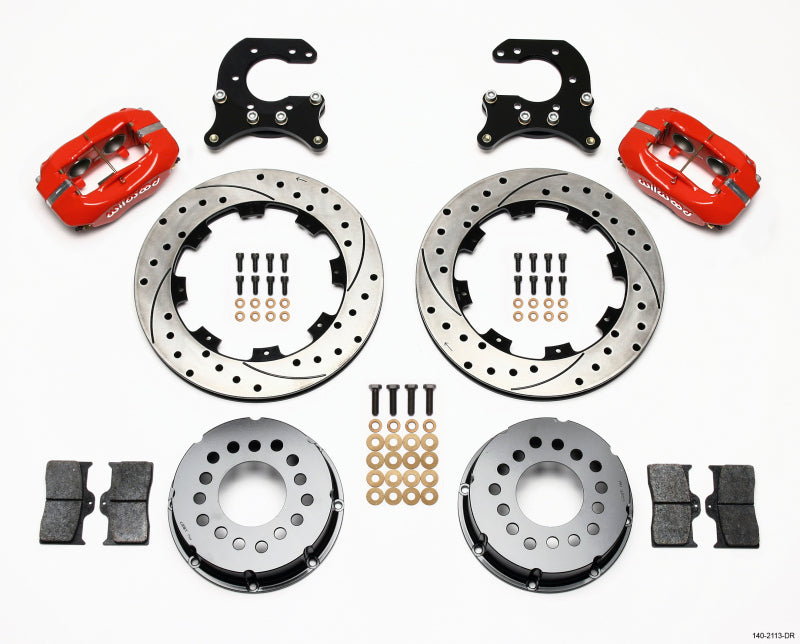

Wilwood FDL P/S Rear Kit,Drilled, Red Small Ford 2.66" Offset
Forged Dynalite Pro Series Rear Brake Kit
FDL Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications where individual wheel parking brake assemblies are not required. Forged billet Dynalite four piston calipers, two-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of off-road, competition, and other customized applications. FDL calipers can be optioned with a full range of finishes to reflect personalized style. Rotor choices provide options for high-tech show winning style, or heavy weight durability and cooling capacity for high heat competition.
Specifications
Rear End Axle: Small Ford
Axle Offset: 2.66
Mount Type: Lug
Caliper Type: 4 - Red Powder Coat
Rotor Diameter: 12.19
Min Wheel Diameter Req'd*: 15
Calipers
Left Hand - Part No: 120-13839-RD
Right Hand - Part No: 120-13839-RD
Type: Forged Dynalite Internal
Finish Color: Red Powder Coat
Piston Count: 4
Piston 1 Bore (in): 1.38
Piston 2 Bore (in): 1.38
Piston Area (In²): 3.00
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 7112
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 2.1
Pad Compound: BP-10
Rotors
Left Hand - Part No: 160-7106-BK
Right Hand - Part No: 160-7105-BK
Type: SRP Drilled Rotor
Style: SRP Drilled & Slotted
Surface Finish: Black Electro Coat
Material: Iron
Outside Diameter (in): 12.19
Width (in): 0.81
Vane Count: 32 V
Design Type: SRP-BLK
Bedded: No
Dynamically Balanced: No
Rotor Hats
Hat - Part No: 170-1827
Type: Pro-Street Hat - Standard
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 2
Bolt Circle 1: 5 X 4.50
Bolt Circle 2: 5 X 4.75
Bolt Circle 3: 5 X 5.00
Stud Diameter - BC 1: 0.52
Stud Diameter - BC 2: 0.52
Stud Diameter - BC 3: 0.52
