Wilwood Kit,Front,Camaro/Nova,67-72,AERO6,15.00

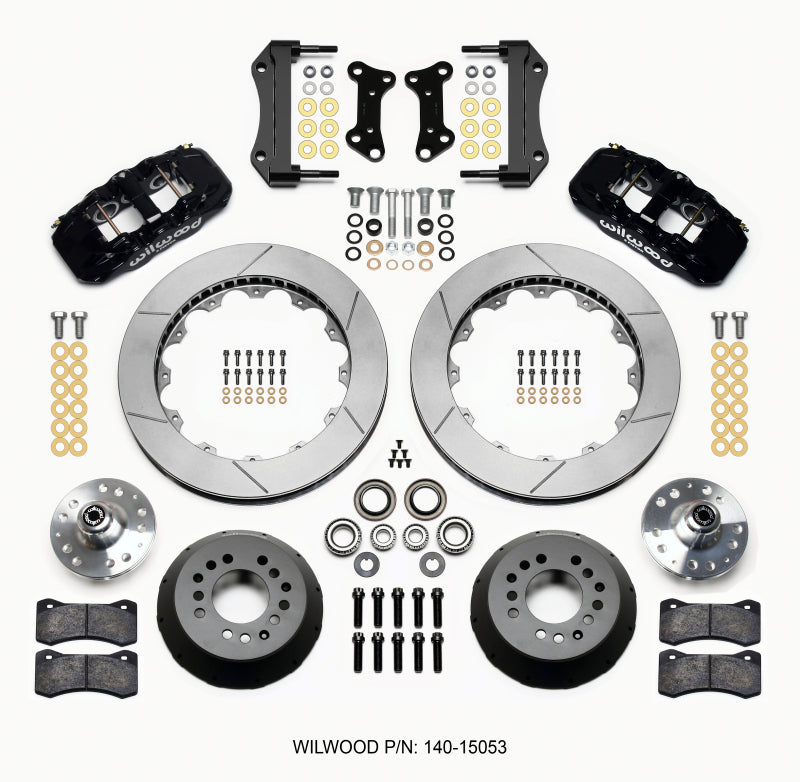

AERO6 Big Brake Front Brake Kit
AERO6 calipers were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. For cars, its the biggest of the big providing big brake performance for show and dual purpose street and track vehicles. For trucks and SUVs, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. Directional staggered vane 14.00 to 14.25rotors provide maximum cooling for sustained high heat durability.
Specifications
OE Hub Offset: +.38
Spindle Type: Factory Drum Spindle Drop Spindle Factory Disc Spindle
Mount Type: Radial
Caliper Type: 6 - Black Powder Coat
Rotor Diameter: 15
Min Wheel Diameter Req'd*: 19
Calipers
Left Hand - Part No: 120-13290-BK
Right Hand - Part No: 120-13289-BK
Type: AERO6
Finish Color: Black Powder Coat
Piston Count: 6
Piston 1 Bore(in): 1.62
Piston 2 Bore(in): 1.12
Piston 3 Bore(in): 1.12
Piston Area (In²): 4.04
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 6617
Brake Pad Area (In²): 11.1
Brake Pad Volume (In³): 5.2
Pad Compound: BP-20
Rotors
Left Hand - Part No: 160-14634
Right Hand - Part No: 160-14633
Type: GT 60 Curved Vane
Style: GT Slotted
Surface Finish: Plain
Material: Spec-37 Iron
Outside Diameter (in): 15
Width (in): 1.25
Vane Count: 72 CV
Design Type: GT
Bedded: No
Dynamically Balanced: Yes
Rotor Hats
Hat - Part No: 170-7467
Type: Big Brake Hat - Flared Bell
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 1.75
Bolt Circle 1: 5 x 4.50
Bolt Circle 2: 5 x 4.75
Stud Diameter - BC 1: 0.52
Stud Diameter - BC 2: 0.52
Stud Diameter - BC 3: 0
Hubs
Hub - Part No: 270-7037
Type: Hub - Hat Mount
Material: Aluminum
Finish Color: Bare
Mount Style: Hat
Bolt Circle 1: 5 x 4.50
Bolt Circle 2: 5 x 4.75
Stud Diameter - BC 1: 1/2-20
Stud Diameter - BC 2: 1/2-20
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1973 - 1974 | Buick | Apollo | Base |
| 1965 - 1967 | Buick | Gran Sport | Base |
| 1971 | Buick | Riviera | Gran Sport, Base |
| 1970 - 1972 | Buick | Skylark | 350 |
| 1964 - 1972 | Buick | Skylark | Base |
| 1968 - 1972 | Buick | Skylark | Custom |
| 1967 - 1969 | Chevrolet | Camaro | Z28, SS, RS, Base |
| 1967 - 1968 | Chevrolet | Chevelle | 300 |
| 1967 - 1969 | Chevrolet | Chevelle | 300 Deluxe |
| 1967 - 1972 | Chevrolet | Chevelle | Concours, Base, SS |
| 1967 | Chevrolet | Chevelle | Deluxe |
| 1969 - 1972 | Chevrolet | Chevelle | Greenbrier, Concours Estate |
| 1968 - 1972 | Chevrolet | Chevelle | Malibu, Nomad |
| 1964 - 1968 | Chevrolet | Chevy II | Nova |
| 1964 - 1967 | Chevrolet | Chevy II | Nova SS, Base |
| 1967 - 1972 | Chevrolet | El Camino | Base |
| 1968 - 1972 | Chevrolet | El Camino | Custom, SS |
| 1970 - 1972 | Chevrolet | Monte Carlo | Base |
| 1969 - 1974 | Chevrolet | Nova | Base |
| 1973 - 1974 | Chevrolet | Nova | Custom |
| 1971 - 1972 | GMC | Sprint | Base |
| 1972 | GMC | Sprint | Custom |
| 1967 - 1971 | Oldsmobile | 442 | Base |
| 1967 - 1972 | Oldsmobile | Cutlass | Base |
| 1972 | Oldsmobile | Cutlass | Cruiser |
| 1968 - 1972 | Oldsmobile | Cutlass | S |
| 1967 | Oldsmobile | Cutlass | Turnpike Cruiser, Holiday |
| 1971 - 1972 | Oldsmobile | Cutlass Supreme | Base |
| 1973 - 1974 | Oldsmobile | Omega | Base |
| 1967 - 1972 | Oldsmobile | Vista Cruiser | Base |
| 1967 | Oldsmobile | Vista Cruiser | Custom |
| 1967 | Pontiac | Firebird | 326 |
| 1968 - 1969 | Pontiac | Firebird | 350 |
| 1967 - 1969 | Pontiac | Firebird | Base, 400, Sprint |
| 1967 - 1968 | Pontiac | Firebird | HO |
| 1969 | Pontiac | Firebird | Trans Am, 350 HO |
| 1969 | Pontiac | Grand Prix | Base |
| 1967 - 1971 | Pontiac | GTO | Base |
| 1970 - 1971 | Pontiac | GTO | The Judge |
| 1964 - 1972 | Pontiac | LeMans | Base |
| 1972 | Pontiac | LeMans | Luxury |
| 1969 - 1970 | Pontiac | LeMans | Safari |
| 1970 - 1972 | Pontiac | LeMans | Sport |
| 1971 | Pontiac | LeMans | T37 |
| 1967 | Pontiac | Tempest | Base, Safari, Custom |
| 1971 - 1974 | Pontiac | Ventura | Base |
| 1973 - 1974 | Pontiac | Ventura | Custom |
| 1974 | Pontiac | Ventura | GTO |
