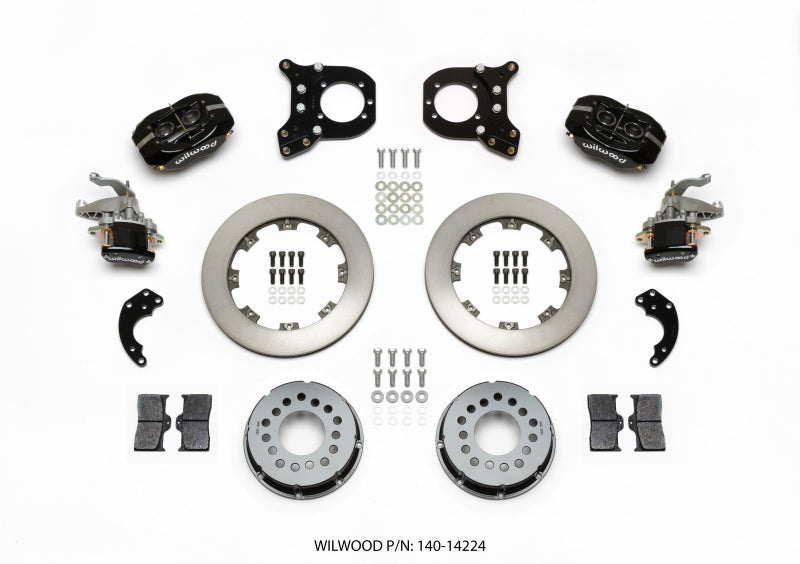

Wilwood FDL P/S Rear Kit,w/MC4 P-Brake,Chev 12 Bolt w/Clip Eliminator
Rear Brake Kit - Rear Kit
Forged Dynalite-MC4 Rear Parking Brake Kit
FDL Pro-Series MC4 Parking rear disc brake kits with parking brake provide a complete solution for popular muscle car rear axles on applications where internal drum parking brake assemblies interfere with c-clip eliminator assemblies. Forged Billet Dynalite four piston calipers, MC4 Parking Brake calipers, two-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of off-road, competition, and other customized applications. FDL calipers can be optioned with a full range of finishes to reflect personalized style. Rotor choices provide options for high-tech show winning style, or heavy weight durability and cooling capacity for high heat competition.
Specifications
| Rear End Axle: | 12 Bolt C-Clip Eliminator |
| Axle Offset: | 2.91 |
| Mount Type: | Lug |
| Caliper Type: | 4 - Black Powder Coat |
| Rotor Diameter: | 12.19 |
| MinWheel Diameter Req'd*: | 15 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-13839-BK |
| Right Hand - Part No: | 120-13839-BK |
| Type: | Forged Dynalite Internal |
| Finish Color: | Black Powder Coat |
| Piston Count: | 4 |
| Piston Area (In²): | 3.00 |
| Piston Type: | Stainless |
| Mount Type: | Lug |
| Brake Pad Plate: | 7112 |
| Brake Pad Area (In²): | 6.36 |
| Brake Pad Volume (In³): | 2.1 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-5844 |
| Right Hand - Part No: | 160-5844 |
| Type: | Ultralite HP 32 |
| Style: | Plain Face |
| Surface Finish: | Plain |
| Material: | Iron |
| Outside Diameter (in): | 12.19 |
| Width (in): | 0.81 |
| Vane Count: | 32 V |
| Design Type: | ULHP |
| Bedded: | No |
| Dynamically Balanced: | No |
| Rotor Hats | |
|---|---|
| Hat - Part No: | 170-1827 |
| Type: | Pro-Street Hat - Standard |
| Material: | Aluminum |
| Finish Color: | Black E-Coat |
| Hat Offset Dimension (in): | 2 |
| Bolt Circle 1: | 5 X 4.50 |
| Bolt Circle 2: | 5 X 4.75 |
| Bolt Circle 3: | 5 X 5.00 |
| Stud Diameter - BC 1: | 0.52 |
| Stud Diameter - BC 2: | 0.52 |
| Stud Diameter - BC 3: | 0.52 |
