Rear Brake Kit - Rear Kit

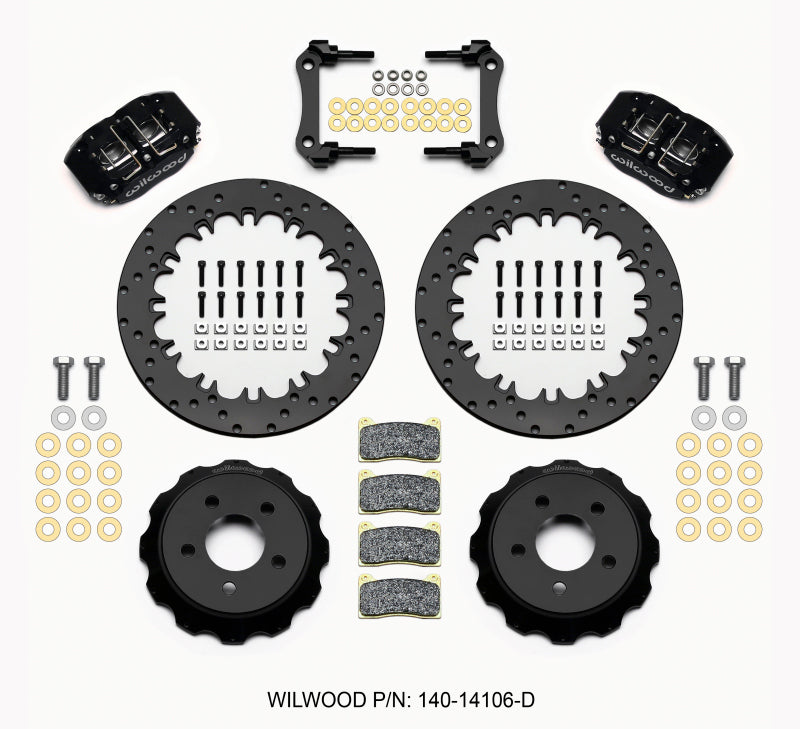

Dynapro Radial Rear Drag Brake Kit
DynaPro4R Drag Race rear brake kits deliver high torque stopping power with a substantial weight savings over the OE brake components. Dynamic mount steel rotors weigh only 5.7 pounds each. They attach to the OE hubs with lightweight forged aluminum hats using our T-nut mounting system that allows the rotor to move independently of the hat during heat cycles. This eliminates stress at the mount points and the subsequent rotor distortion that can otherwise occur with fixed mount steel plate rotors. Dynamic mount rotors also assure full release from the pads to run true and drag free down the track. Parking brakes are also eliminated for additional weight savings. Clamping force is provided by radial mount DynaPro 4R four piston aluminum calipers weighing in at only 4.1 pounds each. DP4R calipers feature stainless steel pistons, internal bore seals, stainless steel bridge wear plates, and allow easy access to the pads for service without removing the calipers from the mount. BP-20 compound SmartPads provide high response and holding power when cold, and resistance to fade when hot. The complete package mounts to the OE upright and hub with full bolt-on installation. This kit is configured for drag racing only and is not recommended for street use. A minimum size 17" wheels are required along with a stainless steel braided flexline kit available separately.
Specifications
| Rear End Axle: |
OEM |
| Axle Offset: |
0 |
| Mount Type: |
Radial |
| Caliper Type: |
4 - Type III Ano |
| Rotor Diameter: |
12.9 |
| Min Wheel Diameter Req'd*: |
17 |
| Calipers |
|---|
| Left Hand - Part No: |
120-9993 |
| Right Hand - Part No: |
120-9993 |
| Type: |
Narrow Dynapro Radial Mount |
| Finish Color: |
Type III Ano |
| Piston Count: |
4 |
| Piston Area (In²): |
4.80 |
| Piston Type: |
Stainless |
| Mount Type: |
Radial |
| Brake Pad Plate: |
7812 |
| Brake Pad Area (In²): |
6.36 |
| Brake Pad Volume (In³): |
2.1 |
| Pad Compound: |
BP-10 |
| Rotors |
|---|
| Left Hand - Part No: |
160-4766 |
| Right Hand - Part No: |
160-4766 |
| Type: |
SRP Drilled Rotor |
| Style: |
Drilled |
| Surface Finish: |
Black Electro Coat |
| Material: |
Steel |
| Outside Diameter (in): |
12.9 |
| Width (in): |
0.38 |
| Vane Count: |
Solid |
| Design Type: |
Solid |
| Bedded: |
No |
| Dynamically Balanced: |
No |
| Rotor Hats |
|---|
| Hat - Part No: |
170-13927 |
| Type: |
Big Brake Hat - Flared Bell |
| Material: |
Aluminum |
| Finish Color: |
Black E-Coat |
| Hat Offset Dimension (in): |
1.2 |
| Bolt Circle 1: |
5 x 4.50 |
| Stud Diameter - BC 1: |
0.63 |
| Stud Diameter - BC 2: |
0 |
| Stud Diameter - BC 3: |
0 |
Vehicle Fitments:
| Year |
Make |
Model |
Submodel |
| 2015 - 2016 |
Ford |
Mustang |
Base |
| 2015 |
Ford |
Mustang |
GT 50 Years Limited Edition |
| 2015 - 2017 |
Ford |
Mustang |
Shelby GT350, GT, EcoBoost, Shelby GT350R, GT Premium, EcoBoost Premium, V6 |
| 2017 |
Ford |
Mustang |
V8 |
