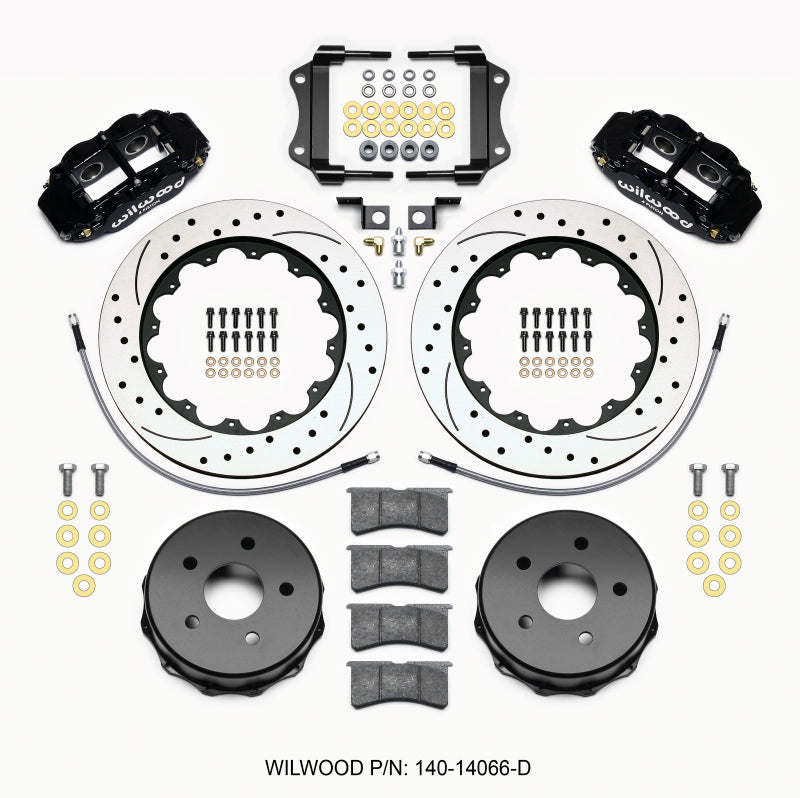

Wilwood FNSL4R Rear Kit, 14.00", Drilled, 2007-up Jeep JK w/Lines
Rear Brake Kit - Rear Kit
Forged Narrow Superlite 4R Big Brake Rear Brake Kit For OE Parking Brake
Forged Narrow Superlite 4R four piston calipers are combined with BP-10 compound pads and 13"-14" rotors in this group of big brake kits for custom high performance street and show machines. This group of specialized kits for cars, trucks, and SUV's retain full use of the OE parking brake, master cylinder output, and ABS where used. FNSL4R rear kits provide complimentary style and performance with 13" and larger front brake upgrades in conjunction with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs enable the builder to match style and performance on all applications.
Specifications
| Rear End Axle: | OEM |
| Axle Offset: | 0 |
| Mount Type: | Radial |
| Caliper Type: | 4 - Black Powder Coat |
| Rotor Diameter: | 14 |
| Min Wheel Diameter Req'd*: | 18 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-14055-BK |
| Right Hand - Part No: | 120-14055-BK |
| Type: | Forged Narrow Superlite 4R |
| Finish Color: | Black Powder Coat |
| Piston Count: | 4 |
| Piston Area (In²): | 3.00 |
| Piston Type: | Stainless |
| Mount Type: | Radial |
| Brake Pad Plate: | 7416 |
| Brake Pad Area (In²): | 8.2 |
| Brake Pad Volume (In³): | 3.8 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-12886-BK |
| Right Hand - Part No: | 160-12885-BK |
| Type: | SRP Drilled Rotor |
| Style: | SRP Drilled & Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Iron |
| Outside Diameter (in): | 14 |
| Width (in): | 0.81 |
| Vane Count: | 36 V |
| Design Type: | SRP-BLK |
| Bedded: | No |
| Dynamically Balanced: | Yes |
| Rotor Hats | |
|---|---|
| Hat - Part No: | 170-13958 |
| Type: | Parking Brake Hat - Standard |
| Material: | Iron |
| Finish Color: | Black E-Coat |
| Hat Offset Dimension (in): | 2.2 |
| Bolt Circle 1: | 5 x 5.00 |
| Stud Diameter - BC 1: | 0 |
| Stud Diameter - BC 2: | 0 |
| Stud Diameter - BC 3: | 0 |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2010 | Jeep | Wrangler | Islander |
| 2007 - 2015 | Jeep | Wrangler | Sahara, Rubicon, Unlimited Rubicon, Unlimited Sahara |
| 2010 - 2015 | Jeep | Wrangler | Sport, Unlimited Sport |
| 2012 | Jeep | Wrangler | Unlimited |
| 2011 | Jeep | Wrangler | Unlimited 70th Anniversary, 70th Anniversary |
| 2012 - 2015 | Jeep | Wrangler | Unlimited Altitude |
| 2015 | Jeep | Wrangler | Unlimited Hard Rock |
| 2010 - 2012 | Jeep | Wrangler | Unlimited Mountain |
| 2014 | Jeep | Wrangler | Unlimited Willys Wheeler, Willys Wheeler |
| 2007 - 2011 | Jeep | Wrangler | Unlimited X, X |
| 2009 | Jeep | Wrangler | X-S |
