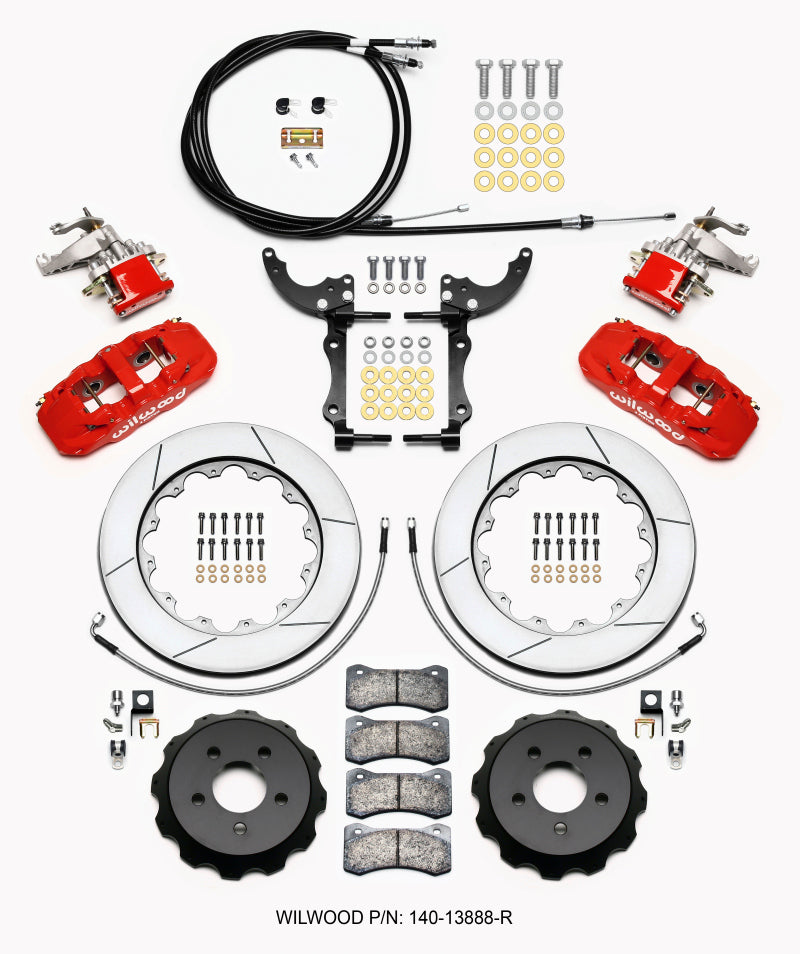

Wilwood AERO4 / MC4 Rear Kit, 14.00, Red, 2015-Up Mustang w/Lines & Cables *Discontinued

Rear Brake Kit - Rear Kit

AERO4-MC4 Big Brake Rear Parking Brake Kit

AERO4-MC4 Big Brake Rear Axle Kits replace the factory disc brakes and use the MC4 parking brake assembly as a compliment to front big brake upgrades on late model high-performance vehicles. High capacity braking from the AERO4R calipers, BP-10 compound pads, and oversized 14.00" rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.

Rear End / Axle Housing Flange
Confirm The Configuration! OEM Flange	Confirm Offset Measurement! AXLE FLANGE CROSS-SECTION

AXLE OFFSET: 0 Check the diagram above and verify this measurement. This kit may be available in several different offsets.

Compatible Vehicles for this Brake Kit

Calipers
Left Hand - Part No:	120-14004-RD
Right Hand - Part No:	120-14004-RD
Type:	AERO4
Finish Color:	Red Powder Coat
Piston Count:	4
Piston Area (In²):	1.98
Piston Type:	Stainless
Mount Type:	Radial
Brake Pad Plate:	6617
Brake Pad Area (In²):	11.1
Brake Pad Volume (In³):	5.2
Pad Compound:	BP-20



Rotors
Left Hand - Part No:	160-12884
Right Hand - Part No:	160-12884
Type:	GT 36 Straight Vane
Style:	GT Slotted
Surface Finish:	Plain
Material:	Iron
Outside Diameter (in):	14
Width (in):	0.81
Vane Count:	36 V
Design Type:	GT
Bedded:	No
Dynamically Balanced:	Yes



Rotor Hats
Hat - Part No:	170-13927
Type:	Big Brake Hat - Flared Bell
Material:	Aluminum
Finish Color:	Black E-Coat
Hat Offset Dimension (in):	1.2
Bolt Circle 1:	5 x 4.50
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:	0.63
Stud Diameter - BC 2:	0
Stud Diameter - BC 3:	0

Caliper Parts
O-ring Kit:	130-2579
Replacement Dustboot:	N-A
Replacement Piston 1:	200-7513
Replacement Piston 2:	200-7513
Replacement Piston 3:	N-A
Replacement Piston 4:	N-A
CrossOver O-Ring Kit:	N-A
Crossover Tube:	N-A
Self-Bleeder Tube:	N-A
Bridge Bolt Kit:	N-A
Wear Plate - Left Hand:	300-5876
Wear Plate - Right Hand:	300-5876
Pad Retainer:	N-A
Bleed Screw Kit:	220-0627

Vehicle Fitments:
