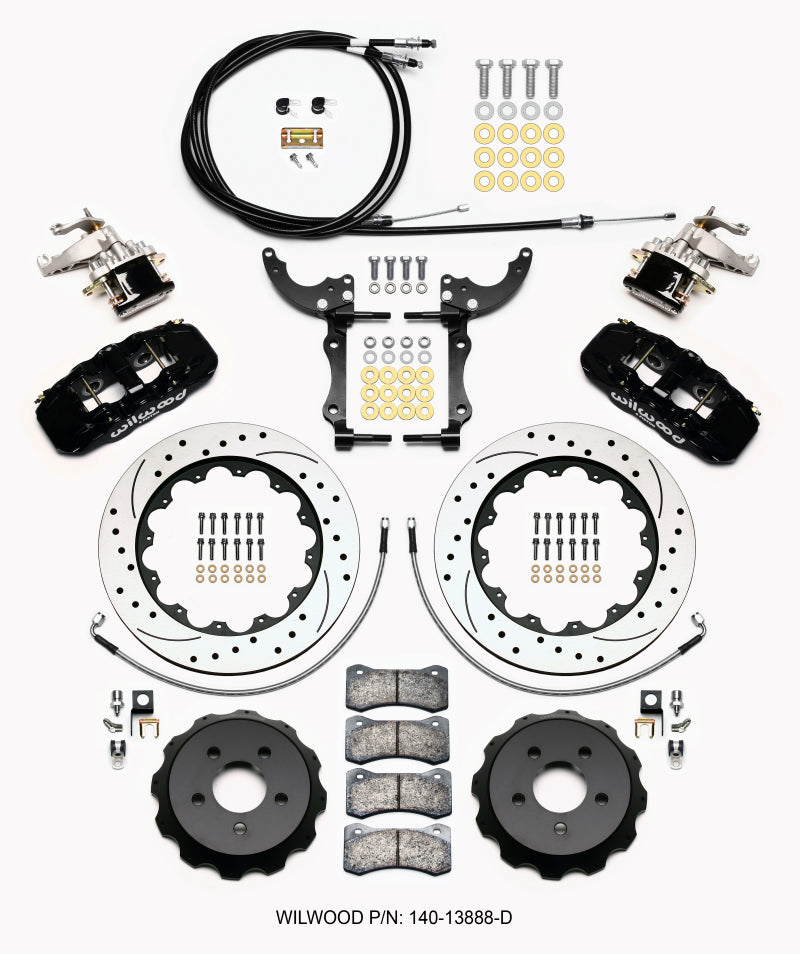

Wilwood Kit,Rear,Mustang,2015-Up,Aero4/MC4,14.00 Rotor,w/Lines/Cables

AERO4-MC4 Big Brake Rear Parking Brake Kit

AERO4-MC4 Big Brake Rear Axle Kits replace the factory disc brakes and use the MC4 parking brake assembly as a compliment to front big brake upgrades on late model high performance vehicles. High capacity braking from the AERO4R calipers, BP-10 compound pads, and oversized 14.00" rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.

Specifications

Rear End Axle: OEM

Axle Offset: 0

Mount Type: Radial

Caliper Type: 4 - Black Powder Coat

Rotor Diameter: 14

Min Wheel Diameter Req'd*: 18

Calipers

Left Hand - Part No: 120-14004-BK

Right Hand - Part No: 120-14004-BK

Type: AERO4

Finish Color: Black Powder Coat

Piston Count: 4

Piston 1 Bore (in): 1.12

Piston 2 Bore (in): 1.12

Piston Area (In²): 1.98

Piston Type: Stainless

Mount Type: Radial

Brake Pad Plate: 6617

Brake Pad Area (In²): 11.1

Brake Pad Volume (In³): 5.2

Pad Compound: BP-10

Rotors

Left Hand - Part No: 160-12886-BK

Right Hand - Part No: 160-12885-BK

Type: SRP Drilled Rotor

Style: SRP Drilled & Slotted

Surface Finish: Black Electro Coat

Material: Iron

Outside Diameter (in): 14

Width (in): 0.81

Vane Count: 36 V

Design Type: SRP-BLK

Bedded: No

Dynamically Balanced: Yes

Rotor Hats

Hat - Part No: 170-13927

Type: Big Brake Hat - Flared Bell

Material: Aluminum

Finish Color: Black E-Coat

Hat Offset Dimension (in): 1.2

Bolt Circle 1: 5 x 4.50

Stud Diameter - BC 1: 0.63

Stud Diameter - BC 2: 0

Stud Diameter - BC 3: 0

Vehicle Fitments:
