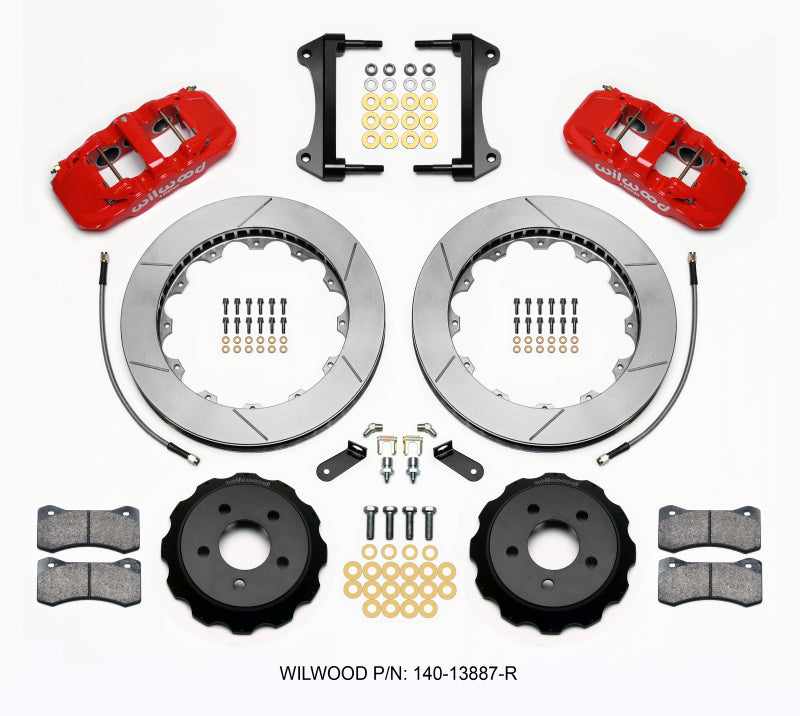

Wilwood AERO6 Front Hat Kit, 15.00, Red, 2015-Up Mustang w/Lines

SKU: 0XCKQ | MPN:  140-13887-R
In stock
Sale price$3,435.31 USD



Front Brake Kit - 140-13887-R

AERO6 Big Brake Front Brake Kit

AERO6 calipers were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. For cars, it's the biggest of the big providing big brake performance for show and dual purpose street and track vehicles. For trucks and SUV's, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. Directional staggered vane 14.00" to 15.00"rotors provide maximum cooling for sustained high heat durability.

Kit Summary


Spindle Type: Factory Disc Spindle
Mount Type: Radial
Caliper Type: 6 - Red Powder Coat
Rotor Diameter: 15
Min Wheel Diameter Req'd*: 19
*This Brake Kit may fit 19-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
Compatible Vehicles for this Brake Kit
BRAKE KIT:   AERO6 Big Brake Front Brake Kit
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Ford

Note: Kit may fit other vehicles, call Wilwood Sales?Tech Support at (805) 388-1188 for more information.
Caution
Caution THIS BRAKE KIT HAS AN HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fenderby this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.
Calipers
Left Hand - Part No: 120-13294-RD
Right Hand - Part No: 120-13293-RD
Type: AERO6
Finish Color: Red Powder Coat
Piston Count: 6
Piston Area (In²): 5.40
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 6617
Brake Pad Area (In²): 11.1
Brake Pad Volume (In³): 5.2
Pad Compound: BP-20
AERO6 Caliper - Red Powder Coat
Rotors
Left Hand - Part No: 160-13471
Right Hand - Part No: 160-13470
Type: GT 60 Curved Vane
Style: GT Slotted
Surface Finish: Plain
Material: Spec-37 Iron
Outside Diameter (in): 15
Width (in): 1.25
Vane Count: 60 CV
Design Type: GT
Bedded: No
Dynamically Balanced: Yes
GT 60 Curved Vane - Spec-37 Iron - Plain
Rotor Hats
Hat - Part No: 170-13926
Type: Big Brake Hat - Flared Bell
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 1.38
Bolt Circle 1: 5 x 4.50
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 0.63
Stud Diameter - BC 2: 0
Stud Diameter - BC 3: 0
Big Brake Hat - Flared Bell - Aluminum - Black E-Coat

Caliper Parts
O-ring Kit: 130-3084
Replacement Dustboot: N-A
Replacement Piston 1: 200-7531
Replacement Piston 2: 200-7516
Replacement Piston 3: 200-7516
Replacement Piston 4: N-A
CrossOver O-Ring Kit: N-A
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5876
Wear Plate - Right Hand: 300-5876
Pad Retainer: N-A
Bleed Screw Kit: 220-0627


Vehicle Fitments:

Year Make Model Submodel
2015 - 2016 Ford Mustang Base
2015 Ford Mustang GT 50 Years Limited Edition
2015 - 2017 Ford Mustang Shelby GT350R, GT, EcoBoost Premium, GT Premium, EcoBoost, Shelby GT350, V6
2017 Ford Mustang V8
