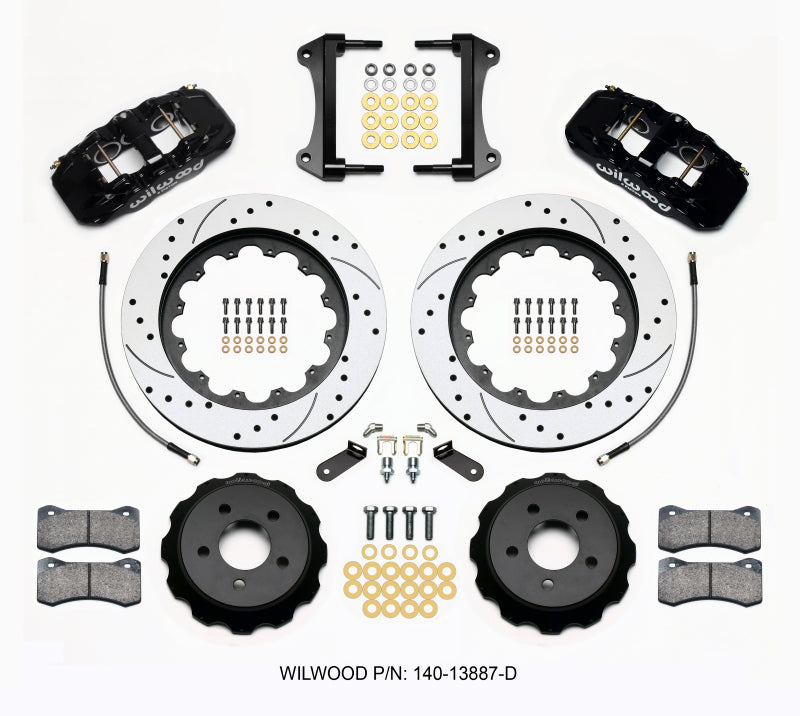

Wilwood Kit,Front,Mustang,2015-UP,Aero6,15.00 Rotor,SRP,w/Lines

AERO6 Big Brake Front Brake Kit

AERO6 calipers were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. For cars, its the biggest of the big providing big brake performance for show and dual purpose street and track vehicles. For trucks and SUVs, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. Directional staggered vane 14.00 to 15.00rotors provide maximum cooling for sustained high heat durability.

Specifications

Spindle Type: Factory Disc Spindle

Mount Type: Radial

Caliper Type: 6 - Black Powder Coat

Rotor Diameter: 15

Min Wheel Diameter Req'd*: 19

Calipers

Left Hand - Part No: 120-13294-BK

Right Hand - Part No: 120-13293-BK

Type: AERO6

Finish Color: Black Powder Coat

Piston Count: 6

Piston 1 Bore (in): 1.75

Piston 2 Bore (in): 1.38

Piston 3 Bore (in): 1.38

Piston Area (In²): 5.40

Piston Type: Stainless

Mount Type: Radial

Brake Pad Plate: 6617

Brake Pad Area (In²): 11.1

Brake Pad Volume (In³): 5.2

Pad Compound: BP-10

Rotors

Left Hand - Part No: 160-14636-BK

Right Hand - Part No: 160-14635-BK

Type: SRP Drilled Rotor

Style: SRP Drilled & Slotted

Surface Finish: Black Electro Coat

Material: Spec-37 Iron

Outside Diameter (in): 15

Width (in): 1.25

Vane Count: 72 CV

Design Type: SRP-BLK

Bedded: No

Dynamically Balanced: Yes

Rotor Hats

Hat - Part No: 170-13926

Type: Big Brake Hat - Flared Bell

Material: Aluminum

Finish Color: Black E-Coat

Hat Offset Dimension (in): 1.38

Bolt Circle 1: 5 x 4.50

Stud Diameter - BC 1: 0.63

Stud Diameter - BC 2: 0

Stud Diameter - BC 3: 0

Vehicle Fitments:
