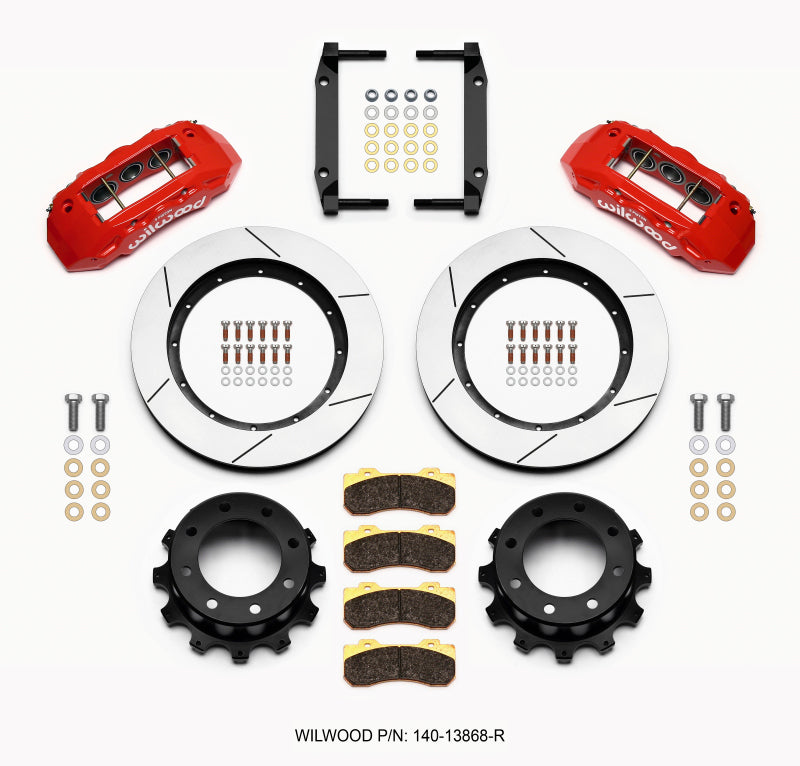

Wilwood TX6R Rear Kit, 15.50", Red, 2005-2012 Ford F250/F350 4WD
Rear Brake Kit - Rear Kit
TX6R Big Brake Truck Rear Brake Kit
Wilwood's Tactical Extreme TX6R Big Brake kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6R radial mount six-piston calipers and massive 15.00" to 16.00" GT-60 directional vane Spec-37 alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation. Braided stainless steel flex lines will need to be purchased for some applications.
Specifications
| Rear End Axle: | OEM |
| Axle Offset: | 0 |
| Mount Type: | Radial |
| Caliper Type: | 6 - Red Powder Coat |
| Rotor Diameter: | 15.5 |
| Min Wheel Diameter Req'd*: | 20 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-13818-RD |
| Right Hand - Part No: | 120-13817-RD |
| Type: | TX6R |
| Finish Color: | Red Powder Coat |
| Piston Count: | 6 |
| Piston Area (In²): | 6.52 |
| Piston Type: | Stainless |
| Mount Type: | Radial |
| Brake Pad Plate: | 10120 |
| Brake Pad Area (In²): | 12.69 |
| Brake Pad Volume (In³): | 6.81 |
| Pad Compound: | BP-20 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-13790-GTB |
| Right Hand - Part No: | 160-13789-GTB |
| Type: | GT 60 Curved Vane |
| Style: | GT Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Spec-37 Iron |
| Outside Diameter (in): | 15.5 |
| Width (in): | 1.38 |
| Vane Count: | 60 CV |
| Design Type: | GT-BLK |
| Bedded: | No |
| Dynamically Balanced: | Yes |
| Rotor Hats | |
|---|---|
| Hat - Part No: | 170-15066 |
| Type: | Parking Brake Hat - Truck |
| Material: | Iron |
| Finish Color: | Black E-Coat |
| Hat Offset Dimension (in): | 3.41 |
| Bolt Circle 1: | 8 x 6.69 |
| Stud Diameter - BC 1: | 0 |
| Stud Diameter - BC 2: | 0 |
| Stud Diameter - BC 3: | 0 |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2009 - 2010 | Ford | F-250 Super Duty | Cabela's |
| 2008 - 2012 | Ford | F-250 Super Duty | FX4 |
| 2005 - 2010 | Ford | F-250 Super Duty | Harley-Davidson Edition |
| 2005 - 2012 | Ford | F-250 Super Duty | King Ranch, Lariat, XL, XLT |
| 2010 | Ford | F-350 Super Duty | Cabela's |
| 2008 | Ford | F-350 Super Duty | FX4 |
| 2005 - 2010 | Ford | F-350 Super Duty | Harley-Davidson Edition |
| 2005 - 2012 | Ford | F-350 Super Duty | XLT, King Ranch, XL, Lariat |
Wilwood TX6R Rear Kit, 15.50", Red, 2005-2012 Ford F250/F350 4WD
Sale price$2,813.70 USD
Regular price$3,148.54 USD
