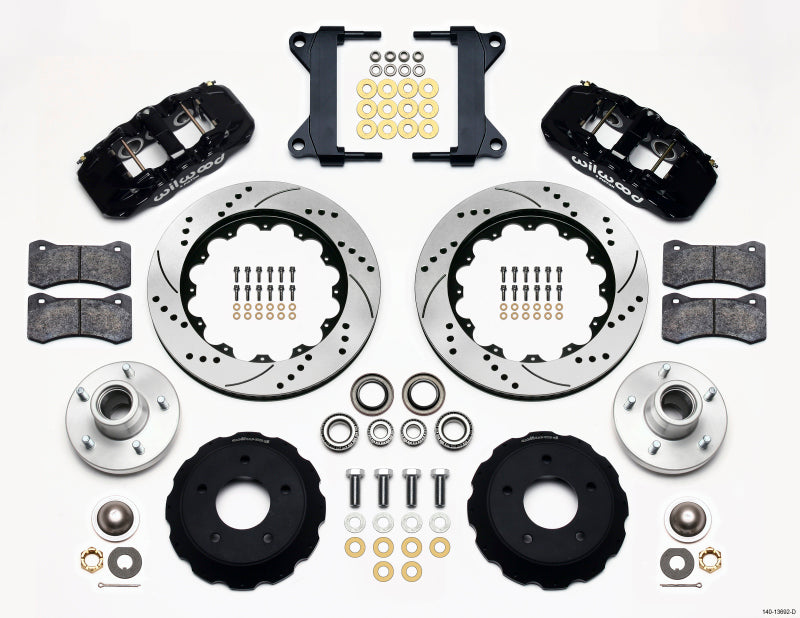

Wilwood Aero6 Front Hub Kit,14.00,Drilled Chevy C-10 60-87 CPP Drop Spindle
AERO6 Big Brake Front Brake Kit
AERO6 calipers were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. For cars, its the biggest of the big providing big brake performance for show and dual purpose street and track vehicles. For trucks and SUVs, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. Directional staggered vane 14.00 to 14.25rotors provide maximum cooling for sustained high heat durability.
Specifications
Spindle Type: Drop Spindle
Mount Type: Radial
Caliper Type: 6 - Black Powder Coat
Rotor Diameter: 14
Min Wheel Diameter Req'd*: 18
Calipers
Left Hand - Part No: 120-13290-BK
Right Hand - Part No: 120-13289-BK
Type: Aero6
Finish Color: Black Powder Coat
Piston Count: 6
Piston 1 Bore (in): 1.62
Piston 2 Bore (in): 1.12
Piston 3 Bore (in): 1.12
Piston Area (In²): 4.04
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 6617
Brake Pad Area (In²): 11.1
Brake Pad Volume (In³): 5.2
Pad Compound: BP-10
Rotors
Left Hand - Part No: 160-8397-BK
Right Hand - Part No: 160-8396-BK
Type: SRP Drilled Rotor
Style: SRP Drilled & Slotted
Surface Finish: Black Electro Coat
Material: Spec-37 Iron
Outside Diameter (in): 14
Width (in): 1.25
Vane Count: 72 CV
Design Type: SRP-BLK
Bedded: No
Dynamically Balanced: Yes
Rotor Hats
Hat - Part No: 170-10753
Type: Big Brake Hat - Flared Bell
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 1.62
Bolt Circle 1: 5 x 4.75
Bolt Circle 2: 5 x 5.00
Stud Diameter - BC 1: 0.52
Stud Diameter - BC 2: 0.52
Stud Diameter - BC 3: 0
Hubs
Hub - Part No: 270-13217
Type: Hub - Hat Mount
Material: Aluminum
Finish Color: Bare
Mount Style: Hat
Bolt Circle 1: 5 x 4.75
Bolt Circle 2: 5 x 5.00
Stud Diameter - BC 1: 1/2-20
Stud Diameter - BC 2: 1/2-20
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1978 - 1980 | Chevrolet | C10 | Big Ten |
| 1975 - 1981 | Chevrolet | C10 | Cheyenne |
| 1975 - 1980 | Chevrolet | C10 | Custom Deluxe |
| 1981 | Chevrolet | C10 | Deluxe |
| 1975 - 1986 | Chevrolet | C10 | Silverado, Scottsdale, Custom |
| 1981 - 1986 | Chevrolet | C10 Suburban | Custom |
| 1975 - 1980 | Chevrolet | C10 Suburban | Custom Deluxe |
| 1981 | Chevrolet | C10 Suburban | Deluxe |
| 1975 - 1986 | Chevrolet | C10 Suburban | Scottsdale, Silverado |
| 1987 | Chevrolet | R10 | Silverado, Custom Deluxe, Scottsdale |
| 1987 | Chevrolet | R10 Suburban | Custom Deluxe, Silverado, Scottsdale |
| 1977 - 1978 | GMC | C15 | Heavy Half |
| 1977 | GMC | C15 | Indy Hauler |
| 1975 - 1978 | GMC | C15 | Sierra Classic, Sierra Grande, Base, High Sierra |
| 1978 | GMC | C15 | Street Coupe |
| 1975 - 1978 | GMC | C15 Suburban | Sierra Grande, High Sierra, Sierra Classic, Base |
| 1979 - 1980 | GMC | C1500 | Heavy Half |
| 1979 - 1986 | GMC | C1500 | High Sierra, Base, Sierra Classic |
| 1979 - 1982 | GMC | C1500 | Street Coupe, Sierra Grande |
| 1979 - 1986 | GMC | C1500 Suburban | Sierra Classic, Base, High Sierra |
| 1979 - 1982 | GMC | C1500 Suburban | Sierra Grande |
| 1975 - 1984 | GMC | Jimmy | Sierra Classic, High Sierra, Base |
| 1975 - 1982 | GMC | Jimmy | Sierra Grande |
| 1978 - 1982 | GMC | Jimmy | Street Coupe |
| 1987 | GMC | R1500 | Base, Sierra Classic, High Sierra |
